Bulletin TI-H2PD-L1466
Technical
Information
!
!
Bulletin TI-H2PD-L1466
Installation, Operation, and Maintenance Manual

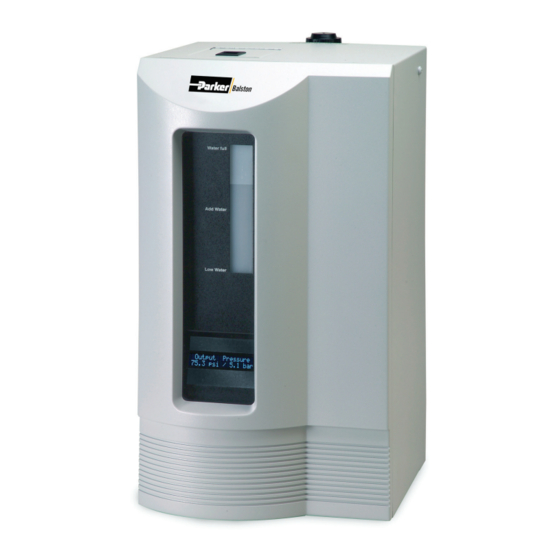

VWR 89209-862 and 89209-864
Hydrogen Generators

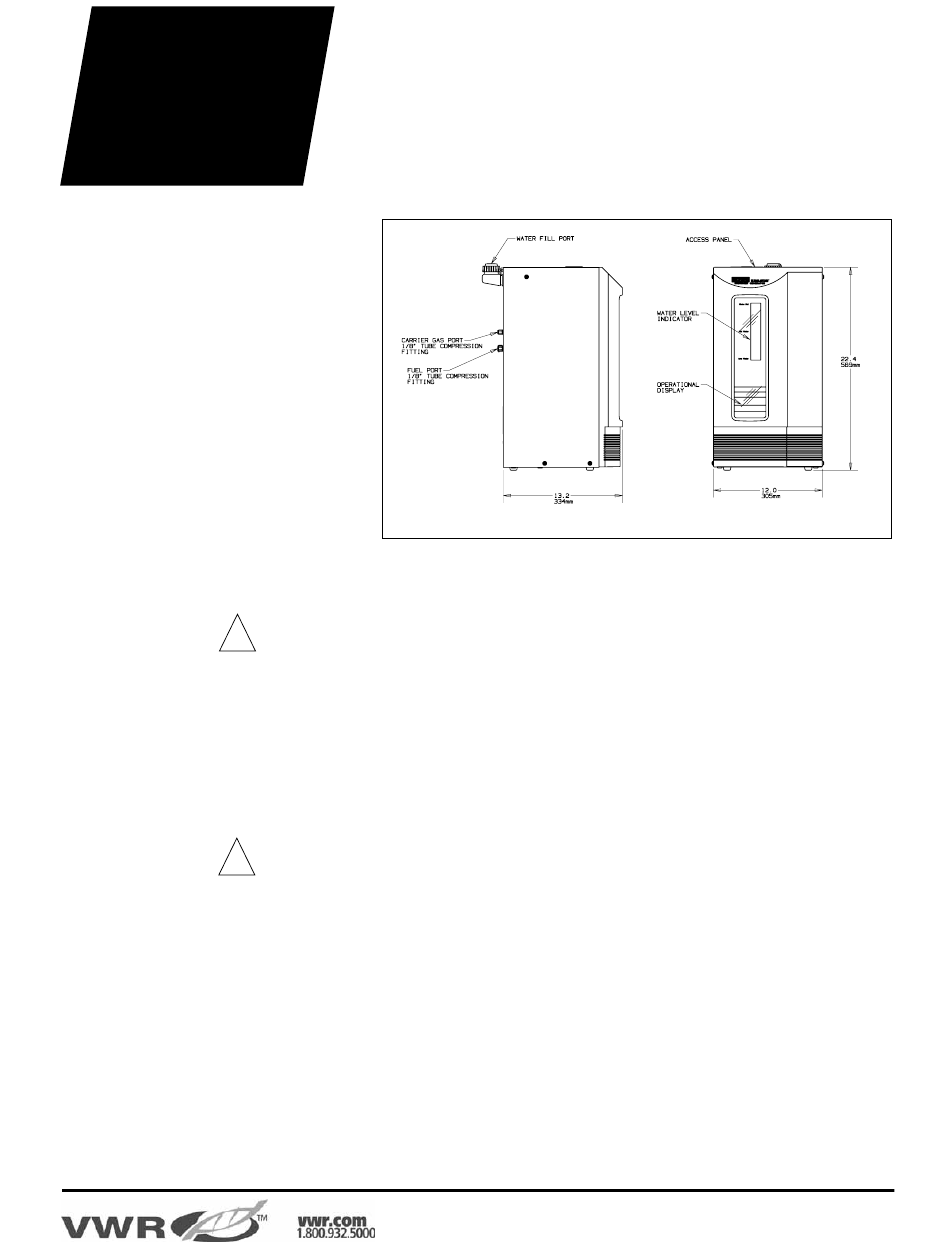

Figure 1 Overall Dimensions
WARNING: This product generates hydrogen gas. If hydrogen is contained and com-
bined with oxygen and an ignition source, it can create an explosion. While normal use
of this product would not create an explosion hazard, care must always be taken when
using hydrogen. Failure to operate this product in accordance with instructions set
forth in this manual can create a hazardous situation.
Do not use a hydrogen gas storage vessel in conjunction with the hydrogen
generator. Stored quantities of hydrogen pose an explosion hazard.
Normal precautions for any hydrogen supply should be taken when using the
hydrogen generator. Do NoT uSe IN A SeAleD oR uNveNTeD Room.
Do NoT uSe AN oPeN FlAme oR oTHeR IGNITIoN SouRCe WITHIN 10
INCHeS (25cm) oF THe oXYGeN veNT!
CAuTIoN: THIS PRoDuCT IS SHelF lIFe SeNSITIve. Do NoT SToRe FoR moRe
THAN 6 moNTHS PRIoR To INSTAllATIoN AND oPeRATIoN.
These instructions must be thoroughly read and understood before installing and oper-
ating the vWR Hydrogen Generator. Follow the safety standards for handling hydro-
gen gas as set forth by the National Fire Protection Agency (NFPA) Standard 50A, the
Compressed Gas Association (CGA) Pamphlet G15, oSHA Regulation 29CFR-1910.103,
and other safety governing bodies. modifications made to this unit will void the warran-
ty. Failure to operate this product in accordance with the instructions set forth in this
manual and by other safety governing bodies will void the safety certification of this
product. If you have any questions or concerns, please call the Technical Services
Department at 800-932-5000, 8Am to 5Pm eastern Time (North America only). For other
locations, please contact your local representative.
Installation, Operation, and Maintenance
VWR Hydrogen Generators
Right Side View
1
Front View
Bulletin TI-H2PD-L1466
VWR Model 89209-862
and 89209-864 Hydrogen
Generators

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 89209-862 and is the answer not in the manual?

Questions and answers

Summary of Contents for VWR 89209-862

  • Page 1 THAN 6 moNTHS PRIoR To INSTAllATIoN AND oPeRATIoN. These instructions must be thoroughly read and understood before installing and oper- ating the vWR Hydrogen Generator. Follow the safety standards for handling hydro- gen gas as set forth by the National Fire Protection Agency (NFPA) Standard 50A, the Compressed Gas Association (CGA) Pamphlet G15, oSHA Regulation 29CFR-1910.103,...
  • Page 2: General Description

    The control circuit adjusts the electrical current to the cell as needed to maintain the hydrogen set pressure. 1 The purity of the hydrogen gas produced by the VWR Hydrogen Generator is in excess of 99.99998%. Bulletin TI-H2PD-L1466...
  • Page 3 VWR Hydrogen Generators Figure 2 - Flow Schematic language/Pressure The VWR Hydrogen Generators have a configurable display on the front panel. Both lan- units Selection guage and pressure units can be selected by the user, by pressing the language/Pressure unit Select button located under the top access panel as shown in figure 4. To configure the...
  • Page 4: Startup Screen

    RECOMMENDED LEVEL. 15.6 psi NO POWER TO CELL. AUDIBLE ALARM. LIQUID DETECTED IN Check Cell HYDROGEN STREAM. HYDROGEN OUTPUT 12.5 psi VALVE CLOSED. AUDIBLE ALARM. Figure 3 - Front Panel Display Bulletin TI-H2PD-L1466 VWR Model 89209-862 and 89209-864 Hydrogen Generators...
  • Page 5: Control Circuit

    “Low Water” level mark. The VWR Hydrogen Generator will run for 8-10 days (depending on ambient temperature, flow demand, etc.) at maximum flow on a full water bottle, before the “Add Water”...
  • Page 6: Installation

    (See Shutdown section of this manual.) utilities Power - The VWR Hydrogen Generator may be operated by a 120 VAC or a 230 VAC, 50/60 Hz power supply. (Note: main supply line voltage must be within ±10% of the nominal rated voltage for the generator.) See product label on the rear panel of the hydrogen gen-...
  • Page 7: Operation

    To ensure safe operation of and prevent potential damage to the vWR Hydrogen Generator, do not vent multiple generators in a common line to an exhaust hood. Pipe each generator vent separately to the exhaust hood.
  • Page 8 If the generator fails as a result of contamination, the warranty will be void. Connect the generator to its electrical supply and turn the power switch on. Bulletin TI-H2PD-L1466 VWR Model 89209-862 and 89209-864 Hydrogen Generators...
  • Page 9: Filling The Water Tank

    2. Check to make sure that the water level in each tank in the generator is initially steady at the "FULL" line. Approximately four liters of water are required to completely fill the generator. Figure 6- External Water Fittings for Gravity or Pressure Feed Bulletin TI-H2PD-L1466 VWR Model 89209-862 and 89209-864 Hydrogen Generators...
  • Page 10: Temporary Shutdown

    Temporary Shutdown To maximize the life of the palladium membrane, the VWR Hydrogen Generator should be run continuously. If the hydrogen generator must be shut down for short periods of time (e.g., overnight), leave the power switch in the “on” position, and move the hydrogen output switch to the “OFF”...
  • Page 11: Maintenance

    Term Shutdown/ If the VWR Hydrogen Generator is being shut down for shipment or for storage for an extend- Product Shipment ed period, then the system must be drained and plugged. Instructions for long term shutdown and plugs may be requested from VWR.
  • Page 12: Fuse Replacement

    Cell AND voID THe WARRANTY. The procedure for changing the electrolyte is as follows: Turn off the VWR Hydrogen Generator, disconnect it from the power supply, and allow it to cool for four hours, preferably overnight. Remove the back panel from the unit by removing the four panel screws.
  • Page 13: Principal Specifications

    Installation, Operation, and Maintenance VWR Hydrogen Generators Replacement Parts Electrolyte Solution 920071 Fuse See Specifications Table Principal Specifications Model Number 89209-862 Hydrogen Generator 89209-864 Hydrogen Generator CSA Certification Standard CAN/CSA C22.2 No.1010.1-92 IEC Certification Standard IEC 1010-1/EN61010-1 IEC 1010 Installation Category Category II IEC 1010 Pollution Degree...
  • Page 14: Troubleshooting And Service

    The serial number for the unit is attached to the back panel. For your own records, and in case service is required, please record the following: DATE IN SERVICE SERIAL NO. Please have the serial number available when calling for assistance. Bulletin TI-H2PD-L1466 VWR Model 89209-862 and 89209-864 Hydrogen Generators...
  • Page 15 Installation, Operation, and Maintenance VWR Hydrogen Generators Explanation of Warning Symbols Symbol Description Caution, refer to accompanying documents for explanation. Refer to the caution/warning note indicated for explanation. Caution, risk of electric shock. Bulletin TI-H2PD-L1466 VWR Model 89209-862 and 89209-864 Hydrogen Generators...
  • Page 16 VWR International 1310 Goshen Parkway West Chester, PA 19380 Copyright©VWR International, Inc. All Rights Reserved. Printed in U.S.A. March 2012 Bulletin TI-H2PD-L1466...
