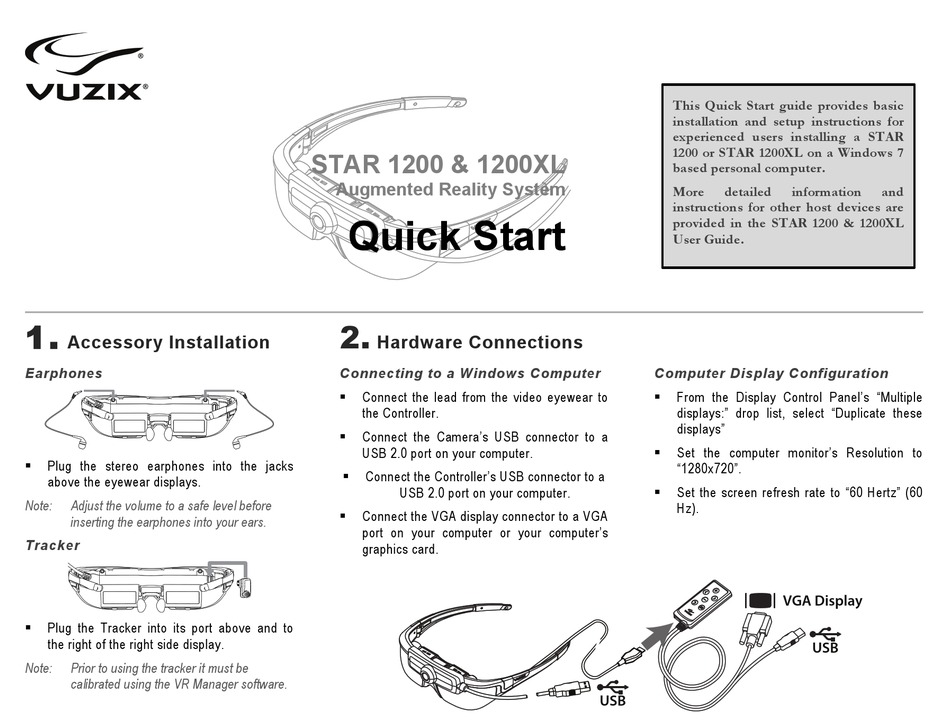

Vuzix Star 1200 Quick Start

1 .
Accessory Installation
Earphones
Plug the stereo earphones into the jacks
§
above the eyewear displays.
Note: Adjust the volume to a safe level before
inserting the earphones into your ears.
Tracker
§ Plug the Tracker into its port above and to
the right of the right side display.
Note: Prior to using the tracker it must be
calibrated using the VR Manager software.
STAR 1200 & 1200XL
Augmented Reality System

Quick Start

2.
Hardware Connections
Connecting to a Windows Computer
§ Connect the lead from the video eyewear to
the Controller.
Connect the Camera's USB connector to a
§
USB 2.0 port on your computer.
Connect the Controller's USB connector to a
§
USB 2.0 port on your computer.
Connect the VGA display connector to a VGA
§
port on your computer or your computer's
graphics card.
This Quick Start guide provides basic
installation and setup instructions for
experienced users installing a STAR
1200 or STAR 1200XL on a Windows 7
based personal computer.
More detailed
instructions for other host devices are
provided in the STAR 1200 & 1200XL
User Guide.
Computer Display Configuration
From the Display Control Panel's "Multiple
§
displays:" drop list, select "Duplicate these
displays"
Set the computer monitor's Resolution to
§
"1280x720".
Set the screen refresh rate to "60 Hertz" (60
§
Hz).
USB
information and
VGA Display
USB
