Installation instructions
4

Installation

Installation description and illustrations with internal rosette!
4.1

Tools required

• Power drill with Ø7.2 mm drill bit
• Philips screwdriver
ATTENTION
A lock that is already in place can be damaged.
To avoid damage, remove the lock before starting to drill.
4.2

Drilling the fastening holes

Preparing the door
1. Remove the existing furniture or
rosette fittings.
Mark the drill holes

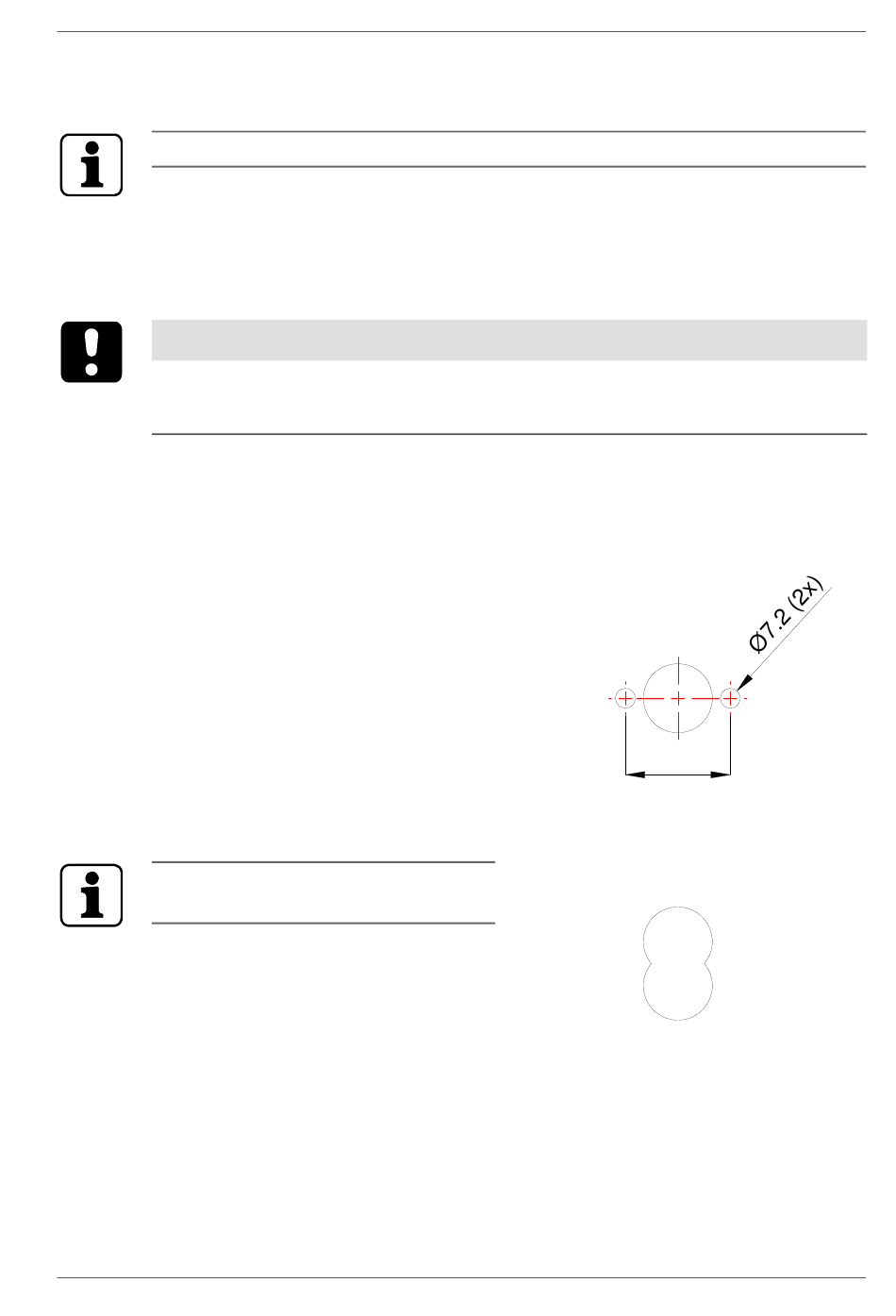

2. Mark the drill holes (if not in
place) according to the drawing
on the outside and/or inside of
the door.
3. Close the door lock.
If available the 2720-25 drill jig can
also be used!
Drilling fixing holes
4. If there are no rosette drill holes,
drill the fixing holes with a Ø7.2
mm drill from both sides of the
door (e.g. according to DIN 18255
standard).
5. After drilling, clean the mortise
and refit the door lock.
