Control 4 C4-SKCB2 Installation Manual page 2

7 Follow the appropriate instructions for attaching the keypad:

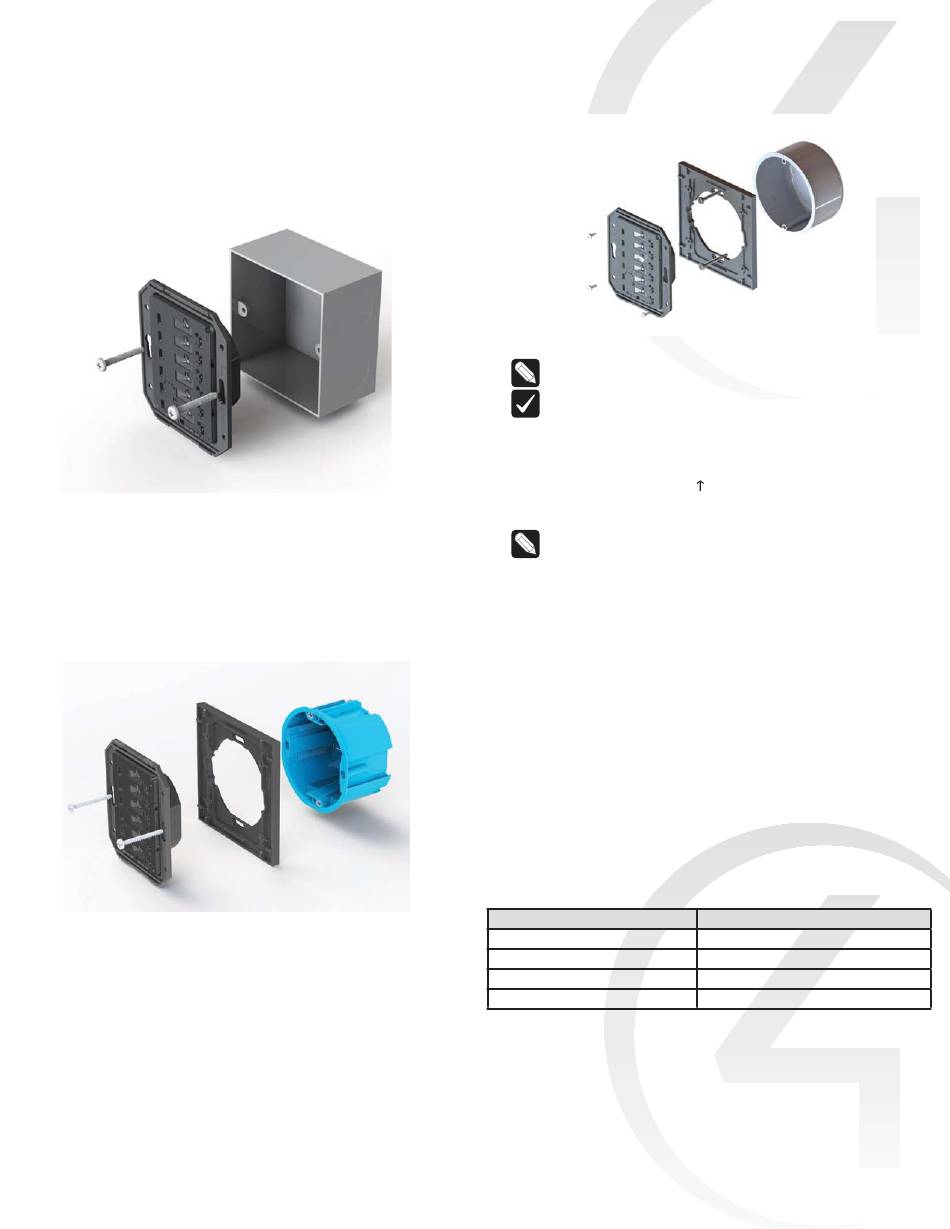

To install in a UK-style square wall box:
a Align the keypad to the wall box as shown in Figure 1 (note the UP
orientation arrow on the keypad), then fasten the keypad to the wall box
using the included M3.5 machine screws.
Figure 2: Square wall box installation
To install in an EU-style round wall box with mounting screws on the left
and right:
a Align the keypad and the trim ring to the wall box as shown in Figure 3
(note the UP orientation arrow on the trim ring and keypad).
b Fasten the keypad and trim ring to the wall box using either the included
M3.0 thread cutting screws or the screws that came pre-installed in the
wall box. Note that some pre-installed screws may not have large enough
screw heads to securely hold the keypad.
Figure 3: Round wall box installation—horizontal screw holes
To install in an EU-style round wall box with mounting screws on the top
and bottom:
a Align the trim ring to the wall box as shown in Figure 4 (observe the UP
orientation arrow on the trim ring).
b Fasten the trim ring to the wall box using either the included M3.0 thread
cutting screws or the screws that came pre-installed in the wall box. Note
that some pre-installed screws may not have large enough screw heads to
securely hold the trim ring.
c Attach the keypad to the trim ring with four M2.2 x 6 mm thread-forming
screws included with the trim ring as shown in Figure 4.
Figure 4: Round wall box installation—vertical screw holes
Note: For instructions on installing in a dual EU-style wall box with a
dual trim ring, refer to the Dual Trim Ring Installation Guide.
IMPORTANT! Tighten the screws until the device or trim ring is flush
with the wall surface, but no further. Overtightening can warp the
keypad and cause it to malfunction.
8 Install the buttons (sold separately) following the instructions in the Keypad
Buttons Installation Guide ( ctrl4.co/butn
9 Install the Control4 faceplate (sold separately) by placing the top of the
faceplate on the device (note the
the faceplate) and firmly pressing the bottom until the faceplate snaps into
place against the wall.
Note: To remove the faceplate, use a flathead screwdriver. Insert the
screwdriver into the small gap on the bottom between the faceplate
and the device. Twist the screwdriver blade to pop the faceplate off.
10 Ensure that the Bus Power Supply is installed correctly and powered
on. For instructions, see the Bus Power Supply, 48V Installation Guide
( ctrl4.co/bps48 ).
Wiring diagrams
For bus wiring details, refer to the Keypad Bus Wiring Guide.
Operation and configuration
On initial power up, all status LEDs on the keypad will illuminate blue, indicating
that the device has power. Until the keypad has been configured into a Control4
system, it will not control any loads. To set up this keypad for use with a Control4
system, refer to the Composer Pro User Guide (
Button tap sequences
The button tap sequences are defined in the table below. Button tap sequences
that require a single button should use the top-most button installed on the
keypad. Button tap sequences requiring two buttons should use the top-most and
bottom-most (or bottom-left) buttons installed on the keypad.
Function
Identify
Reboot
Factory reset
Unidentify
).
["up"] orientation arrow on the inside of
ctrl4.co/cpro-ug ).
Button sequence
4
15
9-4-9
13-4-13
