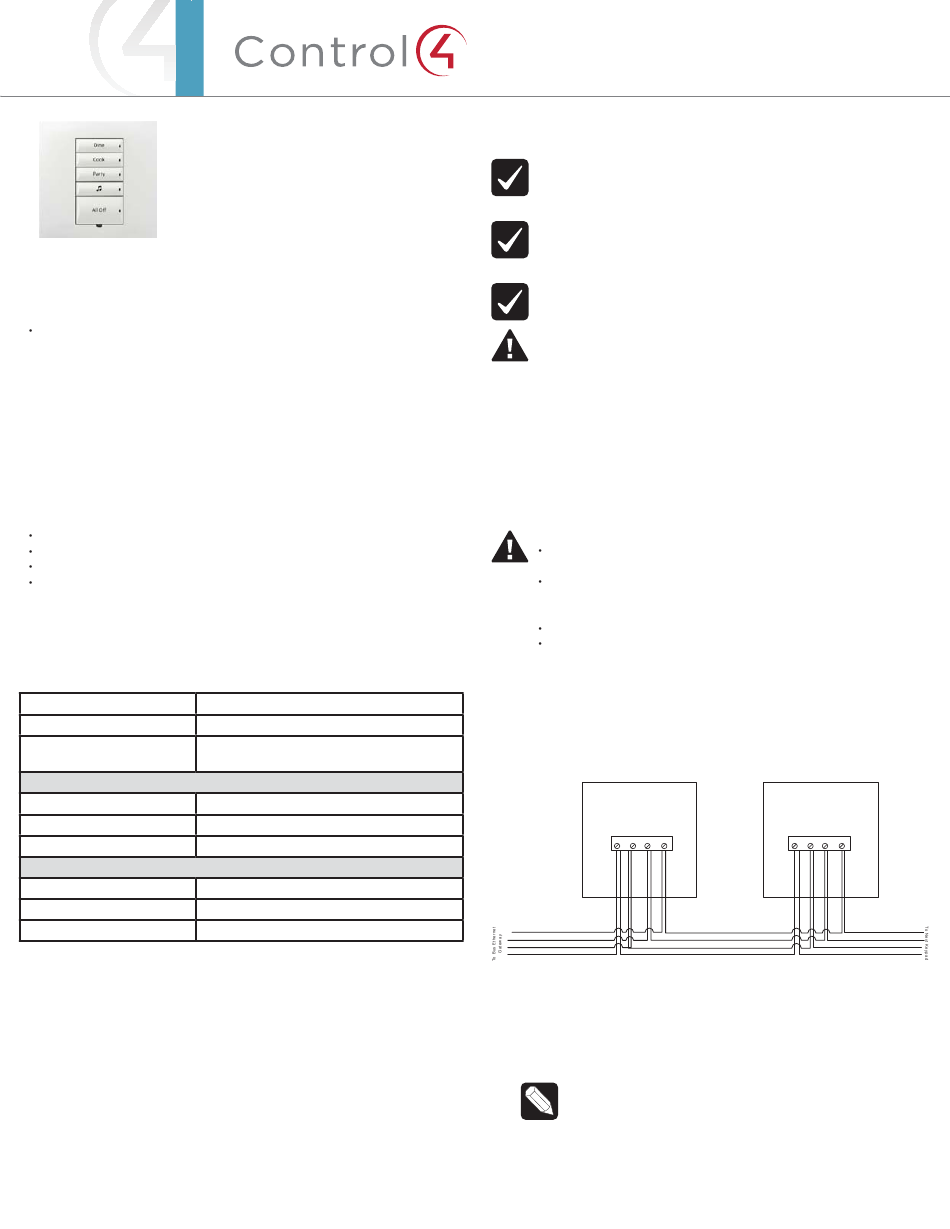

Control 4 C4-SKCB-XX Installation Manual

Supported Model
C4-SKCB-XX Square Configurable Wired Keypad
Introduction
The Control4® Square Configurable Wired Keypad is intended for use in a Control4
system. It installs in a standard UK square wallbox. Communication to the Control4
system is via RS-485 protocol and wiring. For RS-485 wiring topologies, refer to
the document Keypad Bus Wiring Guide.
Box Contents
Square Configurable Wired Keypad
Keycap Button Kit
Pluggable Terminal Block
Warranty Card
Specifications
The specifications are described below.
Model Number
Power Requirements
Power Consumption
Operational Temperature
Humidity
Storage
Control Communications
Weight
Shipping Weight
Square
Configurable
Wired Keypad
Installation Guide
C4-SKCB-XX
48VDC
Maximum 48VDC 1.2W
Minimum 48VDC 0.7W
Environmental
32˚F - 104˚F (0˚C - 40˚C)
5% to 95% non-condensing
-4˚F - 158˚F (-20˚C - 70˚C)
Miscellaneous
RS-485
0.1 lb. (0.045 kg)
0.3 lb. (0.14 kg)
™
Warnings and Considerations
IMPORTANT! Using this product in a manner other than outlined in this
document voids your warranty. Further, Control4 is NOT liable for any
damage incurred with the misuse of this product. See "Troubleshooting."
IMPORTANT! Do NOT use a power screwdriver to install this device. If you
do, you may overtighten the screws and strip them. Also, overtightening
the screws may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components.
Handle and install with care!
CAUTION! Do not exceed the number of keypads per power supply
as indicated in the Keypad Bus Wiring Guide. Exceeding the maximum
number of keypads will result in overheating the wires and/or failed
devices.
Ne pas dépasser le nombre de claviers par bloc
ATTENTION!
d'alimentation comme indiqué dans le Guide de câblage du clavier. Si vous
dépasser le nombre maximal de claviers les fils et / ou dispositifs pourrai
surchauffer.
Installation Instructions
CAUTION! When wiring the keypad, make sure that either:
The Bus Power Supply is not powered on.
- OR -
The pluggable connector is disconnected from the Bus Power Supply.
ATTENTION! Lors du branchement du clavier, assurez-vous que
Le Bus d'alimentation n'est pas sous tension ou
La prise est déconnecté de l'alimentation.
1 Prepare the cable for termination by stripping the outer sheath and individual
wires, and then wire into the pluggable terminal block.
2 Wire the keypads as shown below.
Figure 1. Keypad Wiring
KeyPad
V+ D+
3 Fit the wires back into the wallbox.
4 Align the keypad to the wallbox (observe the orientation direction arrow),
then fasten it with the included screws.
IMPORTANT! Tighten the screws until the device is flush with the
wall surface, but no further. Overtightening can warp the keypad and
cause it to malfunction.
KeyPad
D- GND V+ D+ D- GND
