Quick Installation Guide
Doc. no.: 9.17.083E Date: 05-07-2018
Starting up the EL-FLOW® Prestige in 10 steps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-FLOW Prestige and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BRONKHORST EL-FLOW Prestige

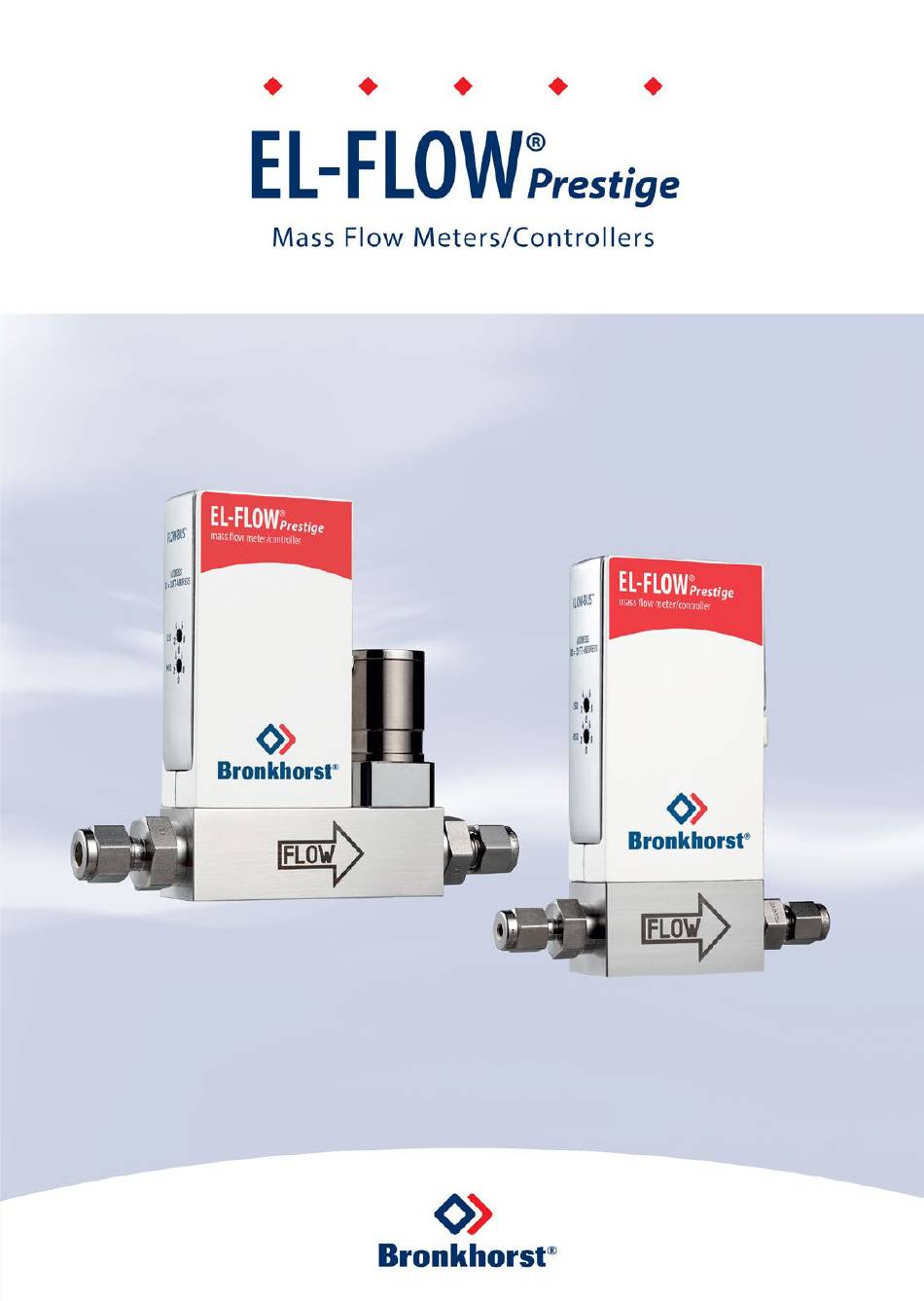

  • Page 1 Quick Installation Guide Doc. no.: 9.17.083E Date: 05-07-2018 Starting up the EL-FLOW® Prestige in 10 steps...

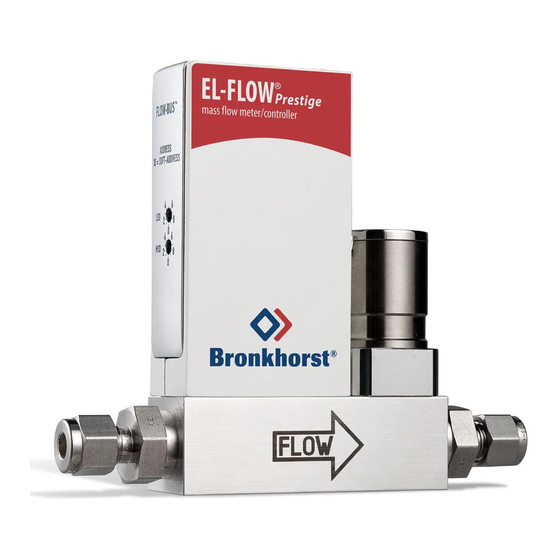

  • Page 2 SCOPE OF THIS GUIDE EL-FLOW® Prestige is the next generation of Bronkhorst® Mass Flow Meters/ Controllers, using the latest, highly accurate, thermal bypass sensor technology and featuring excellent control characteristics. Thanks to the advanced sensor technology in combination with a state-of-the-art printed circuit board, the instruments feature improved long term stability as well as an unsurpassed temperature stability.
  • Page 3 Connecting the instrument with a RS232 cable or an RS232 cable with a USB to RS232 converter to a PC enables use of the (free) Bronkhorst® software for Windows, such as FlowDDE and FlowPlot. Make sure that the instrument label indicates RS232 settings and apply the proper baud rate settings.
  • Page 4 Zeroing The zero point of each Bronkhorst® flow meter is factory adjusted. If required the zero point can be re-adjusted over RS232 or with the multifunctional switch. Procedure for zeroing by multifunctional switch:  Warm up and pressurize the system and fill the instrument according to the process conditions.
