System Sensor IM-10 Installation And Maintenance Instructions page 3

The module is shipped in Class B position, remove shunt for Class
A. When operating in Class A, alternate modules are paired together
(+0/+1, +2/+3, +4/+5, +6/+7, +8/+9), resulting in a total of five
modules. For example, if the base address switch is set to 28, then 30,
32, 34 and 36 will be automatically assigned to the modules while 29, 31,
33, 35 and 37 are available to be used for other modules on the SLC. For
Class A and B operation, DO NOT set the lowest address above 90, as the
other modules will be assigned to nonexistent addresses.
4. A shunt is provided to disable a maximum of two unused modules in
Class B operation and one unused module in Class A operation. Modules
are disabled from the highest address and work downward. If two mod-
ules are disabled, the lowest eight addresses will be functional, while the

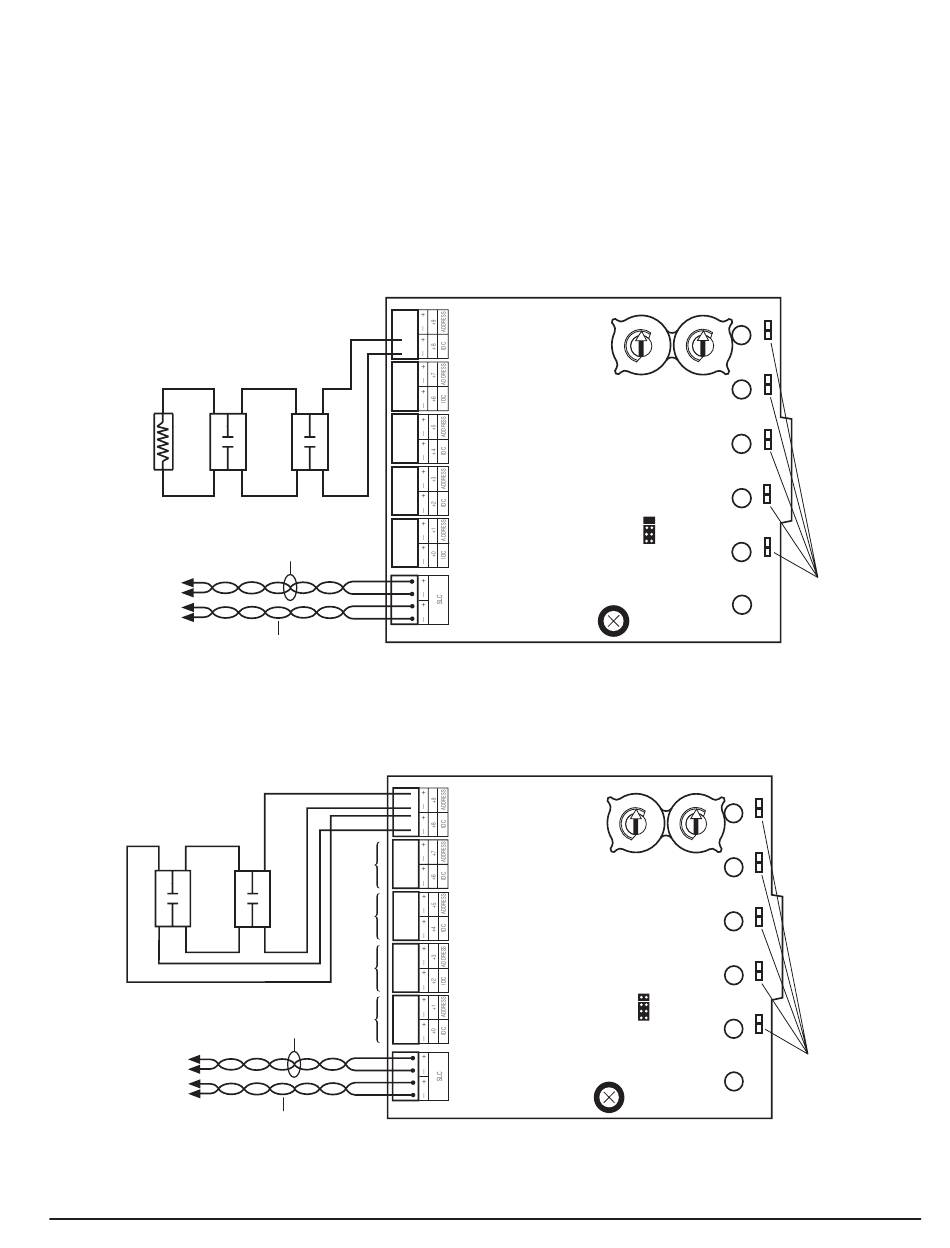

FIGURE 7. TYPICAL INITIATING DEVICE CIRCUIT CONFIGURATION – CLASS B, STYLE B:
CONNECT MODULES TO
LISTED COMPATIBLE
CONTROL PANELS ONLY
47K
EOL
RESISTOR
A2143-00
CLASS B IDC (TYPICAL)
+
FROM PANEL OR
–
PREVIOUS DEVICE
+
TO NEXT
–
DEVICE
SIGNAL LINE CIRCUIT 32 VDC MAX.
TWISTED PAIR IS RECOMMENDED.
NOTE: Any number of UL listed contact closure devices may be used. DO NOT mix fire alarm initiating and supervisory devices on the same initiating device
circuit. Install contact closure devices per manufacturer's installation instructions.
FIGURE 8: TYPICAL FAULT TOLERANT INITIATING DEVICE CIRCUIT CONFIGURATION – CLASS A, STYLE D
CONNECT MODULES TO
LISTED COMPATIBLE
CONTROL PANELS ONLY
CLASS A IDC (TYPICAL)
+
FROM PANEL OR
–
PREVIOUS DEVICE
+
TO NEXT
–
DEVICE
SIGNAL LINE CIRCUIT 32 VDC MAX.
TWISTED PAIR IS RECOMMENDED.
NOTE: Any number of UL listed contact closure devices may be used. DO NOT mix fire alarm initiating and supervisory devices on the same initiating device
circuit. Install contact closure devices per manufacturer's installation instructions.
POWER LIMITED
AND SUPERVISED
IDC 2
IDC 3
IDC 4
IDC 5
POWER LIMITED
AND SUPERVISED
*Remove shunt for Class A operation.
highest two will be disabled. For example, in Class B operation, if the
shunt for Address Disable is placed on "two" and the base switch is set
to 28, the modules will be assigned to 28, 29, 30, 31, 32, 33, 34 and 35
while disabling the highest two positions.
NOTE: Place unused shunts on single pin to store on board for future use.
NOTE: Power must not be applied to the unit when changing functionality
of the shunts.
WIRING NOTES
• Power-limited circuits must employ type FPL, FPLR, or FPLP cable as
required by Article 760 of the NEC.
NOTE: All references to power limited represent "Power Limited (Class 2)".
BASE ADDRESS
6 7 8 9
5
4
3
2
1
0
A/B SLCT
COM LOSS
DISABLE 1
DISABLE 2
BASE ADDRESS
6 7 8 9
5
4
3
2
1
0
A/B SLCT
COM LOSS
DISABLE 1
DISABLE 2
3
6 7 8 9
5
4
3
2
1
0
STATUS
INDICATORS
6 7 8 9
5
4
3
2
1
0
STATUS
INDICATORS
I56-1797-010
C0886-01
C0887-01
