Lifetime 73729 Assembly Instructions Manual

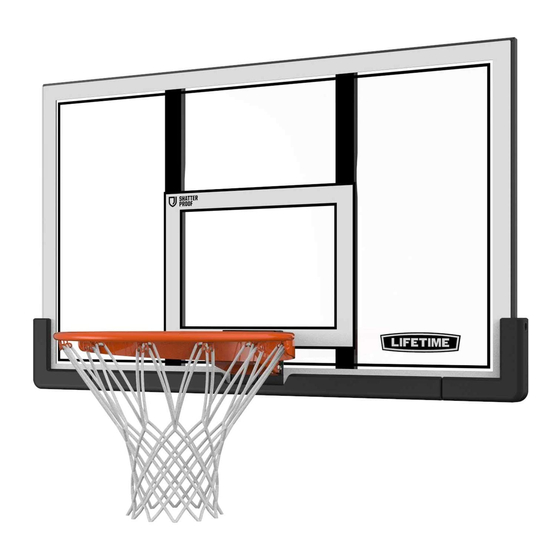

Backboard & rim basketball system
Hide thumbs Also See for 73729:

Advertisement

Quick Links

BACKBOARD & RIM
BASKETBALL SYSTEM
MODEL 73729
• Before you start
Decide where you would like to mount your system.
A mounting kit is required for Roof and Wall
mounts and is available through our Customer
Service Department (see page 9).
• Recruit friends and family
Assembly should take 2 people about 2-3
hours to complete.
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (13 mm)
(2)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
3/8" (10 mm)
7/16" (11 mm)
(1)
(1)
Live Chat:
www.lifetime.com
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(1)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu
*Backboard Brackets (included with
the Lifetime® Universal Mounting
Kit, sold separately) are required to
complete the assembly as instructed
in this manual.

TABLE OF CONTENTS

Icon Legend................................2
Notices....................................2
Mounting the System................9
Registration........................10
Warranty................................11
Model Number: 73729
Product ID:
