MODEL #73729
WARNING
Failure to comply with any of the warnings in
these instructions may result in serious personal
injuries such as cuts, broken bones, nerve
damage, paralysis, brain injury, or death. Failure
to comply may also result in property damage.
Please heed all warnings and cautions. To
ensure your safety, do not attempt to assemble
this system without reading and following all
instructions carefully. Identify and inventory the
parts using the Parts List.
INSTRUCTION #1030954 D
**For U.S. and Canada Customers ONLY:**
IF ASSISTANCE IS NEEDED,
DO NOT CONTACT THE STORE!!!
CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 (800) 225-3865
HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (MST)
Call, or visit our Web site for Saturday hours
**Customers outside the U.S. or Canada, please contact the store.**

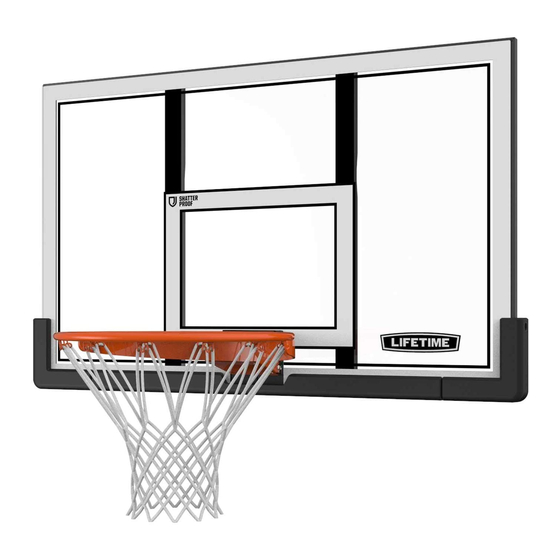

BACKBOARD AND RIM COMBO
ASSEMBLY INSTRUCTIONS AND
OWNER'S MANUAL
**A MINIMUM OF TWO ADULTS ARE
REQUIRED FOR ASSEMBLY**
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
®
www.lifetime.com
4/17/2012
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73729 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 73729

Summary of Contents for Lifetime 73729

  • Page 1 HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (MST) Call, or visit our Web site for Saturday hours **Customers outside the U.S. or Canada, please contact the store.** BACKBOARD AND RIM COMBO MODEL #73729 ASSEMBLY INSTRUCTIONS AND WARNING OWNER’S MANUAL...

  • Page 2: Parts List

    Frame Pad Hardware (HH00700) BS00100 #10 x 7/8 Self Drilling Screw *Not all Hardware will be used. 1. The Backboard can be mounted to any Lifetime Products ® brand pole or most other commercially available poles. If using other than a Lifetime Products ®...

  • Page 3: Before Beginning Assembly

    Maintaining your privacy is our long-standing policy at Lifetime. And you can rest assured that Lifetime will not sell or provide your personal data to other third parties, or allow them to use your The Rim and Backboard Combo kit must be mounted and personal data for their own purposes.
  • Page 4 The U-Bolt (UB) goes through the upper holes in the Backboard. Only hand tighten the Nuts (RH) now. NOTE: The Backboard Brackets shown are Lifetime Products ® Completely tighten the Nuts (RH) from models and are for illustration purposes only. If using Brackets Step 1A.
  • Page 5 Backboard. Only hand tighten the Nuts (RH) now. ® NOTE: The Backboard Brackets shown are Lifetime Products models and are for illustration purposes only. If using Brackets other than ® the Lifetime Products models shown here, refer to the instructions provided with the Brackets.
  • Page 6 Required For This Page: Turn the Backboard over so it faces up. Use the 1/2” socket head from the socket head wrench to press one 1/2” Wrench Push Nut (RD) onto one end of the Axle Slide the end of the Axle (RJ) through the Rim (AA) and the Rim Pivot Bracket (AH). Press the (RJ).
  • Page 7 Required for This Page: Remove the plastic film from the Backboard. Rear view Electric Drill The lip of the Frame Pad overlaps the front of the Backboard. HH00700 Attach the Bottom Frame Pad (AG) first. Align the small line in the back of the Bottom Frame Pad with the seam in the Backboard frame. (10) Use an electric drill to insert the Screws.

  • Page 8: Product Description

    If mounting the Backboard to a roof mount, wall mount or existing pole mount that does not have an extension provided, you must use a Mounting Bracket Kit designed for this purpose. Lifetime Products, Inc. ® offers a Universal Extension Bracket, Model #9594, through our Customer Service Department.
  • Page 9 This warranty is nontransferable and is expressly limited to the repair or replacement of defective basketball equipment. If the equipment is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser. Shipping charges to and from the factory are not covered and are the responsibility of the purchaser.
