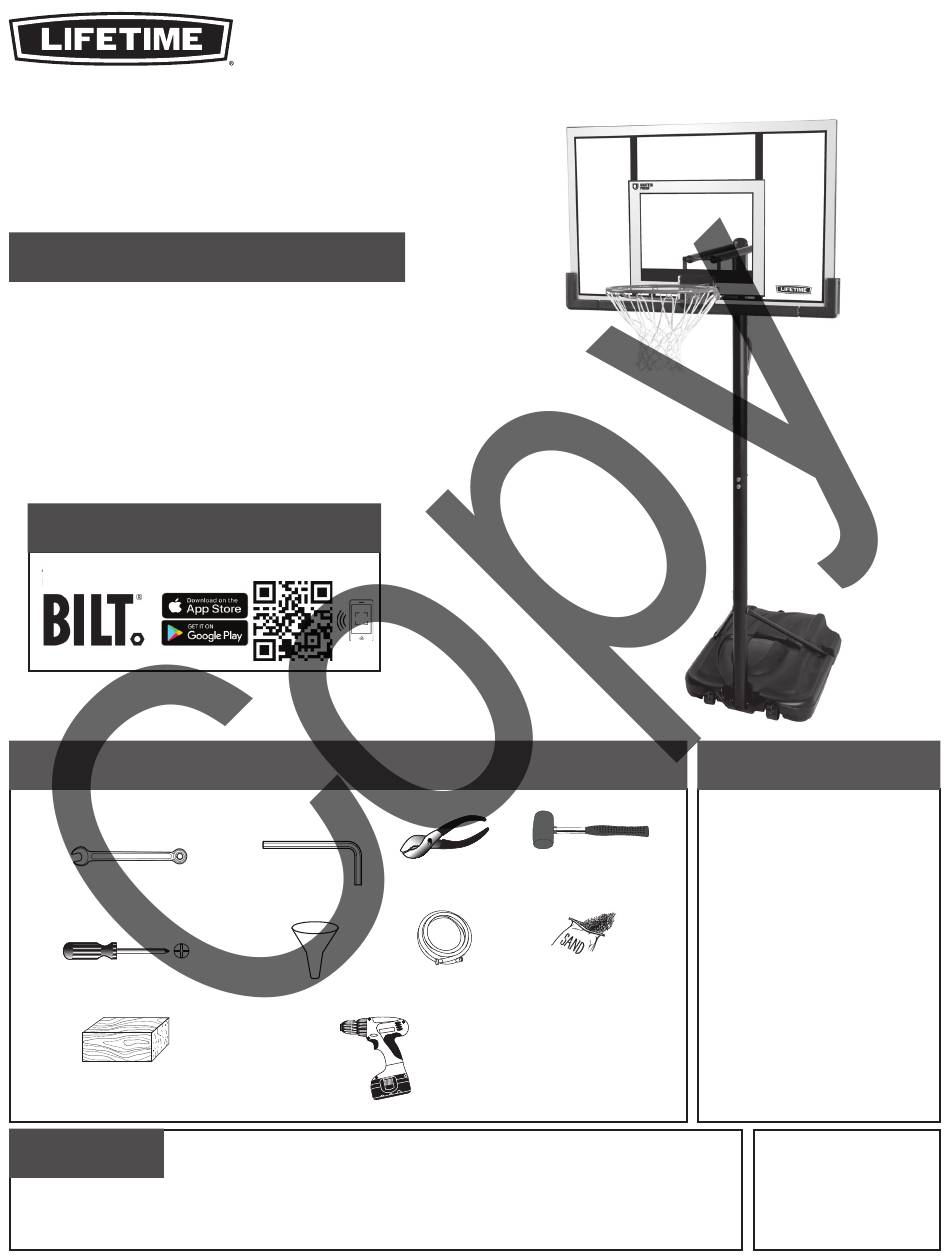

Lifetime ACTION GRIP 1558 Assembly Instructions Manual

Portable basketball system
Hide thumbs

Advertisement

Quick Links

Download this manual
ACTION GRIP
BASKETBALL SYSTEM
MODEL #60091
MODEL 1558
BEFORE ASSEMBLY:
• Prepare the Area
Before you start, decide how you would like to fi ll
your base (sand is recommended, see page 33).
• Recruit Friends and Family
Assembly should take 2 people about 2-3
hours.
GET ASSEMBLY HELP
ASSEMBLE IT WITH THE FREE BILT INTELLIGENT
INSTRUCTIONS APP
IN THE APP, SCAN OR SEARCH #1197963
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (13 mm), 7/16" (11 mm),
9/16" (14 mm), 3/4" (19 mm)
(2)
(1)
(1)
QUESTIONS?
CONTACT LIFETIME
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
PORTABLE
®
3/16" (5 mm)
(incluido)
(2)
(1)
(1)
(1)
(1)
®
CUSTOMER SERVICE:
Live Chat: www.lifetime.com
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(1)
(375 lb)/(170kg)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu
TABLE OF CONTENTS
Icon Legend................................4
Notices....................................5
Pole Assembly............................6
Pole to Base Assembly...............11
Backboard to Rim Assembly.......15
Backboard to Pole Assembly.......19
Parts Identifi er..........................i-iv
Handle Assembly.......................24
Final Assembly..........................31
Maintenance Instructions..........35
Warning Sticker........................36
Registration........................40
Warranty................................41
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 1558
Product ID:
