NI 5762R User Guide and Specifications
The NI 5762 is a two-channel, 250 MS/s, 16-bit high-speed digitizer adapter module designed to work
in conjunction with your NI FlexRIO™ FPGA module. The NI 5762 is available in these two versions:
•
NI 5762 (-01): Single-ended, AC-coupled with a 100 MHz elliptic filter
•
NI 5762 (-02): Single-ended, AC-coupled, ideal for undersampling applications
Read the white labels on the side of your device to determine which version of the NI 5762 you are
using. This document contains signal information and specifications for the NI 5762R, which is
composed of an NI FlexRIO FPGA module and the NI 5762. This document also contains tutorial
sections that demonstrate how to acquire data using a LabVIEW FPGA example VI and how to create
and run your own LabVIEW project with the NI 5762R.
Contents
Electromagnetic Compatibility Guidelines.......................................................................................... 2
How to Use Your NI FlexRIO Documentation Set ............................................................................. 3
Front Panel and Connector Pinouts ..................................................................................................... 4
Block Diagram..................................................................................................................................... 6
NI 5762 Component-Level Intellectual Property (CLIP) .................................................................... 7
Cables................................................................................................................................................... 9
Clocking............................................................................................................................................... 9
Using Your NI 5762R with a LabVIEW FPGA Example VI.............................................................. 9
Creating a LabVIEW Project and Running a VI on an FPGA Target ................................................. 11
Specifications....................................................................................................................................... 15
Where to Go for Support ..................................................................................................................... 24
Appendix: Installing EMI Controls ..................................................................................................... 25
Note
Before configuring your NI 5762R, you must install the appropriate software and hardware.
Refer to the NI FlexRIO FPGA Module Installation Guide and Specifications for installation
instructions. Figure 1 shows an example of a properly connected NI FlexRIO device.
NI FlexRIO
Adapter Module
Note
NI 5762R refers to the combination of your NI 5762 adapter module and your NI FlexRIO
FPGA module. NI 5762 refers to your NI 5762 adapter module only.
NI FlexRIO
+
FPGA Module

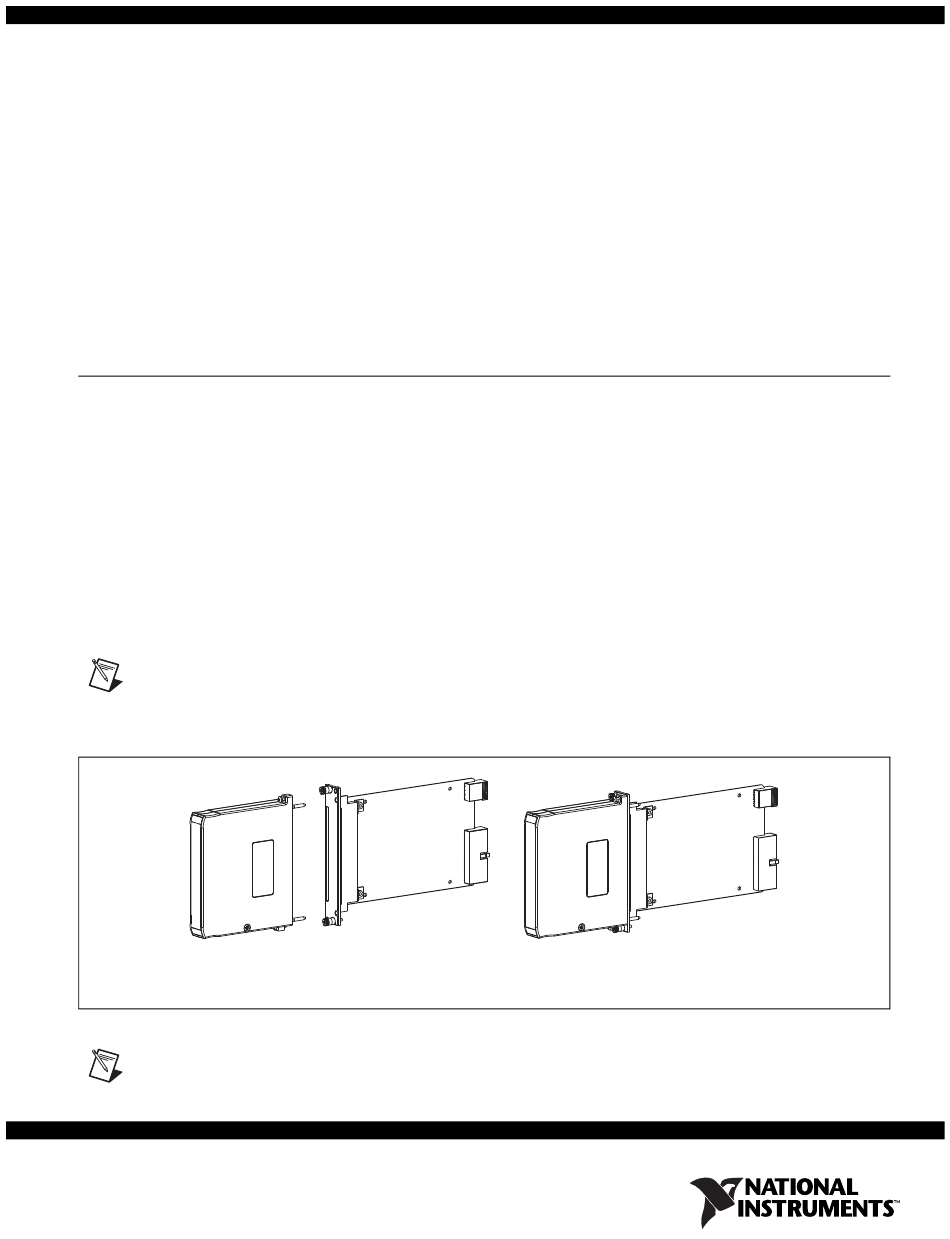

Figure 1. NI FlexRIO Device
=
NI FlexRIO Device
Advertisement
Table of Contents
Related Manuals for National Instruments 5762R
Summary of Contents for National Instruments 5762R
-
Page 1: Table Of Contents
NI FlexRIO Device Adapter Module FPGA Module Figure 1. NI FlexRIO Device Note NI 5762R refers to the combination of your NI 5762 adapter module and your NI FlexRIO FPGA module. NI 5762 refers to your NI 5762 adapter module only. -
Page 2: Electromagnetic Compatibility Guidelines
Caution To ensure the specified EMC performance, you must install PXI EMC Filler Panels (National Instruments part number 778700-01) in adjacent chassis slots. For more information about installing PXI EMC filler panels on your NI 5762R, refer to the Appendix: Installing EMI Controls section of this document. -
Page 3: How To Use Your Ni Flexrio Documentation Set
Other Useful Information on ni.com Contains LabVIEW FPGA functions and intellectual property to share. ni.com/ipnet Contains product information and data sheets for NI FlexRIO devices. ni.com/flexrio These documents are also available at ni.com/manuals. © National Instruments Corporation NI 5762R User Guide and Specifications... -
Page 4: Front Panel And Connector Pinouts
Failing to terminate the CLK IN connector may negatively impact the jitter performance of the NI 5762. Caution Connections that exceed any of the maximum ratings of any connector on the NI 5762R can damage the device and the chassis. NI is not liable for any damage resulting from such signal connections. - Page 5 HDMI interface. Do not connect the AUX I/O port on the NI 5762 into the HDMI port of another device. NI is not liable for any damage resulting from such signal connections. © National Instruments Corporation NI 5762R User Guide and Specifications...
-
Page 6: Block Diagram
PFI 2 Rd Data PFI 2 PFI 2 Wr Data PFI 3 Rd Data PFI 3 PFI 3 Wr Data PFI <0..3> WE Figure 3. NI 5762 Connector Signals and NI 5762 CLIP Signal Block Diagram NI 5762R User Guide and Specifications ni.com... -
Page 7: Ni 5762 Component-Level Intellectual Property (Clip)
CLIP Socket User-Defined LabVIEW Adapter Socketed CLIP FPGA VI Fixed I/O Module CLIP DRAM 0 DRAM 1 CLIP Socket CLIP Socket Socketed Socketed CLIP CLIP DRAM0 DRAM1 Figure 4. CLIP Relationship © National Instruments Corporation NI 5762R User Guide and Specifications... - Page 8 Boolean write enable signal. The four PFI signals are accessed individually using Boolean controls. Refer to the NI FlexRIO Help for more information about NI FlexRIO CLIP items, configuring the NI 5762 with a socketed CLIP, and a list of available socketed CLIP signals. NI 5762R User Guide and Specifications ni.com...
-
Page 9: Cables
LabVIEW FPGA application. This section explains how to use an existing LabVIEW FPGA example project to generate and acquire samples with the NI 5762R. This example requires at least one SMA cable for connecting signals to your NI 5762R. - Page 10 Click OK in the Configure Open FPGA VI Reference dialog box. Save the VI. On the front panel, in the RIO Resource pull-down menu, select an NI 5762R resource that corresponds with the target configured in step 6. Select AI 0 in the AI Channel control.
-
Page 11: Creating A Labview Project And Running A Vi On An Fpga Target
This section explains how to set up your target and create an FPGA VI and host VI for data communication. For more detailed information about acquiring data on your NI 5762R, refer to the device-specific examples available in NI Example Finder. - Page 12 The Generating Intermediate Files window opens and displays the code generation progress. Next, the Compilation Status window opens and displays the progress of the compilation. The compilation takes several minutes. 24. Click Close in the Compilation Status window. NI 5762R User Guide and Specifications ni.com...
- Page 13 While Loop on the block diagram. 17. Wire the FPGA VI Reference Out terminal of the Read/Write Control function to the FPGA VI Reference In terminal of the Close FPGA VI Reference function. © National Instruments Corporation NI 5762R User Guide and Specifications...
- Page 14 Click the Run button to run the VI. The VI acquires data from the DUT on AI 0 Data N and AI 0 Data N-1. Click the STOP button on the front panel and close the VI. NI 5762R User Guide and Specifications ni.com...
-
Page 15: Specifications
DC offset NI 5762 (-01) ..........±1 mV NI 5762 (-02) ..........–5 mV ± 0.6 mV For additional information about the AD9467, refer to the Analog Devices data sheet at www.analog.com © National Instruments Corporation NI 5762R User Guide and Specifications... - Page 16 Refer to Figures 8 and 10. Measurements –10 –20 –30 –40 –50 –60 –70 –80 NI 5762 (-01) NI 5762 (-02) –90 1E–02 1E–01 1E+00 1E+01 1E+02 1E+03 Frequency (MHz) Figure 8. Frequency Response (Logarithmic Scale) NI 5762R User Guide and Specifications ni.com...
- Page 17 Figure 9. Frequency Response, NI 5762 (-01) only (Logarithmic Scale) –2 –4 –6 –8 –10 –12 –14 –16 NI 5762 (-02) –18 0.6 0.7 0.8 0.9 1.0 Frequency (GHz) Figure 10. Frequency Response, NI 5762 (-02) only (Logarithmic Scale) © National Instruments Corporation NI 5762R User Guide and Specifications...
- Page 18 –20 –30 –40 –50 –60 –70 –80 –90 –100 –110 –120 –130 Frequency (MHz) Figure 12. Single-Tone Spectrum at 20 MHz, –3.1 dBFS, SFDR –90.8 dBc, NI 5762 (-01) and NI 5762 (-02) NI 5762R User Guide and Specifications ni.com...
- Page 19 Frequency Offset from Carrier (Hz) Figure 13. Analog Input Phase Noise with 100 MHz Input Signal, PLL On Measured using PXI_CLK10 as the source for the Sync Clock (IoModSyncClk) from the PXI Express backplane. © National Instruments Corporation NI 5762R User Guide and Specifications...
- Page 20 Input voltage range ..........0.63 V to 2.0 V pk-pk pk-pk Absolute maximum voltage ........±3.0 V DC, 3.0 V pk-pk For additional information about the AD9511, refer to the Analog Devices data sheet at www.analog.com NI 5762R User Guide and Specifications ni.com...
- Page 21 ..........0.4 V Minimum V ..........2.7 V Maximum V ..........3.6 V ..............50 Ω ± 20% (DC)............±2 mA Pull-down resistor ..........150 kΩ Recommended operating voltage......–0.3 V to 3.6 V Overvoltage protection...........±10 V © National Instruments Corporation NI 5762R User Guide and Specifications...
- Page 22 IEC-60068-2-56. For PXI/PXI Express chassis configurations that group NI FlexRIO adapter modules in three or more contiguous slots, ° National Instruments recommends limiting the ambient operating temperature to less than 50 NI 5762R User Guide and Specifications ni.com...
- Page 23 To obtain product certifications and the Declaration of Conformity for this product, visit ni.com/ , search by model number or product line, and click the appropriate link in the certification Certification column. © National Instruments Corporation NI 5762R User Guide and Specifications...
-
Page 24: Where To Go For Support
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at ni.com/... -
Page 25: Appendix: Installing Emi Controls
To ensure specified EMC performance, HDMI cable ferrites and PXI EMC filler panels must be properly installed on your NI 5762R system. Your kit includes two HDMI cable ferrites, but PXI EMC filler panels (National Instruments part number 778700-01) must be purchased separately. For more installation information, refer to the NI FlexRIO FPGA Module Installation Guide and Specifications. - Page 26 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. Refer to the Export Compliance Information at ni.com/legal/ export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.
