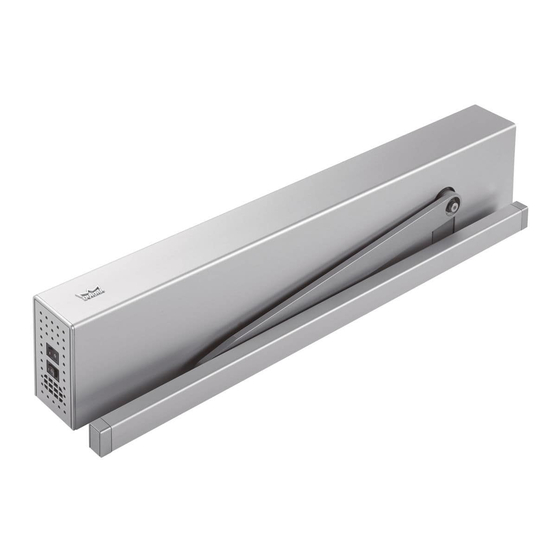

Dormakaba ED50 Quick Start Manual

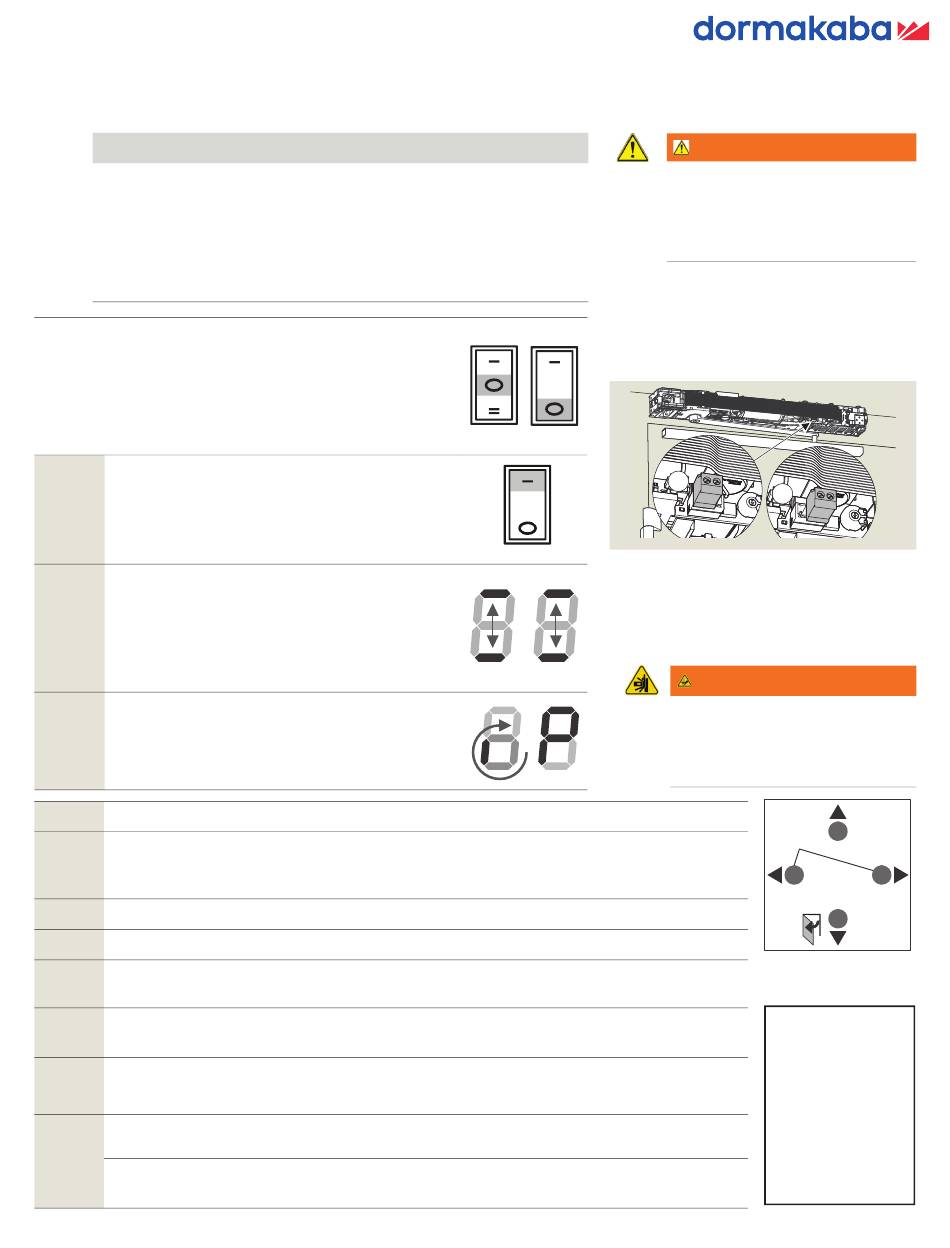

Quick Start Guide
ED50/ED100/ED250

NOTICE

This guide is intended to be used as a reference to assist a trained and
certified AAADM technician in programming the dormakaba:
• ED50 operator in accordance with ANSI A156.19 Standard for
Low Energy Power Operated Doors.
• ED100/ED250 operators in accordance with ANSI A156.19 or
ANSI A156.10 Standard for Power Operated Pedestrian Doors.
• The ED operator must be completely installed per the
applicable dormakaba Installation Instruction Manual.
• Door must be closed. Both program switches
in the CLOSE "0" position.
• All terminal blocks need to be installed.
No safety sensors connected.
Power switch to ON position.
• A series of numbers and letters will show up

Step 1

on the display.
• This will stop after two horizontal dashes
sideby side move up and down several times.
While the dashes are moving up and down,
press the bottom button on the display.
• This will identify which way the unit is

Step 2

mounted.
• Letters and numbers will now display right
side up.
The display will show a "P" on the right with a
rotating segment on the left.
Step Directions
Press and hold the right button until Parameter
3
ID is displayed (approximately 3 seconds), then
release the button.
4
Press the right button.
5
Press the right button.
Press the up and down buttons to change the
6
setting.
7
Press the right button to accept the changes.
Press the left button to return to the
8
programming menu.
Press the down button to go to the next
parameter setting (or)
9
Press the left button to exit programming menu.
ED50/ED100/ED250
Expected results
Parameter ID will appear (ex. AS).
Displays the current setting.
Display will flash the current setting.
Displays the new parameter
setting.
Displays the current Parameter ID
(Step 3).
Go back to Step 4.
Display will show a rotating
segment and a "0".
DL4615-015
Verify power fail closing speed
and braking circuit plug position
before programming the door
and completing a learn cycle.
Power fail closing speed.
• The door must be adjusted to close in
no less than three seconds but a
minimum of five seconds is recommended.

Braking circuit plug position

A
28
A – Pull arm
When the braking circuit plug is in the
correct position the door will easily Press
open and close slowly. If the door is very
hard to Press open change the jumper
position.
If braking circuit plug is inserted
incorrectly, brake circuit will not
work. The door can close at high
speed!
www.dormakaba.com

WARNING

B
B – Press arm
WARNING
< 3s Quit
> 3s Reset
> 3s
< 3s
LEARN
> 8s
Fact-Setup
All three required
parameter settings
(AS, rd, Tb) must
be made to flash
even if the value
does not need to
be changed before
the door will move
to the learn cycle.
01-2020
> 3s
PRG
