Step 3; Step 4; Step 5; Complete - OLG Modulus Flip Table Installation Manual

MODULUS FILP TABLE
Installation Guide

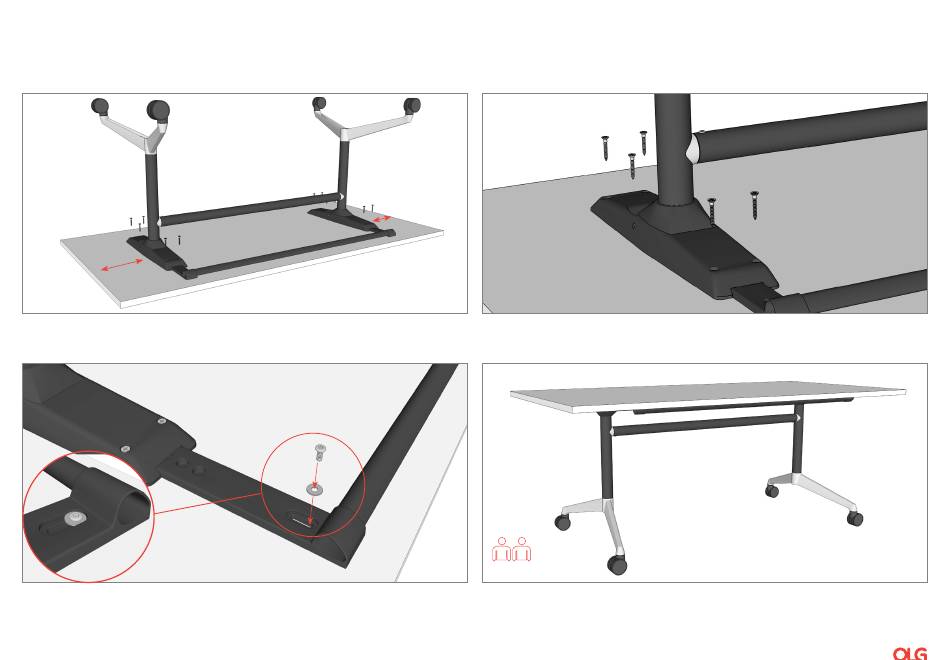

STEP 3:

Ensure the frame is located in the centre of the worksurface.

STEP 5:

On all tables with width larger than 700mm, secure the pull bar with
the supplied washer and screw in the location pictured above (slot end
closest to the pull-bar). Leave screw 1 turn from tight so the pull-bar
can be operated smoothly.
Fully tighten all 6 screws on each mechanism.

STEP 4:

Recommended
2-person Step

COMPLETE:

Using 2 people rotate table into upright position.
