3950 NW 120
The W204-H RVC Kit interfaces two camera inputs and optional HDMI input to the factory
media screen in select 2012+ Mercedes vehicles (HDMI input requires additional adapter).
Optional HDMI Adapter
Power/CAN Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
W204-H
NTV-KIT794

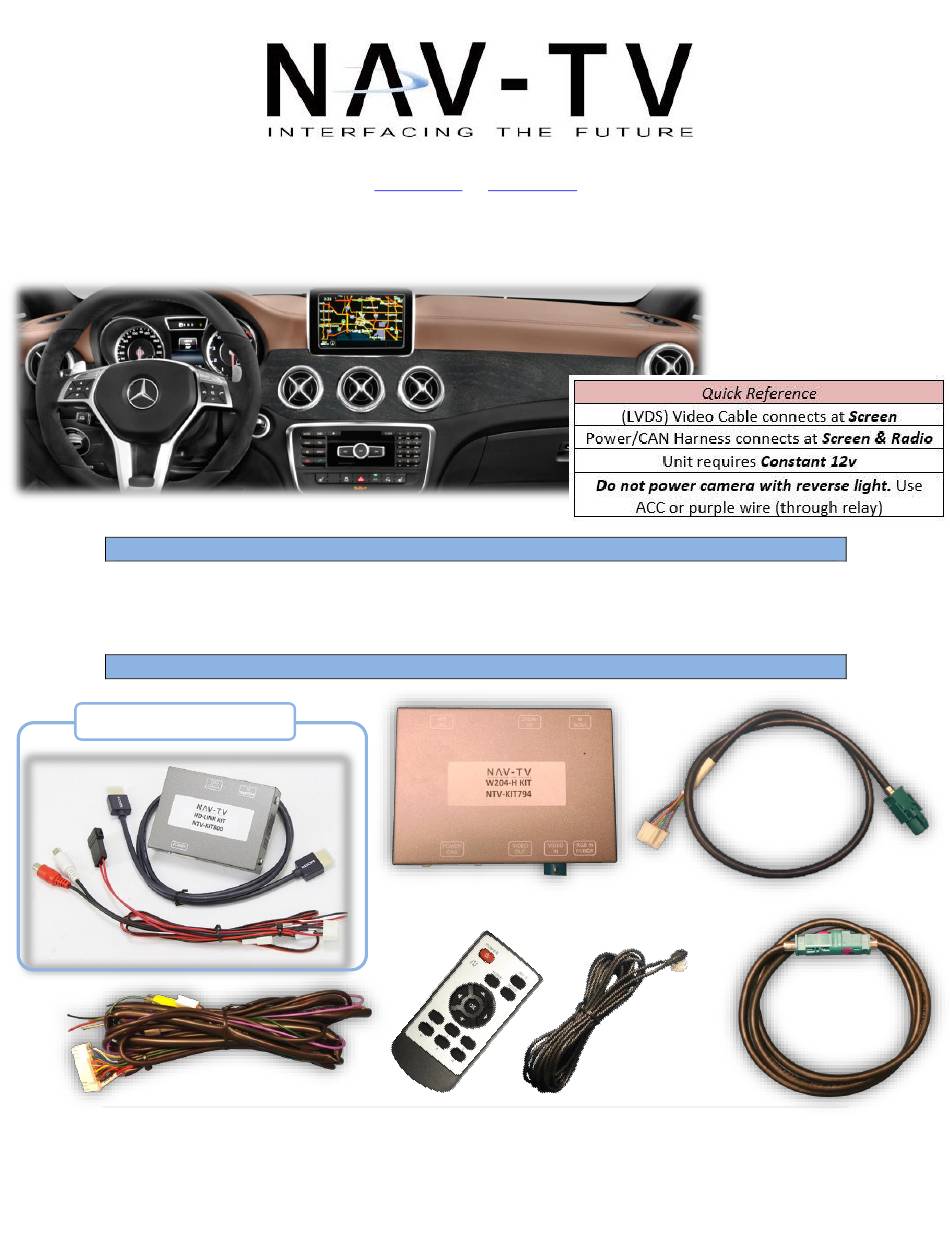

Overview

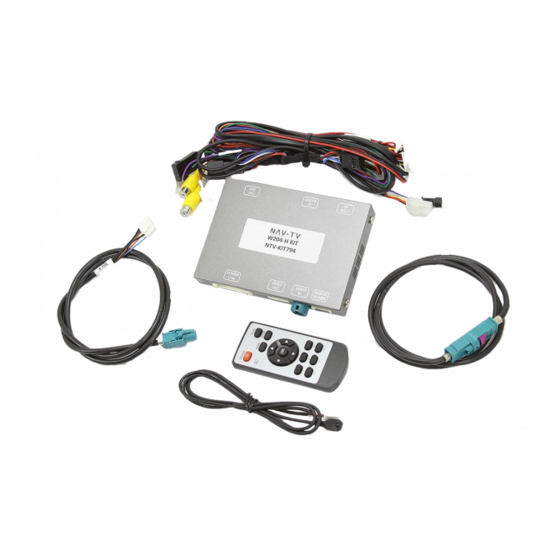

Kit Contents
W204-H Interface
NTV-DOC281
B-Type
LVDS
Video
Cable
IR Eye
1 |
BHM
10/18/18
OEM LVDS
Extension
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV W204-H
Summary of Contents for Nav TV W204-H
- Page 1 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com W204-H NTV-KIT794 Overview The W204-H RVC Kit interfaces two camera inputs and optional HDMI input to the factory media screen in select 2012+ Mercedes vehicles (HDMI input requires additional adapter). Kit Contents Optional HDMI Adapter B-Type LVDS...
- Page 2 10/18/18 NTV-DOC281 Interface Connectors Power/CAN Video IN (from radio) Video OUT (to screen) OUOUT Not Used HDMI Cable from HD-LINK Dip Switches Not Used Dip Switch Settings DIP SW NAV OFF OEM RVC HIGH KEEP DOWN TYPE TYPE DOWN ADDING ADDING KEEP DOWN TYPE...
- Page 3 LVDS video cable previously removed from the factory monitor and connect it to the green port on the W204-H interface. NOTE: if required, use the provided LVDS Extension cable for ease of install. 4. Connect the provided LVDS Video cable to the OEM monitor (green plug).
- Page 4 10/18/18 NTV-DOC281 7. Connect the white, 10-pin POWER/CAN plug to the W204-H interface at the port labeled ‘POWER/CAN’. 8. Install and run your reverse camera’s power, ground & signal up to the radio/W204-H Interface location. Connect the signal RCA to the provided RCA end labeled ‘CAMERA’.
- Page 5 10/18/18 NTV-DOC281 W204-H Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 6 10/18/18 NTV-DOC281 Menu Adjustments Before you start: • The IR-Eye must be connected • Make sure the car’s ignition is on and radio is on • You must be in Reverse Camera or AUX mode • Press the OK BUTTON 4 times (numbers will display per press), then press POWER.
- Page 7 10/18/18 NTV-DOC281 Adding HD-LINK Adapter (HDMI Input) Follow the instructions below when adding the HDMI adapter (HD-LINK) to enable HDMI input to the OEM screen: 1. Put dip switch #1 in the DOWN position. 2. Activate the ‘NAV INPUT’ by holding the BACK button on the steering wheel.
- Page 8 NTV-DOC281 W204-H Operation • Once the W204-H is connected properly, reverse activation is automatic. Placing the vehicle in reverse will display the connected camera’s image automatically. Note: If display doesn’t switch to reverse image when shifting into reverse or screen is distorted, check dip switch settings on page 2.
