- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 Barracuda Video in Motion for select ’07-‘11 GM vehicles NTV-KIT211 11/18/14 NTV-DOC117...

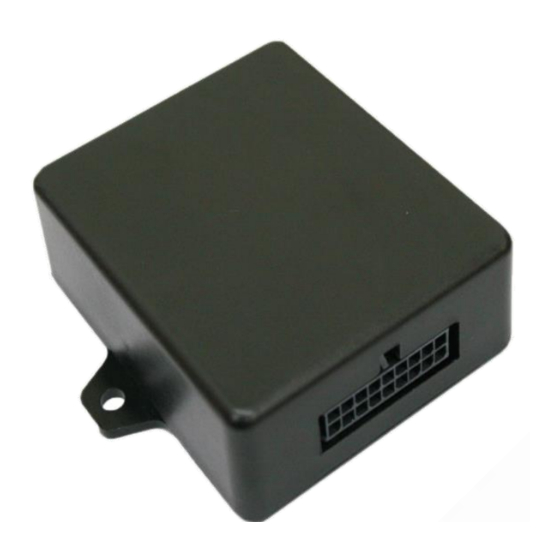

- Page 2 11/18/14 NTV-DOC117 Overview The NAV-TV Barracuda adds Video in Motion, Navigation control in motion, forced factory camera and front camera add-on (only if factory camera equipped) to select 2007-2011 GM vehicles with the 29-BIT GM-LAN radios. Kit Contents Plug & Play T-Harness...
- Page 3 11/18/14 NTV-DOC117 Radio Removal (Escalade) 1. Using a soft plastic pry tool, remove the trim panel on the passenger side just over the glove compartment. This will allow removal of radio trim. 2. Gently pry up on center console trim, and disconnect cigarette lighter plug.
- Page 4 OUTPUT B (white/orange wire). Be certain to program OUTPUT B for ‘Front Camera’ if using white/orange wire. 8. Connect the Barracuda module to the 18-pin plug located on the Plug & Play T-Harness. 9. Proceed to Barracuda Programming (page 6).
- Page 5 11/18/14 NTV-DOC117 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 6 Forced Factory Rear Camera connection (optional) Barracuda Programming The Barracuda Settings Menu supports GM’s 4 Line, 2 Line, and 1 Line instrument cluster displays. To access the Barracuda Settings Menu, press and hold the left arrow mirror button for 2 seconds.
- Page 7 INTERRUPT” for the programmable Output A or B, connected to the external antenna relay board. 3. BEEP: Enables or disables the audible tones the Barracuda uses to signal the user a state has changed. ON: Audible beeps, generated by the Barracuda, are ON.
- Page 8 NOTE: In order to use this function with the factory camera, pin 11 of the Barracuda needs to be connected to the Rear Camera Module (see Page 8.) This is not necessary for an aftermarket camera.
- Page 9 Menu cycles back to item 1, RADIO TYPE, after item 8. NOTE 9: FLIR Camera communication requires Pin 5 and Pin 14 of the Barracuda Wire Harness to be tied together and connected the controller wire of the FLIR Harness. (See diagram below.) 9.
- Page 10 All Functions of the Barracuda are controlled through the vehicle’s power mirror direction pad. The Barracuda controls are only available when the left and right mirror buttons are NOT selected (LEDs OFF). Example: if the Left Mirror button is illuminated, press the illuminated Left Mirror button again to turn the LED off.
- Page 11 11/18/14 NTV-DOC117 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
