CONTROLS

All functions of the original unit have been retained in an easy to navigate menu
system.
All menus in the following sections can be entered by selecting the appropriate
function key. When a menu is selected the function key will illuminate yellow and
the relevant menu will be displayed in the centre LCD display.
To scroll through sub-menus press the relevant function key again (»). To adjust the
setting of the sub-menu use the up/down arrows and either the ENTER key to
accept and return directly out of the menu, or the function key to continue to further
settings within the menu. Once all sub-menus have been shown the function key
will return out of the menu and the display will return to the main AC display. Please
see the relevant section below for detailed menu / function descriptions.
All function keys will time out and return to the main AC menu.
Audio functions = 10 secs
Set-Up functions = 5 secs (wiper service will remain until the wipers are parked).
Control Keys: Arrow Up (5) / Arrow Down (13) - These keys are used to adjust
settings within the menus described in the following sections.
Enter (12) - This key is used to confirm and exit a setting menu.
Return (4) - This key will return to the main aircon screen and exit any sub-menu.
20 21 20 21 22 22 23 23 24
31 32 32 33 33 34 34 35

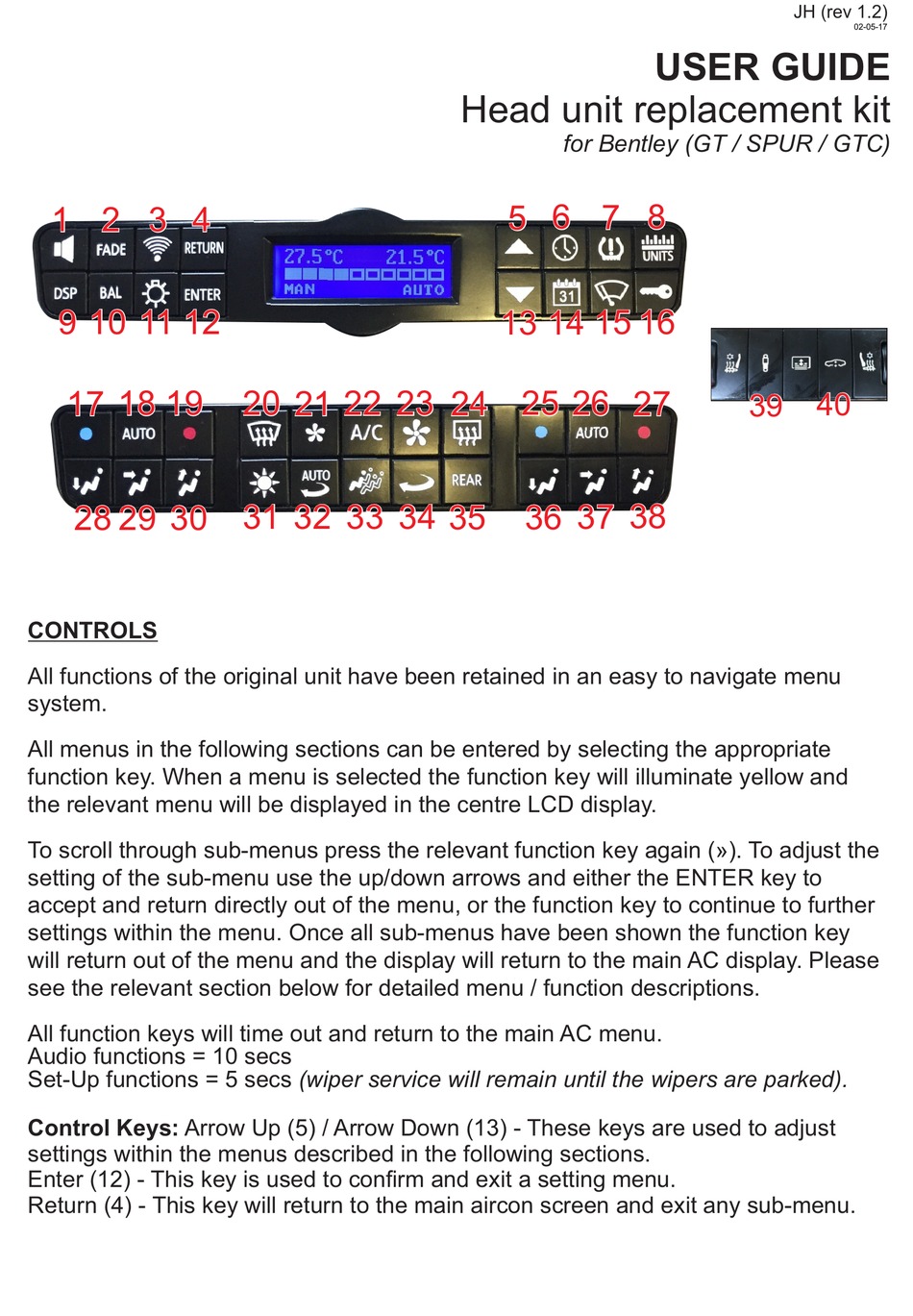

Head unit replacement kit
for Bentley (GT / SPUR / GTC)
5 5 5 6 6 6 7 7 7 8 8 8
14 15 15 16
13 13 14
25 26 25 26 27
24
36 37 37 38
35 36
JH (rev 1.2)
USER GUIDE
16
27
39 39
38
02-05-17
