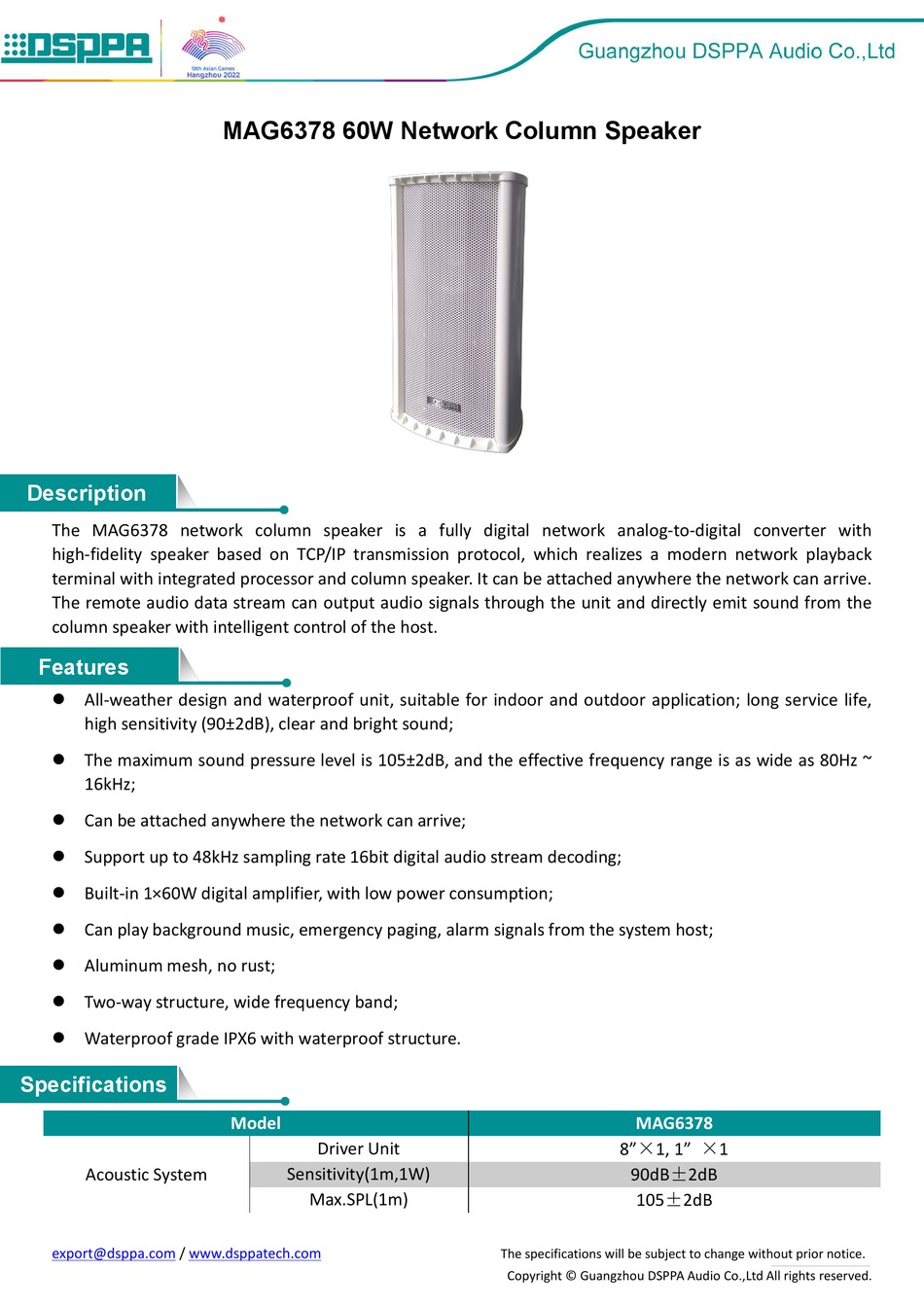

DSPPA MAG6378 Quick Start Manual

Description

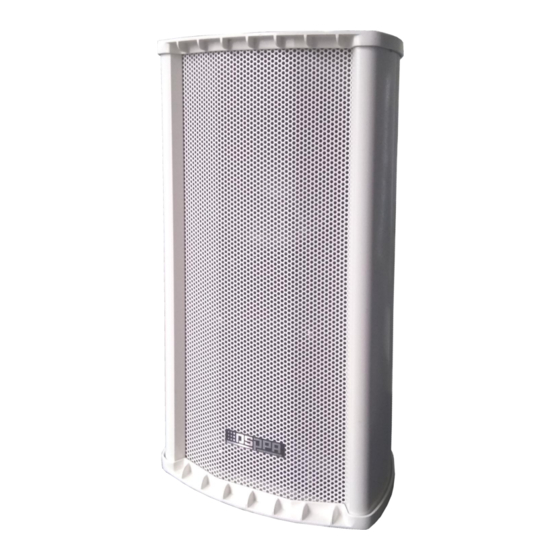

The MAG6378 network column speaker is a fully digital network analog-to-digital converter with
high-fidelity speaker based on TCP/IP transmission protocol, which realizes a modern network playback
terminal with integrated processor and column speaker. It can be attached anywhere the network can arrive.
The remote audio data stream can output audio signals through the unit and directly emit sound from the
column speaker with intelligent control of the host.

Features

 All-weather design and waterproof unit, suitable for indoor and outdoor application; long service life,
high sensitivity (90±2dB), clear and bright sound;
 The maximum sound pressure level is 105±2dB, and the effective frequency range is as wide as 80Hz ~
16kHz;
 Can be attached anywhere the network can arrive;
 Support up to 48kHz sampling rate 16bit digital audio stream decoding;
 Built-in 1×60W digital amplifier, with low power consumption;
 Can play background music, emergency paging, alarm signals from the system host;
 Aluminum mesh, no rust;
 Two-way structure, wide frequency band;
 Waterproof grade IPX6 with waterproof structure.

Specifications

Acoustic System
export@dsppa.com / www.dsppatech.com
MAG6378 60W Network Column Speaker
Model
Driver Unit
Sensitivity(1m,1W)
Max.SPL(1m)
MAG6378
8"×1, 1" ×1
90dB±2dB
105±2dB
The specifications will be subject to change without prior notice.
