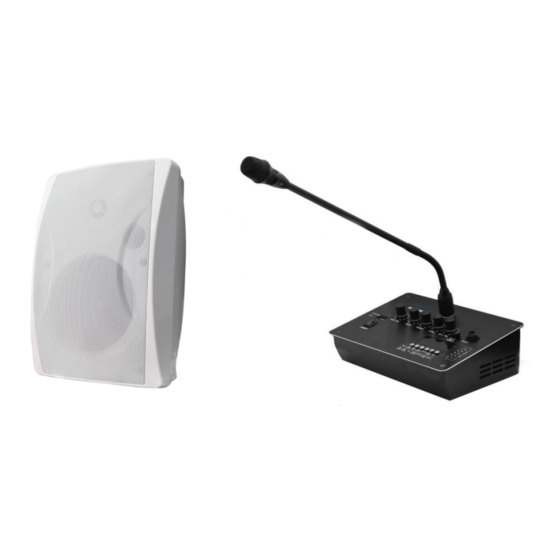

- Page 1 MP30W User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. G u a n g z h o u D S P PA A u d i o C o . , L t d .
- Page 2 Warnings The equipment is not waterproof. To prevent fire or electric shock, please do not place any liquid filled containers (such as vases or flowerpots) near the equipment or expose the equipment to dripping, splashes, rain or moisture. Attentions Please hold the plug when moving the power cord. Do not pull the power cord when pulling out the power plug.
- Page 3 the requirements of most occasions. Users can also choose ceiling speakers, garden speakers and other kinds of speakers. There is no limit to the number of speakers that can be connected, only the transmission distance is limited (the visual distance 30 meters for radius). Applications Applied in large residentials, such as houses and villas.
- Page 4 Front panel Next track key Display Press to play the next track. Long press to Audio source selection key fast forward music. Press to select audio sources, such as MP3, Signal indicator Bluetooth (BT), LINE (AUX). Long press to Micro SD Card (TF Card) interface on and off the subwoofer MP3 / Record key 10 USB interface...
- Page 5 Rear panel 1. Antenna port for sending wireless signals; 2. Display of transmitting status, such as frequency; 3. Wireless microphone pairing key. When the system needs to pair wireless microphone, long press this key to enter the pairing state, and then turn on the wireless speaker powers one by one. When all the speakers are powered on, wait for 3 seconds, and then short press the key to enter the transmitting state, then all the speakers will be in the normal receiving state;...
- Page 6 Public Address System Connection Diagram Mobile phone Master speaker Sub-speaker and other Bluetooth devices General wireless microphone TV, Mixer, DVD and Other wireless speakers other audio sources PA amplifier Other speakers...
- Page 7 Power supply 900MHz Wireless frequency band ≥85dB System SNR 388×378×180mm Pack size (L× W× H) Pack weight 4.5KG MP30W AUX Input Sensitivity 500±50mv ≥85dB AUX output SNR Freq. Response 80Hz-16KHz (±3dB) ≤0.5% (1KHz, normal working condition) 10dB (100Hz) Base range...
- Page 8 Packing list List Quantity Host (with Gooseneck mic, power adapter and antenna) Master speaker (with power adapter) User manual Warranty card Certificate Guangzhou DSPPA Audio Co., Ltd.
