Landscape Forms Contour SQUARE TRADITIONAL Installation Manual

Contour
table
Installation Guide
40in SQUARE 49in SQUARE
SINGLE POST
TRADITIONAL

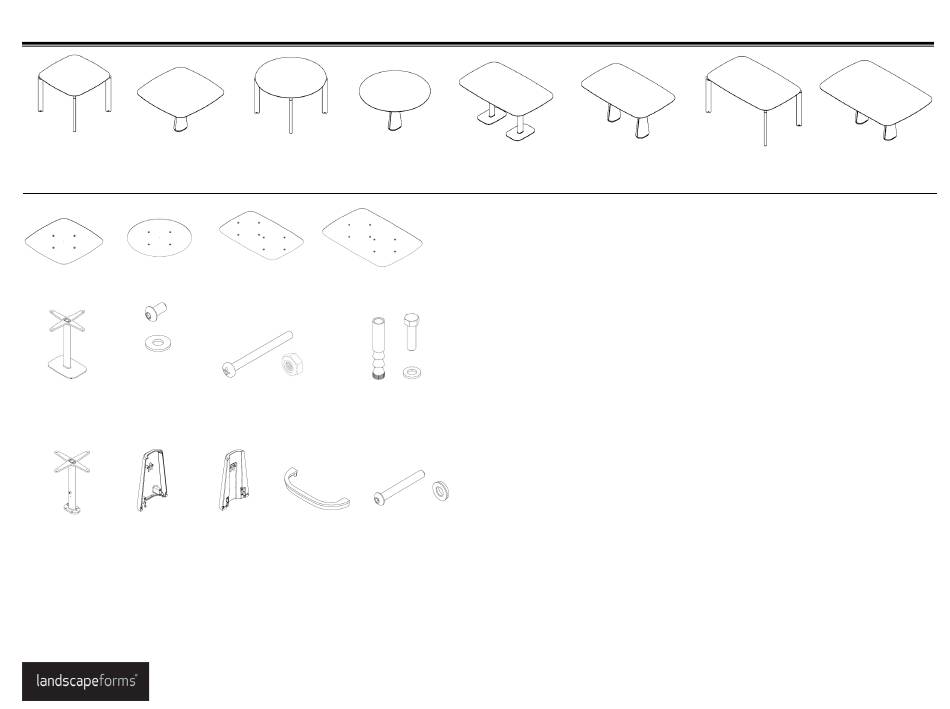

Included components:
49-1/4in ROUND
49in SQUARE
SINGLE POST
SINGLE POST
5/16-18 X 5/8 BHCS
AND WASHER
PEDESTAL BASE
-4X PER POST
METAL COVER
POST BASE
FOR POST BASE
-2X PER POST
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To
protect this finish during assembly, place unwrapped powdercoated parts on packaging foam or
other non-marring surface. Do not place or slide powdercoated parts on concrete or other hard
or textured surface – this will damage the finish causing rust to occur. Use touch-up paint on any
gouges in the finish caused by assembly tools.
49-1/4in ROUND 49-1/4in ROUND
TRADITIONAL SINGLE POST
39-3/4in x 63in
49in x 73in
RECTANGLE
RECTANGLE

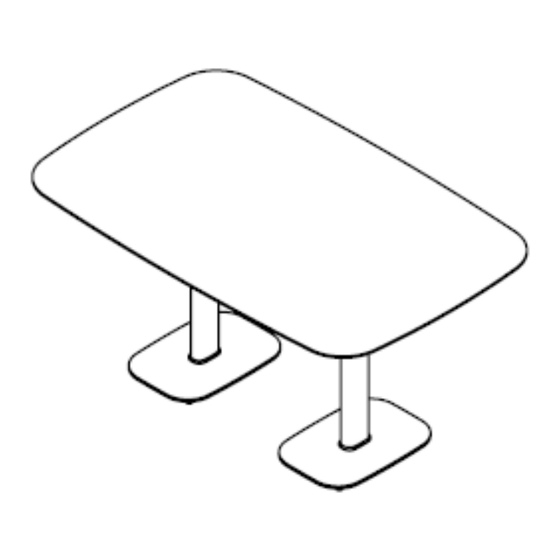

DUAL POSTS /
DUAL POSTS
PEDESTAL
1/4-20 x 2-3/4" PAN HD
3/8-16 CONCRETE GRIP
SCREW AND HEX NUT
ANCHORS WITH HEX
-2X PER POST (SINGLE POST
BOLTS AND WASHERS
W/ UMB HOLE ONLY)
FOR SURF MT POST
-4X PER POST
MELDSTONE
1/4-20 X 2" BHCS AND
TRIM RING
COVER
SEALING WASHER
FOR POST BASE
FOR POST BASE
-2X PER POST
-2X PER POST
39-3/4in x 63in
RECTANGLE
PEDESTAL
Tools required for anchoring and assembly:
Note: Traditional base ships assembled to tabletop. Single/dual post and pedestal base
styles require assembly. Single/dual post base style tables must be anchored.
Tabletop attachment to pedestal base or post base:
• Safety glasses
• 3/16 hex key/driver for tabletop attachment
Single/dual post tables:
• 9/16" wrench/socket for anchor install
• Masonry drill with Ø5/8" bit
• Compressed air and wire brush
• Epoxy anchoring system for concrete
•
5/32 hex key, for post base cover attachment
Traditional base surface mount option:
•
(4) Non-corrosive anchors required, max Ø3/8", with max 1" O.D. washer
-2X PER POST
www.landscapeforms.com
39-3/4in x 63in
39-3/4in x 63in
RECTANGLE
RECTANGLE
DUAL POSTS TRADITIONAL
Date: October 17, 2024
Ph: 800.521.2546
49in x 73in
RECTANGLE
DUAL POSTS
Page 1 of 3
