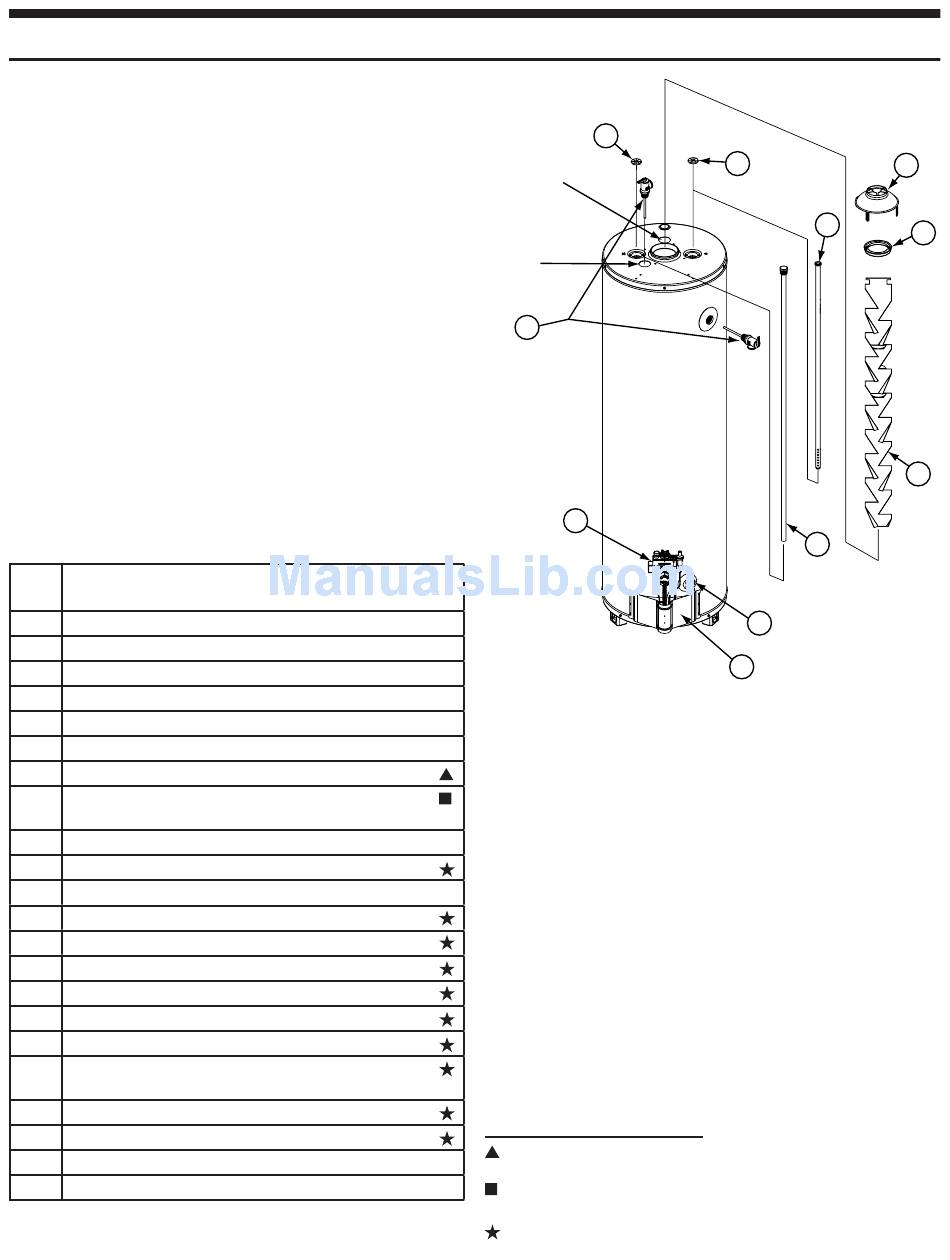

REPAIR PARTS ILLUSTRATION

When ordering repair parts always give the following
information:
1. Model, serial, and product number
2. Type of gas
3. Item number
4. Parts description

Repair Parts List

Item
No.
1
DRAFTHOOD
2
REDUCER RING - SOME MODELS
3
FLUE BAFFLE
4
HEAT TRAP (COLD) - SOME MODELS
5
HEAT TRAP (HOT) - SOME MODELS
6
COLD WATER DIP TUBE
7
ANODE ROD
8
TEMPERATURE & PRESSURE RELIEF VALVE
(LOCATED TOP OR SIDE)
9
DRAIN VALVE
10
GAS CONTROL VALVE/THERMOSTAT
11
OUTER DOOR
12*
PILOT ASSEMBLY KIT (Natural Gas)
13*
PILOT ASSEMBLY KIT (L.P. Gas)
14*
BURNER (Natural Gas/Low Nox)
15*
BURNER (L.P. Gas/Low Nox)
16*
MANIFOLD DOOR ASSEMBLY (Natural Gas/Low Nox)
17*
MANIFOLD DOOR ASSEMBLY (L.P. Gas)
18*
TWO PIECE WIRE CONNECTOR
WITH RETAINER CLIP
19*
MANIFOLD DOOR GASKET
20*
VIEWPORT ASSEMBLY
21*
PIEZOELECTRIC IGNITER BUTTON
22*
THERMOCOUPLE
*Pictured on next page.
Parts Description
(with wire leads)
5
Alternate anode
location for top
T&P
Anode location
for side T&P
8
10
LEGEND
Special anode rod (see
section
)
Temperature and Pressure Relief Valve is required,
but may not be factory installed
Unique: Flame Lock
4
6
7
9
11
Anode Rod/Water Odor
Safety System parts
1
2
3
27
