Mounting the Energy Pack Directly on a Panel

Heat dissipation: When mounting the Energy Pack on a panel, allow a minimum clearance of 25.4mm (1") on the
four sides of the unit (right, left, top and the bottom).
Recommended fasteners: Four M4-0.7 machine screws with minimum length of 25mm (or 8-32, 1" min. length) and
nuts.
Drill four mounting holes using the spacing shown in the following drawing.
1.
Use the machine screws and nuts to attach the Energy Pack to the panel.
2.
GFK-2741D
Over tightening the mounting screws could crack the plastic housing.
2.610"
66.294mm

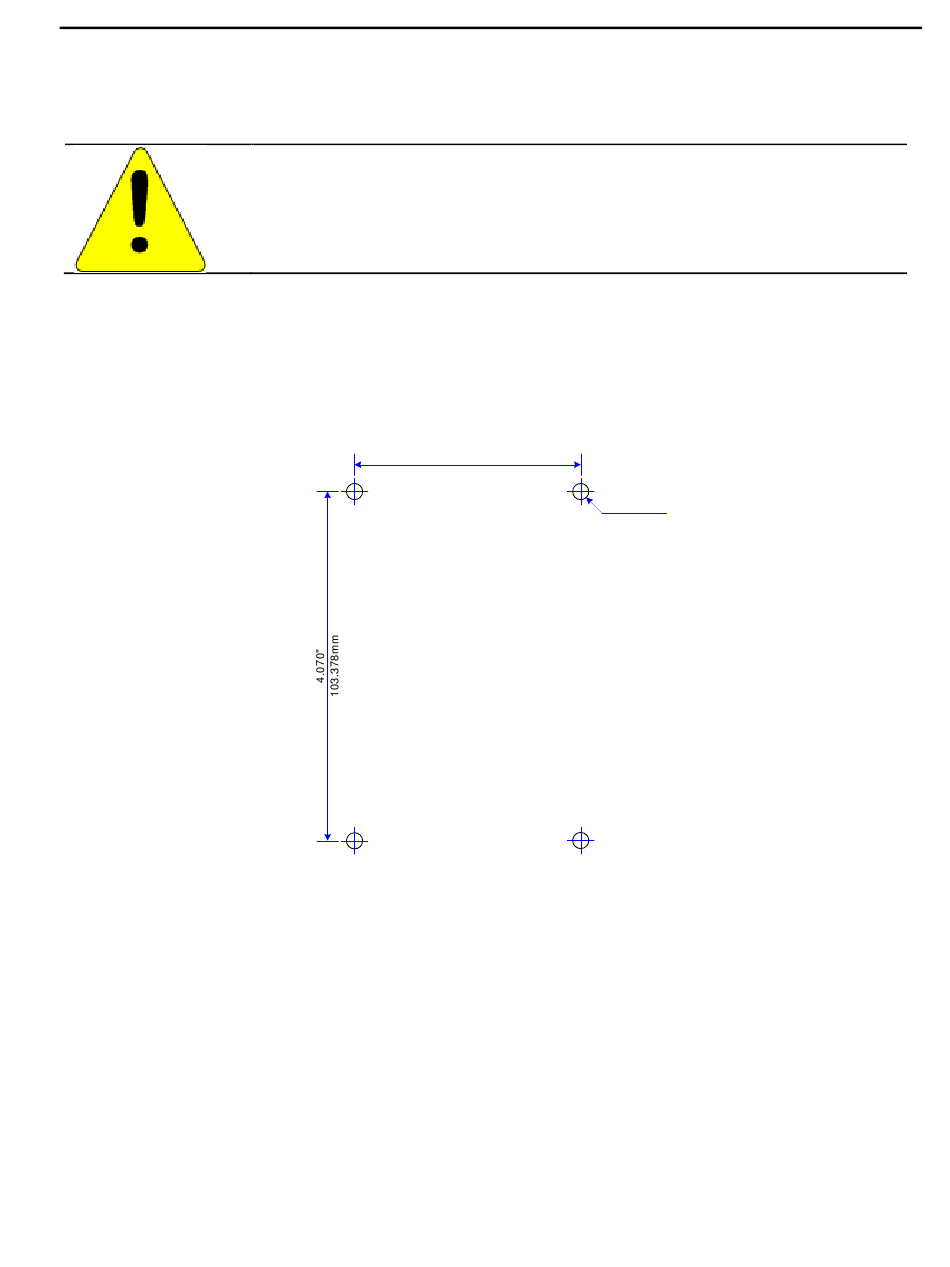

Drilling Pattern for Direct Panel Mounting
June 2015
Caution
0.188"
4.763mm
Energy Packs
