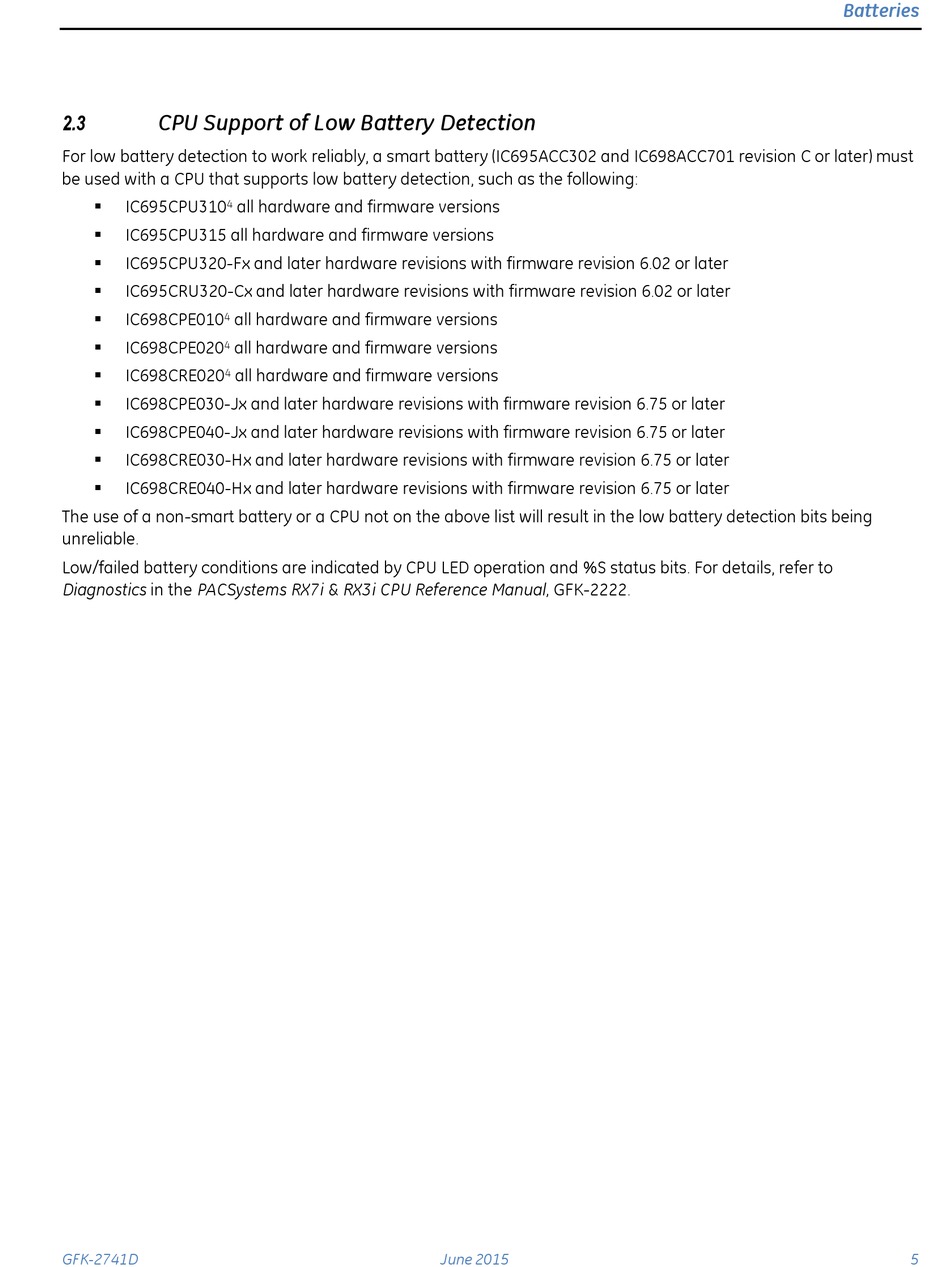

CPU Support of Low Battery Detection

2.3
For low battery detection to work reliably, a smart battery (IC695ACC302 and IC698ACC701 revision C or later) must
be used with a CPU that supports low battery detection, such as the following:
IC695CPU310 all hardware and firmware versions
 4
IC695CPU315 all hardware and firmware versions

IC695CPU320-Fx and later hardware revisions with firmware revision 6.02 or later

 IC695CRU320-Cx and later hardware revisions with firmware revision 6.02 or later
 IC698CPE010 all hardware and firmware versions
4
IC698CPE020 all hardware and firmware versions
 4
IC698CRE020 all hardware and firmware versions
 4
IC698CPE030-Jx and later hardware revisions with firmware revision 6.75 or later

IC698CPE040-Jx and later hardware revisions with firmware revision 6.75 or later

IC698CRE030-Hx and later hardware revisions with firmware revision 6.75 or later

 IC698CRE040-Hx and later hardware revisions with firmware revision 6.75 or later
The use of a non-smart battery or a CPU not on the above list will result in the low battery detection bits being
unreliable.
Low/failed battery conditions are indicated by CPU LED operation and %S status bits. For details, refer to
Diagnostics in the PACSystems RX7i & RX3i CPU Reference Manual, GFK-2222.
GFK-2741D June 2015
Batteries
5
