Page 1

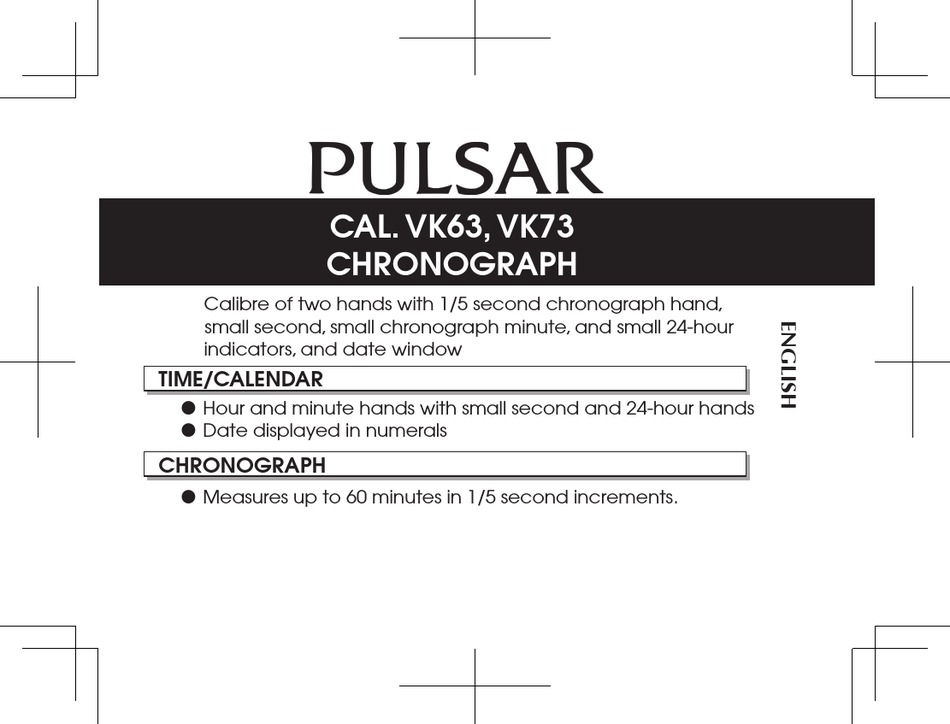

CAL. VK63, VK73 CHRONOGRAPH Calibre of two hands with 1/5 second chronograph hand, small second, small chronograph minute, and small 24-hour indicators, and date window TIME/CALENDAR l Hour and minute hands with small second and 24-hour hands l Date displayed in numerals CHRONOGRAPH l Measures up to 60 minutes in 1/5 second increments.
Page 2
DISPLAY AND CROWN/BUTTONS Date CHRONOGRAPH [VK63] [VK73] CHRONOGRAPH 1/5-second hand 1/5-second hand Minute hand Minute hand Hour hand Hour hand CHRONOGRAPH a b c CHRONOGRAPH a b c minute hand minute hand CROWN CROWN 24-hour hand 24-hour hand Small second...
SCREW DOWN CROWN TIME/CALENDAR SETTING [for models with screw down crown] Unlocking the crown 1 2 3 1 Turn Crown counterclockwise until you no longer feel the threads turning. 2 Crown can be pulled out. Locking the crown 1 Push Crown back in to normal position. CROWN 2 Turn Crown clockwise while pressing it 1 Pull out to first click, and turn clockwise until the previous day’s date...
Page 4
CHRONOGRAPH Standard measurement CHRONOGRAPH STOP RESET START 1/5-second hand Start / Stop / Restart Accumulated elapsed time measurement RESTART START STOP STOP RESET CHRONOGRAPH minute hand Reset * If the CHRONOGRAPH hands are incorrectly positioned, follow the procedure below to reset the hands to the "0" position. STOP RESET START...
Page 5
on tachymeter scale: TACHYMETER “90” (tachymeter scale figure) x 2 (km or mile) = 180 km/h or mph “90” (tachymeter scale figure) x 0.5 (km or mile) = 45 km/h or mph [for models with tachymeter scale on the dial] To measure the hourly average speed of a vehicle To measure the hourly rate of operation Ex. 1 1 Use the stopwatch to measure the Ex. 1 1 Use the stopwatch to determine time required to complete 1 job.
NOTES ON OPERATING THE WATCH While the chronograph is counting, if the button B (reset) is pressed, the chronograph will continue counting. TIME SETTING If the crown is pulled out to the second click while the chronograph is counting, the CHRONOGRAPH hands will continue to move.
When the battery expires, be sure to replace it as soon as possible to prevent CROWN position. any malfunction. We recommend that you contact an AUTHORIZED PULSAR DEALER for battery * The small second hand replacement. will move in two-second intervals for ten seconds.
Page 8
Water resistance (10 bar/15 bar/20 CAUTION have it checked by an AUTHORIZED PULSAR bar)* If “WATER RESISTANT 10 BAR”, DEALER or SERVICE CENTER. The battery is not rechargeable. Never attempt to recharge it, as this “WATER RESISTANT 15 BAR” or l Water resistance (3 bar) may cause battery leakage or damage to the battery.
* Before using the water resistance 5, 10, 15 or 20 bar watch in water, be sure the MAGNETISM CARE OF CASE AND BRACELET crown is pushed in completely. Do not operate the crown when the watch is wet or in water. If used in sea water, To prevent possible rusting Your watch will be adverse- rinse the watch in fresh water and dry it completely.
