Pulsar VK83 Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Calibre of two hands with 1/5 second chronograph hand,
small second, small chronograph minute, and small 24-hour
indicators, and date window
TIME/CALENDAR
l Hour and minute hands with small second and 24-hour hands
l Date displayed in numerals
CHRONOGRAPH
l Measures up to 20 minutes in 1/5 second increments
CAL. VK83
CHRONOGRAPH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK83 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar VK83

Summary of Contents for Pulsar VK83

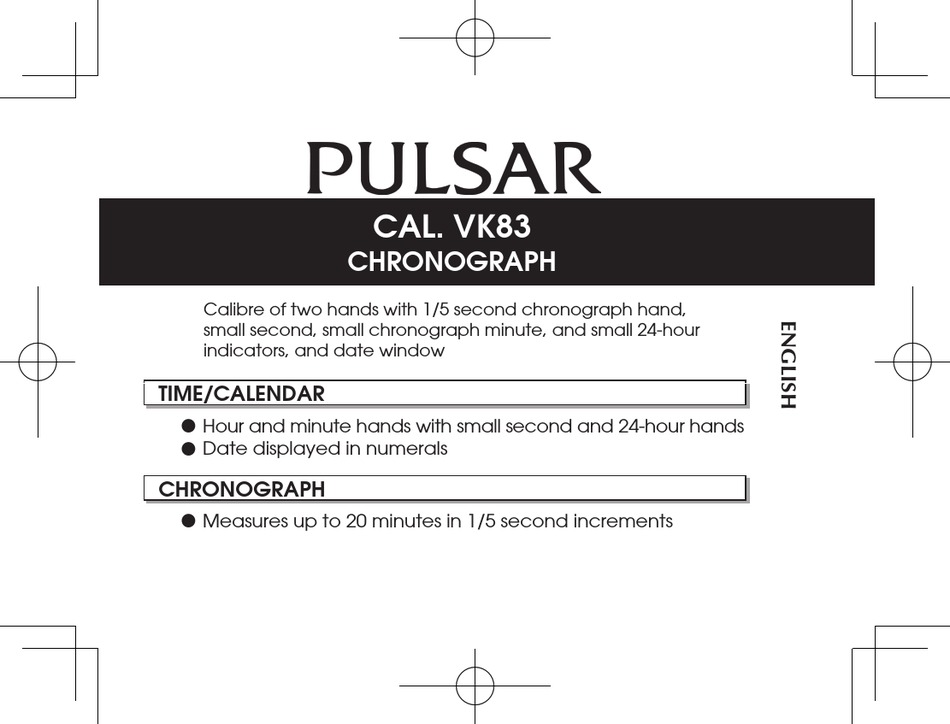

  • Page 1 CAL. VK83 CHRONOGRAPH Calibre of two hands with 1/5 second chronograph hand, small second, small chronograph minute, and small 24-hour indicators, and date window TIME/CALENDAR l Hour and minute hands with small second and 24-hour hands l Date displayed in numerals CHRONOGRAPH l Measures up to 20 minutes in 1/5 second increments...

  • Page 2: Screw Down Crown

    SCREW DOWN CROWN DISPLAY AND CROWN/BUTTONS [for models with screw down crown] CHRONOGRAPH Unlocking the crown 1/5-second hand Minute hand Hour hand 1 Turn Crown counterclockwise until you no longer feel the threads turning. 2 Crown can be pulled out. CHRONOGRAPH 20-minute hand Locking the crown 1 Push Crown back in to normal position. CROWN 2 Turn Crown clockwise while pressing it lightly until tight.

  • Page 3: Time/Calendar Setting

    CHRONOGRAPH TIME/CALENDAR SETTING CHRONOGRAPH Start / Stop / Restart 1/5-second hand 10 15 CHRONOGRAPH Reset 20-minute hand CROWN 1. Pull out to first click, and turn clockwise until the desired date appears. l The CHRONOGRAPH can measure up to 20 minutes in 1/5 increments. 2. Pull out to second click when small second hand is at the 12 o'clock l After 20 minutes, the CHRONOGRAPH will stop counting. position. l Before using the CHRONOGRAPH, be sure to check that the CROWN is set at the normal position and that the CHRONOGRAPH hands are 3. Turn to set hour and minute hands (Check that AM/PM is set correctly). reset to the "0" position. 4. Push back in to normal position in accordance with a time signal.

  • Page 4: Notes On Operating The Watch

    NOTES ON OPERATING THE WATCH Standard measurement TIME SETTING START RESET STOP l If the CROWN is pulled to the second position while the CHRONOGRAPH is started, the CHRONOGRAPH hands will continue to move. This is not a malfunction. Accumulated elapsed time measurement l When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired time and then turn it back to the exact minute. 24-HOUR SETTING START STOP RESET STOP/ RESTART l When the time is set, the 24-hour hand move correspondingly with the hour and ** Restart and stop of the CHRONOGRAPH can be repeated as many times as minute hands.

  • Page 5: Battery Change

    CROWN Push back in to nor mal l We recommend that you contact an AUTHORIZED PULSAR DEALER for position. battery replacement. * It is not necessary to set the CHRONOGRAPH hands after the battery is exchanged. * The small second hand will move at two second interval for 10 seconds.
  • Page 6 CAUTION l Water resistance (10 bar/15 bar/20 the watch becomes wet, we suggest that you bar)* have it checked by an AUTHORIZED PULSAR If “WATER RESISTANT 10 BAR”, The battery is not rechargeable. Never attempt to recharge it, as this DEALER or SERVICE CENTER. “WATER RESISTANT 15 BAR” or may cause battery leakage or damage to the battery.

  • Page 7: Periodic Check

    * Before using the water resistance 5, 10, 15 or 20 bar watch in water, be sure the CARE OF CASE AND BRACELET MAGNETISM crown is pushed in completely. Do not operate the crown when the watch is wet or in water. If used in sea water, Your watch will be ad- To prevent possible rusting of rinse the watch in fresh water and dry it completely. versely affected by strong the case and bracelet caused * When taking a shower with the water resistance 5 bar watch, or taking a bath with magnetism. Keep it away by dust, moisture and perspi- the water resistance 10, 15 or 20 bar watch, be sure to observe the following: from close contact with ration, wipe them periodically • Do not operate the crown when the watch is wet with soapy water or shampoo. magnetic objects. with a soft dry cloth. • If the watch is left in warm water, a slight time loss or gain may be caused. This PERIODIC CHECK SHOCKS & VIBRATION condition, however, will be corrected when the watch returns to normal tem- perature.
