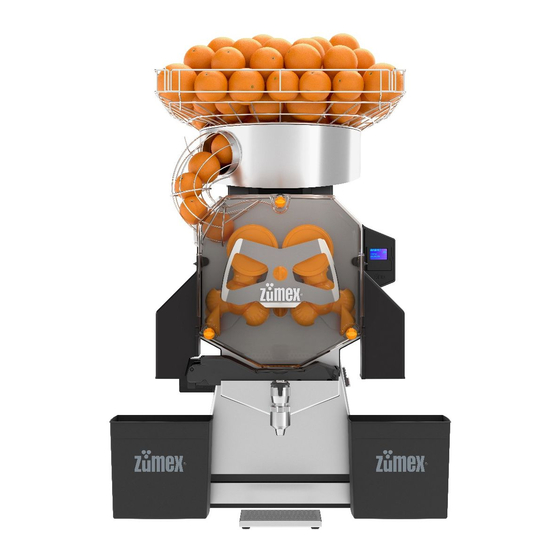

ZUMEX Speed S +Plus Disassembly Instructions

CLEANING PROTOCOL
This cleaning protocol* guarantees an efficient, hygienic cleaning process, free from
bacteria, even when the equipment is very dirty.
By means of this process, you will also contribute to the proper preventive maintenance
of your Speed S +Plus.
Below are the steps to follow to fulfil the protocol with success.
① Utensils required for effective cleaning:
·
Zumex Citric Active
·
Disinfectant: Hydroalcoholic at a concentration of 0.91g/ml
·
Clean or new sponge (of a material that does not scratch the machine surfaces)
·
Clean disposable paper
·
Wash point
·
Brush supplied (for the cleaning points which require it)
NOTE: The brush must be cleaned and sanitised by following the instructions below.
② Steps required for effective cleaning:
Sobre la zona de circulación de zumo, deberemos seguir los pasos específicos para garantizar una máxima higiene:
1. Apply Zumex Citric Active
2. Rinse with water.
3. Apply a hydroalcoholic disinfectant with a concentration of 0.91g/ml and leave to rest for 1 minutes.
4. Rinse with water.
5. Final drying of each of the parts and recesses.
Zumex Group S.A. Tel. +34 961 301 251. zumex@zumex.com. Zumex Service Tel: +34 960 800 999.
detergent
TM
to remove wax and pulp. Leave to act 30 seconds and remove the dirt with a sponge.
TM
Speed S + Plus (v.00) cleaning instruction validation report
performed by an independent laboratory with report number
IFSC243 / 19Rev3.
