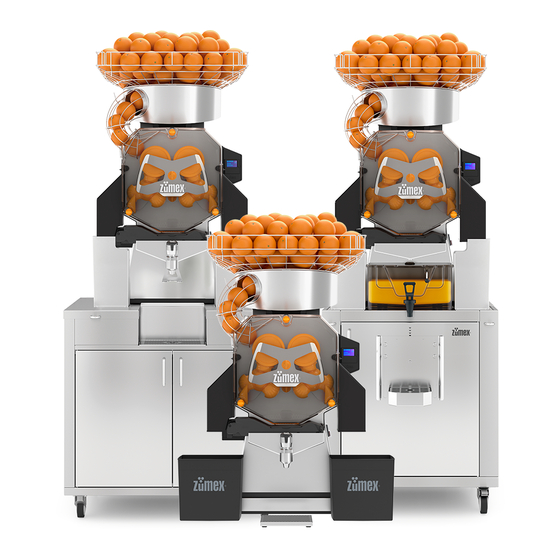

ZUMEX Speed Pro + Plus Cleaning Instructions

Cleaning instructions
1
Take off the feeder basket.
4
Turn the knobs and take off the front cover
as well as the side outputs.
7
Remove the stainless-steel peel guides.
10
Remove the Pressing Kit by pulling it
towards you with the stainless-steel hand-
les.
13
Remove the waste trolleys from the base
to empty them.
The cleaning process will be explained in details for each one of the machine's components below.
Zumex Group S.A. Tel. +34 961 301 251. Fax. +34 961 301 255. zumex@zumex.com. Zumex Service Tel: +34 960 800 999.
Caution!
below. Before getting started, make sure that the machine is nplugged
from mains power.
2
Take off the feeder plate by unscrewing the
central knob.
5
Take off the automatic PulpOut System, by
lifting the assembly with the part closest to
you.
8
Press the side tabs to remove the bin.
11
Remove the blade by pressing on the centre
and pulling the handle towards you.
Caution! Be careful not to cut yourself.
14
Clean inside the base with a soft sponge.
For a correct cleaning process, please follow the instructions
3
Insert the cleaning brush into the Drain&Clean
hole in the base of the feeder, removing any
residue that you may find in the tube.
6
Remove the 2Services tap by easily un-
screwing it.
9
Unscrew the central knob of the Pressing
Unit.
12
!
Clean the front part of the machine with a
soft sponge.
15
Once all the parts have been disassembled,
proceed to deep clean the machine.
