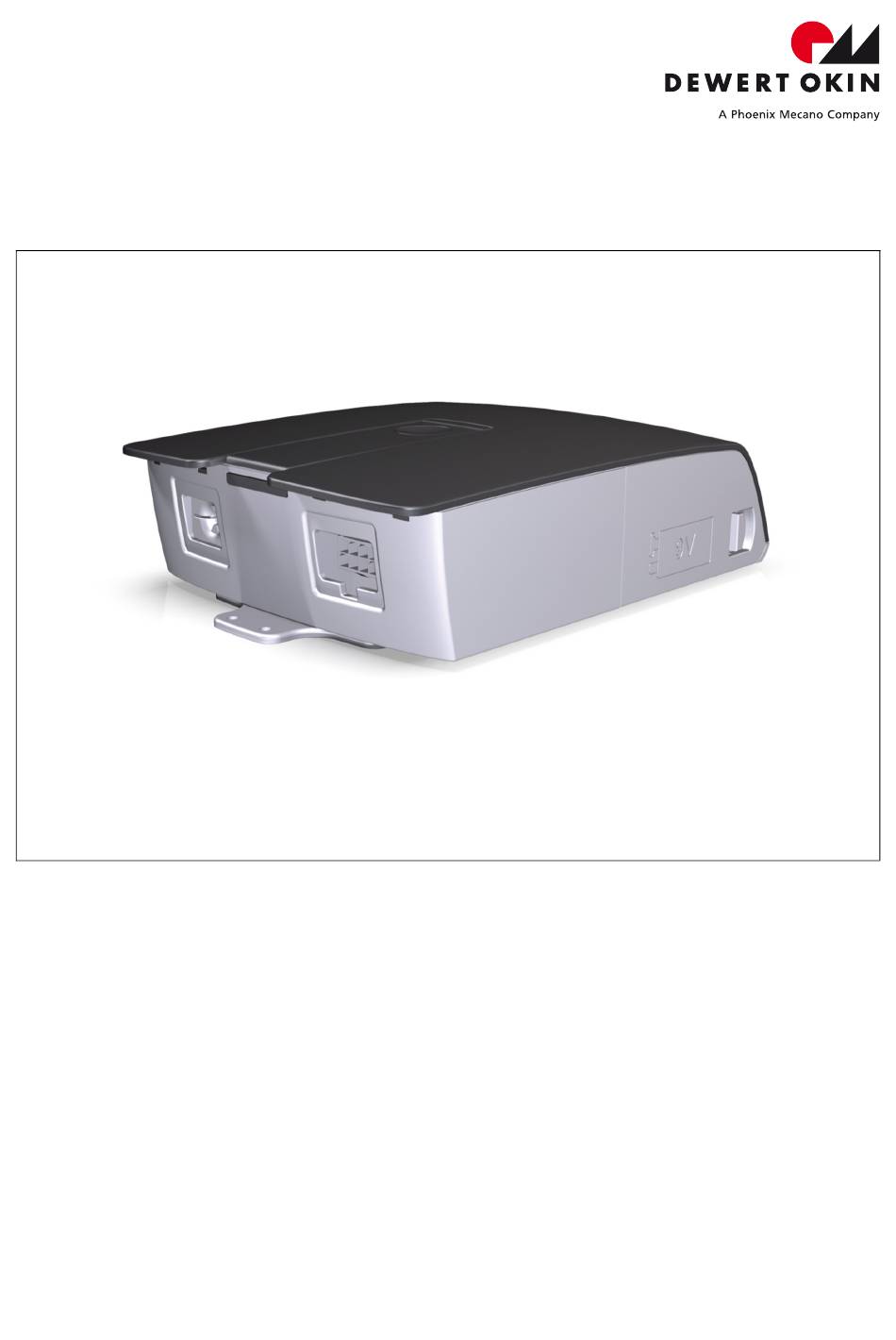

- Page 1 HE-300 SMPS POWER SUPPLY Installation Instructions (Translation of the original installation instructions)
-
Page 3: Foreword
HE-300 SMPS POWER SUPPLY Foreword Foreword Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: failure to observe these instructions, changes made to this product which have not been approved by DewertOkin, or the use of replacement parts which have not been approved or manufactured by DewertOkin. ... -
Page 4: Table Of Contents
Table of contents HE-300 SMPS POWER SUPPLY Table of contents Foreword Disclaimer and exclusion of liability Creation of a complete operating instruction manual for the entire end product Table of contents General Information Conventions used ... -
Page 5: General Information
HE-300 SMPS POWER SUPPLY General Information General Information These installation instructions must be followed closely in order to install the HE-300 SMPS POW- ER SUPPLY successfully and safely in the end product. These instructions are not an operating manual for the end product. These instructions will help you to minimize danger. -
Page 6: Safety Notices
Safety notices HE-300 SMPS POWER SUPPLY Safety notices Proper and intended usage The HE-300 SMPS POWER SUPPLY is intended for use: as a power supply unit for suitable DewertOkin drive systems, CAUTION Risk of accident This HE-300 SMPS POWER SUPPLY should only be used for the applications described above. Any other use is forbidden. -
Page 7: Selection And Qualification Of Personnel
HE-300 SMPS POWER SUPPLY Safety notices Optional: battery-operated reset function NOTICE The battery-operated reset function is not a safety system and does not avert danger. DewertOkin does not guarantee that the drive will function in the event of a power outage. If the end-product manufacturer chooses to guarantee the functionality of the end product during a power outage, then the end-product manufacturer is responsible for arranging a mechanism to en- sure this functionality. -
Page 8: Ratings Plate
Safety notices HE-300 SMPS POWER SUPPLY Ratings plate The ratings plate shown is an example; the specifications for your HE-300 SMPS POWER SUPPLY may differ from this illustration. Figure 1 Ratings plate for the HE-300 SMPS POWER SUPPLY (example) HE-300 SMPS Model name xxxxx... -
Page 9: Description

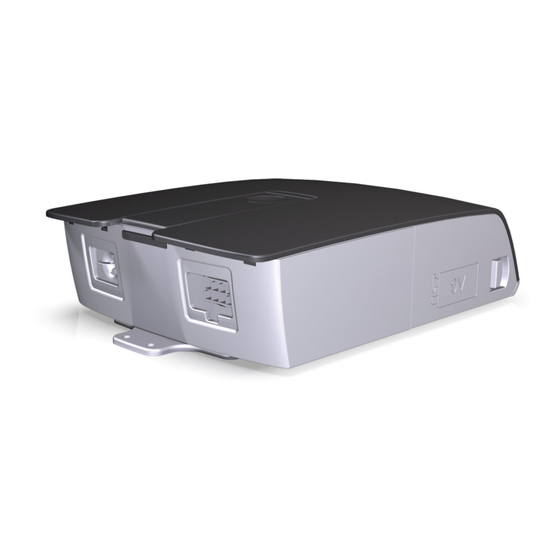

HE-300 SMPS POWER SUPPLY Description Description The HE-300 SMPS POWER SUPPLY is an external power supply unit intended to supply power to drives and controllers from DewertOkin. The HE-300 SMPS POWER SUPPLY is connected to the mains power by using a mains power cord. The HE-300 SMPS POWER SUPPLY has a non- referenced (unearthed) circuit which is separated from the supply voltage by means of doubled re- inforced insulation. - Page 10 Description HE-300 SMPS POWER SUPPLY 3.1.1 Mains power supply connection CAUTION Electric shock Please follow these operating instructions carefully. You could be injured by fire or electrical shock if you do not follow these assembly instructions. Optional: Power cord The optional power cord is included for your region (either EURO continental Europe, the UK or Australia).
- Page 11 HE-300 SMPS POWER SUPPLY Description 3.1.2 Nine-volt batteries for reset function independent of mains power supply The battery compartment in the HE-300 SMPS POWER SUPPLY holds two nine-volt batteries. The batteries are required if you need to use the battery-operated drive reset function (not dependent on the mains).
-
Page 12: Technical Specifications
Technical specifications HE-300 SMPS POWER SUPPLY Technical specifications POWER SUPPLY Mains power supply connection 100 – 240 V AC 50/60 Hz Output voltage Max. 29 V DC Output current Max. 5.00 A for intermittent duty of 2 min / 18 min Primary fuse Standby (no load) ≤... - Page 13 HE-300 SMPS POWER SUPPLY Technical specifications Figure 4 Dimensions of the HE-300 SMPS POWER SUPPLY, in mm, top view Figure 5 Dimensions of the HE-300 SMPS POWER SUPPLY, in mm, side view 79825(-)
-
Page 14: Installation
Installation HE-300 SMPS POWER SUPPLY Installation Safety notices to observe during installation Basic safety rules must be followed in order to ensure that the end product can be continually op- erated in a safe manner. These rules must be observed while using the end product and while in- stalling the HE-300 SMPS POWER SUPPLY in the end product. -
Page 15: Installation Procedure
HE-300 SMPS POWER SUPPLY Installation Installation procedure Before installing and connecting the HE-300 SMPS POWER SUPPLY, make sure that you are ob- serving all of the safety notices found in the "Safety notices to observe during installation" section. 5.2.1 Attaching the mounting plates Screws should be screwed into the five mounting points on the two mounting plates for attaching the HE-300 SMPS POWER SUPPLY to the end product. - Page 16 Installation HE-300 SMPS POWER SUPPLY 1 Screw the mounting plates firmly onto the HE-300 SMPS POWER SUPPLY SMPS (as shown in Figure 7). Use at least two screws for each of the two mounting plates. Figure 7 Attaching the mounting plates A Mounting plates B Screws 79825(-)
- Page 17 HE-300 SMPS POWER SUPPLY Installation 2 Tighten the screws on both mounting plates so the plates are firmly attached to the end product (as shown in Figure 8). Figure 8 Mounting the HE-300 SMPS POWER SUPPLY to the end product A Mounting plates B Screws 79825(-)
- Page 18 Installation HE-300 SMPS POWER SUPPLY 5.2.2 Electrical connection CAUTION Electric shock Electrical components should be connected or disconnected only when the power supply cord is unplugged. There is a delay after the supply voltage is applied before the device actually turns on. Wait at least seven seconds before beginning the commissioning.
- Page 19 HE-300 SMPS POWER SUPPLY Installation Changing the batteries The batteries are already connected when the unit is delivered. Replace the batteries after the re- set function has been executed once. Both batteries should be replaced at the same time. NOTICE Both batteries should be replaced/inserted at the same time.
- Page 20 Installation HE-300 SMPS POWER SUPPLY 2 Remove both batteries and unplug the battery terminal clips. 3 Connect the two new batteries to the battery clips. Be sure not to reverse the polarity. 4 Insert the connected batteries into the battery compartment. 5 Close the battery cover;...
- Page 21 HE-300 SMPS POWER SUPPLY Installation 5.2.3 Connections for the HE-300 SMPS POWER SUPPLY 1 Connect the HE-300 SMPS POWER SUPPLY to the DewertOkin control unit (e.g., the HE-300 or OKIMAT 8) as shown in Figure 11. Use the proper DewertOkin cable for this connection. 2 Insert the cable until you hear it snap in.
-
Page 22: Information About Creating Your Operating Manual
Information about creating your Operating Manual HE-300 SMPS POWER SUPPLY Information about creating your Operating Manual The factual information contained within may be used when you are creating the end-product man- ual. The installation instructions do not contain all information required for the safe operation of the end product. - Page 23 HE-300 SMPS POWER SUPPLY Information about creating your Operating Manual Reducing the risk of overheating with the thermal monitor CAUTION Risk of accident The HE-300 SMPS POWER SUPPLY is equipped with a thermal fuse that triggers when the unit overheats. If the temperature control has triggered, remove the HE-300 SMPS POWER SUP- PLY from the power supply, allow it to rest for 20 to 30 minutes and try again.
-
Page 24: Battery-Operated Reset Function
Information about creating your Operating Manual HE-300 SMPS POWER SUPPLY Battery-operated reset function The battery-operated reset function allows the drive system to be operated using the function key during a power outage. Two nine-volt batteries are used to power the HE-300 SMPS POWER SUPPLY in the event of an outage. -
Page 25: Troubleshooting
HE-300 SMPS POWER SUPPLY Troubleshooting Troubleshooting This chapter describes troubleshooting methods for fixing problems. If you experience an error that is not listed in this table, please contact your supplier. Only qualified specialists who have received electrician training should carry out troubleshooting and repairs. -
Page 26: Maintenance And Cleaning
Maintenance and cleaning HE-300 SMPS POWER SUPPLY Maintenance and cleaning Maintenance The HE-300 SMPS POWER SUPPLY requires no maintenance. Cleaning and care Clean the HE-300 SMPS POWER SUPPLY as needed using a dry cloth. NOTICE Always disconnect the mains power plug before you start to clean the drive! ... -
Page 27: Disposal
HE-300 SMPS POWER SUPPLY Disposal Disposal Packaging material The packaging material should be sorted into recyclable components and then disposed of in ac- cordance with the appropriate national environmental regulations (in Germany according to the re- cycling law KrWG from 01.06.2012; internationally according to the EU Directive 2008/98/EC (Waste Framework Directive WFD as of 12.12.2008)). -
Page 28: Eu Declaration Of Conformity
EU Declaration of Conformity EG-Konformitätserklärung In compliance with Appendix IV of the EMC-Directive Nach Anhang IV der EMV-Richtlinie 2014/30/EU 2014/30/EU In compliance with Appendix IV of the LVD-Directive Nach Anhang IV der EU-Niederspannungsrichtlinie 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. -
Page 29: Additional Information
Additional information HE-300 SMPS POWER SUPPLY Power cable recommended for use outside of the USA and Canada: Power cable (refer to IEC/EN 61558-1) Flexible cord type Conductor Number of Cord length (wire) cross- conductors Minimum Maximum section H05VV-F, H05VVH2-F, 0.75 mm² H05RR-F... - Page 30 DewertOkin GmbH Weststrasse 1 Kirchlengern 32278, Germany Tel: +49(0)5223/979-0 Fax.: +49 0 522375182 http://www.dewertokin.de Info@dewertokin.de ID No.: 79825...
