Summary of Contents for Helo Piccolo Trend

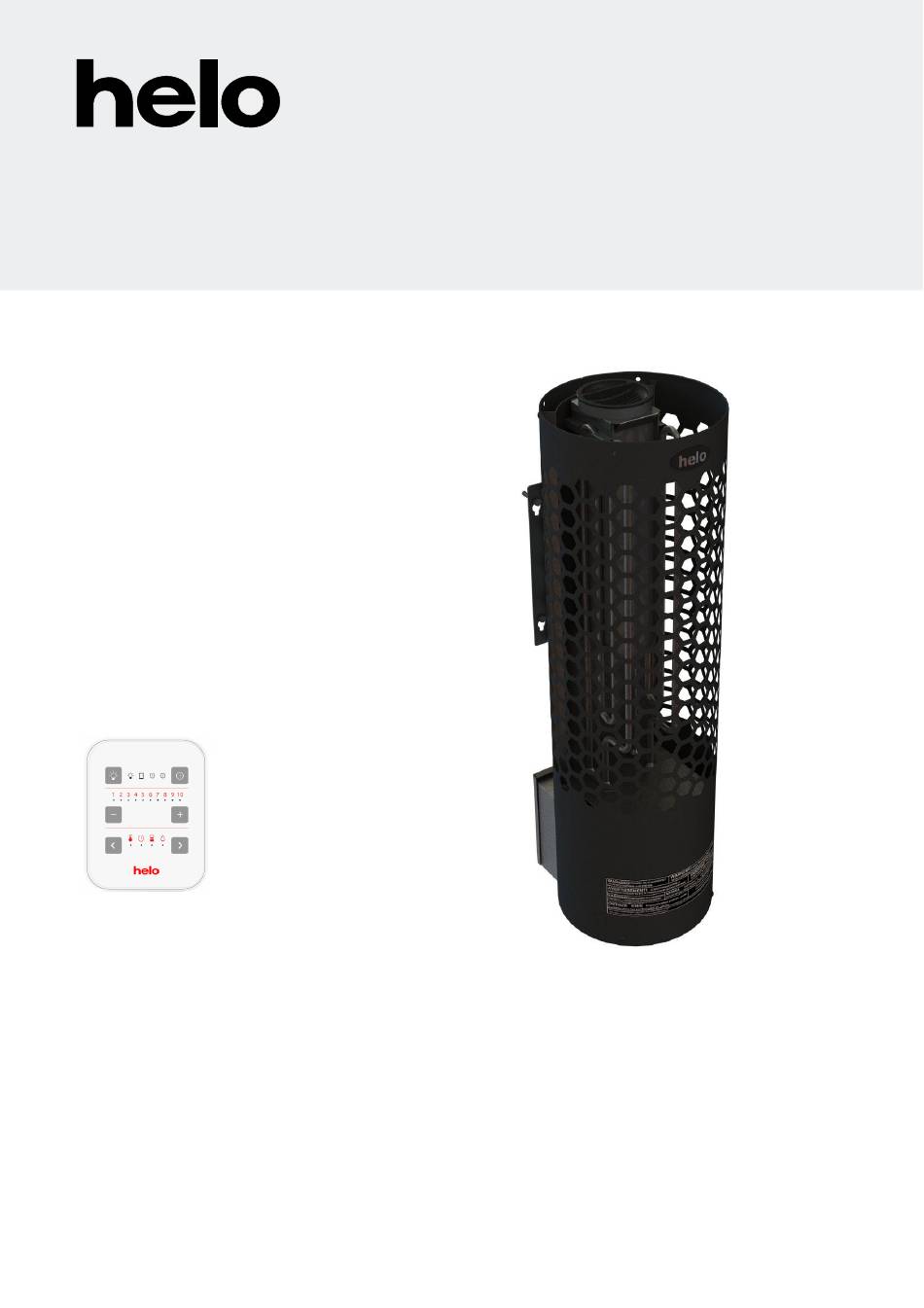

- Page 1 REWARD YOURSELF Installation and User Manual Piccolo Trend ELECTRIC SAUNA HEATER: 1217 – 30 – 040511 230V – 240V 1N~ / 2~ 400V – 415V 2N~ CONTROL PANEL: 1601 – 31 (RA – 31) Trend) 314 SKMS 2-3 A...
-
Page 2: Table Of Contents
2.13. Sauna heater stones 2.14. If the sauna heater will not heat up 2.15. BWT technology in a Piccolo Trend heater 2.16. Door switch 2.17. Principle image when 1601 - 31 (RA - 31 Trend) is used as control panel 3.Piccolo Trend spare part list... -
Page 3: Check Before Taking A Sauna Bath
Installation and User Manual Piccolo Trend 1. WARNINGS 1.1. Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely. -
Page 4: Preparing For Sauna Heater Installation
Installation and User Manual Piccolo Trend 2. Preparing for sauna heater installation Check the following before installing the sauna heater. - The ratio of the heater's input (kW) and the sauna room's volume (m ). Volume recommendations are presented in Table 1 on page 5. -
Page 5: Sauna Heater Safety Clearances
Installation and User Manual Piccolo Trend 2.4. Sauna heater safety clearances Output Sauna rom Heater minimum clearances Amount of stones Volume Height From From To ceiling To floor side to front to wall sauna bench min. max. m³ m³ min. mm In kg, approx. -
Page 6: Connection Of The Sauna Heater To The Mains
Installation and User Manual Piccolo Trend 2.5. Connection of the sauna heater to the mains The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations. The sauna heater is connected with a semi-permanent connection. Use H07RN-F (60245 IEC 66) cables or a corresponding type. -
Page 7: Locating The Connecting Box For The Connection Cable In The Sauna Room
Installation and User Manual Piccolo Trend 2.7. Locating the connecting box for the connection cable in the sauna room A = Specified minimum safety clearance 1. Recommended location for the connecting box 2. Silumin box recommended in this area. 3. This area should be avoided. Always use a silumin box. -
Page 8: Door Switch
The switch part is installed on the door frame and the magnet is installed on the door. The distance between the switch and the magnet is 18 mm. When the door switch is installed on the top part of the door, TylöHelo recommends using the TylöHelo model with product number 0043233, SSTL 8260371. -
Page 9: Wiring Diagram
Installation and User Manual Piccolo Trend 2.10. Wiring diagram Входное Teho, Effekt, Lämpövastukset, Värmeelement, Tennid, Heating elements, Input, Potencia Heizeelement, Resistores Térmicos, Éléments chauffants, Leistung, Moc Elementy grzewcze, Element riscaldant , Kütteelement Vöimsus,Wejscie ТЭНы Varmelegemer, Fûtõelemek, 230 V Puissance, Ingresso... -
Page 10: Recommended Sauna Room Ventilation
Installation and User Manual Piccolo Trend 2.11. Recommended sauna room ventilation 1000 mm 500 mm Figure 12 Rekommended sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7. -
Page 11: Sauna Heater Stones
Installation and User Manual Piccolo Trend 2.13. Sauna heater stones Quality stones meet the following requirements: Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the stones. Stones should be rinsed before use in order to avoid odour and dust. -
Page 12: Bwt Technology In A Piccolo Trend Heater
Installation and User Manual Piccolo Trend 2.15. BWT technology in a Piccolo Trend heater Bio Water Technology (BWT) uses the heater's thermal energy to heat water and raise the moisture level without a separate heat source. Moisturised air improves the sauna climate, and various fragrances and salts can be evaporated to make the sauna experience more enjoyable. -
Page 13: Principle Image When 1601 - 31 (Ra - 31 Trend) Is Used As Control Panel
Installation and User Manual Piccolo Trend 2.17. Principle image when 1601 - 31 (RA - 31 Trend) is used as control panel Sensor cable silicone 4 x 0,25 mm² Heater Limiter Adapter circuit 1= Blue OLET 31 board OLEA 99... -
Page 14: Piccolo Trend Spare Part List
Fuse 3,15 AT 7817536 Fuse holder 6101741 Rocker switch OAAA 2 7306008 Rubber cover for rocker switch Heating element SEPC 235 5208822 1500W/230V Screw 7513002 M5 x 10 Vater container SP4056305 Cover SP4056306 Table 5 Piccolo Trend spare parts list... -
Page 15: Rohs
Installation and User Manual Piccolo Trend 4. ROHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen...
