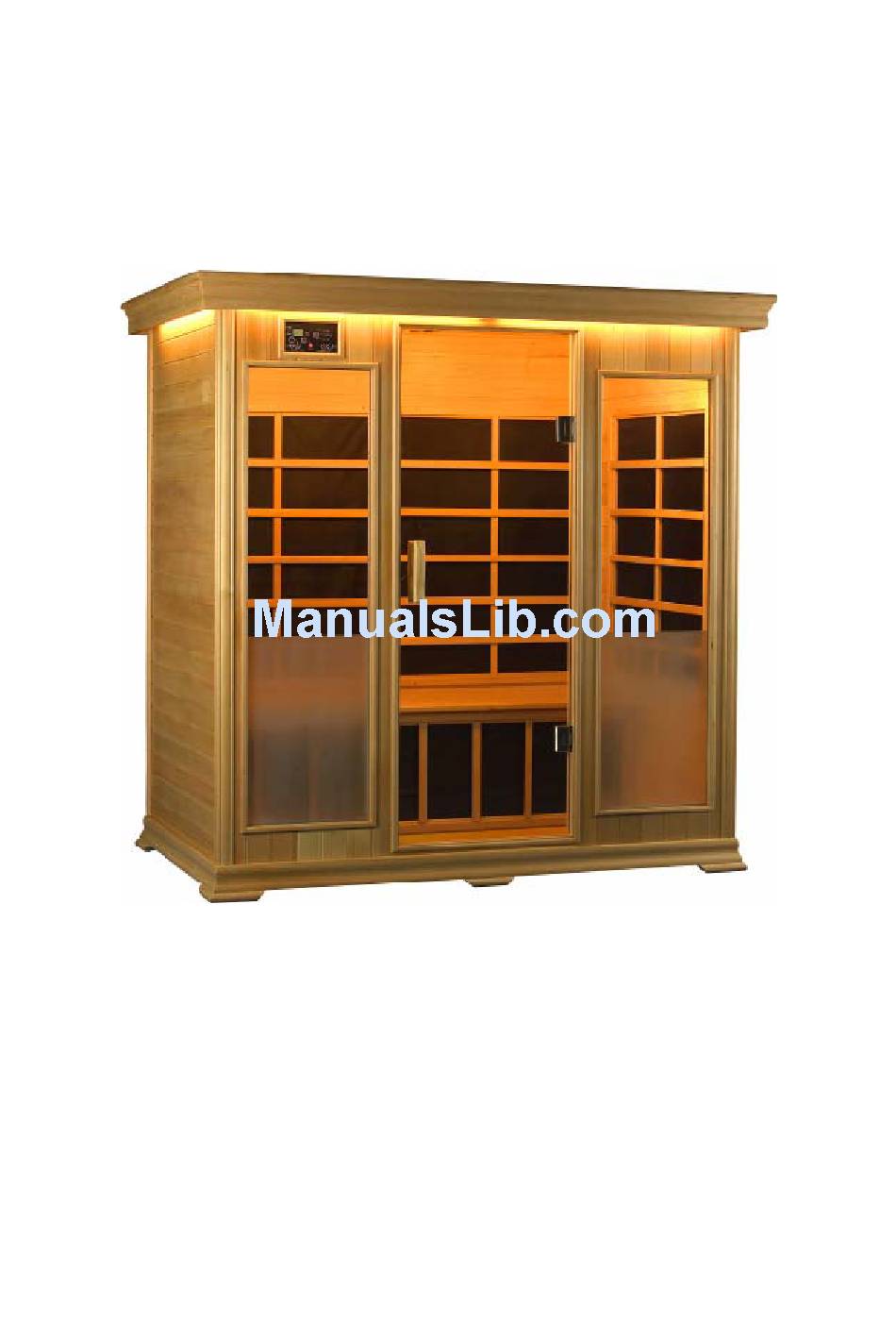

INFRARED WOODEN SAUNA ROOM INSTRUCTION MANUAL
Read all instructions carefully before using the wooden infrared sauna room
IG-630 EX/E300-X
Important: Please record your serial number here__________
T I P S A N D T R I C K S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
P R E C A U T I O N S F O R U S E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
R E A D B E F O R E I N S TA L L AT I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION OF SAUNA ROOM BODY ..............................................5-8
I N S TA L L AT I O N O F M A G A Z I N E R A C K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0
C O L O R L I G H T T H E R A P Y S Y S T E M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1
WARNINGS AND SUGGESTIONS FOR USE............. .............................11
C L E A N I N G A N D S T O R A G E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2
S P E C I F I C AT I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2
S A U N A C I R C U I T D I A G R A M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3
IG 630-EX/E300-X-3
0
09/18/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Helo IG-630 EX
Summary of Contents for Helo IG-630 EX
-
Page 1: Table Of Contents
INFRARED WOODEN SAUNA ROOM INSTRUCTION MANUAL Read all instructions carefully before using the wooden infrared sauna room IG-630 EX/E300-X Important: Please record your serial number here__________ T I P S A N D T R I C K S ............1 P R E C A U T I O N S F O R U S E . - Page 2 Important Information about your new Infrared Sauna Infrared Saunas have a typical operating range of 110°F (42°C) to about 135°F (58°C). This lower heat range is ideal for persons with cardiovascular risks or respiratory ailments and does not dry out mucus membranes like a traditional sauna that typically runs from 150°F to 170°F. Also, Infrared energy is the same energy produced by the Sun and thus does not heat the air, rather it heats objects in the room.
-
Page 3: S P E C I F I C At I O
ATTENTION ※Read all instructions before using this appliance. ※Serious injury may result if warnings and instructions below are not observed. ※When using an electrical appliance, basic precautions should always be followed, including the following: DANGER To reduce the risk of burns, fire, electric shock, or injury to persons. ※Connect the power cord to a properly grounded outlet only. -
Page 4: Parts Names
PARTS NAMES Vent IG 630-EX/E300-X-3 09/18/09... -
Page 5: Read Before Installation
READ BEFORE INSTALLATION: ※ Each panel is heavy. Be careful to avoid injury when installing, especially the top panel. ※ Two adults are required for the installation of sauna room. ※ There are metal plates with pins or a slots on the sides of each panel. They will be interlock the panels together. -
Page 6: Installation Of Sauna Room Body
INSTALLATION OF SAUNA ROOM BODY 1. Place the floor panel in the desired location on a level surface (Note: The floor panel must be level before installing wall and ceiling panels. If the surface is not level you may need to shim the bottom panel to get level.) ※... - Page 7 5. Place the Bench Support panel first and then place the Bench surface panel into the sauna room. ※ On larger sauna rooms with more than one bench, rotate the wooden bench supports away from the side walls. ※ Slide the Bench Support Pa nel down the wooden supports with the heater facing out.
- Page 8 Picture 3 Picture 4 Picture 5 6. Place the front panel in the slot of floor panel. 7. Place the top panel on the four side panels. Make sure the connection wires from the three side panels protrude through the corresponding holes of the top panel. ※...
- Page 9 8. Make sure each of the lead wires on the top of the left, right, back and front panels is protruding through the top panel; then plug each of the four lead wires into the four connectors of the top panel. WARNING: ELECTRIC SHOCK HAZARD Do not plug cord into electrical outlet before connecting the plugs.
-
Page 10: Installation Of Magazine Rack
INSTALLATION OF MAGAZINE RACK IG 630-EX/E300-X-3 09/18/09... -
Page 11: C O N T R O L Pa N E L I N S T R U C T I O
CONTROL PANEL INSTRUCTION 1.Press “POWER”to switch on or off. 2.“TIME”refers to control of operating time and indicates the amount of time remaining. ※Once power is on, the default amount of operating time is at 45 minutes. ※Press “UP” and “DOWN” to adjust and set time of use; pressing once will increase or reduce in 5 minute increments. -
Page 12: Warnings And Suggestions For Use
OPERATING INSTRUCTIONS FOR COLOR LIGHT THERAPY SYSTEM 1. To activate the color light therapy system press “ADJUST” on the sauna control panel. Upon turning the system on, the color light system will go into an automatically cycling mode, changing color every 8 seconds: 2. - Page 13 CLEANING Clean the outside and inside with a damp cloth, or clean with a small amount of hand-soap mixed with warm water if necessary. Do not use benzene, alcohol, or strong cleaning chemicals on sauna. Note: Some chemicals can damage wood material and the protection layer that is on the outside wood surface.
