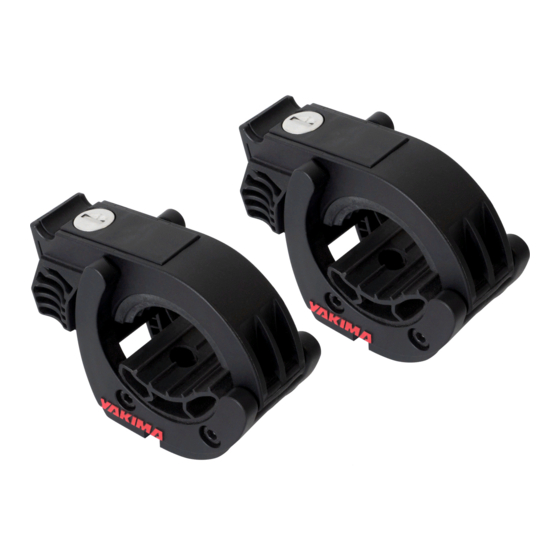

Yakima AceO’Spades Quick Start Manual

Shovel holder
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

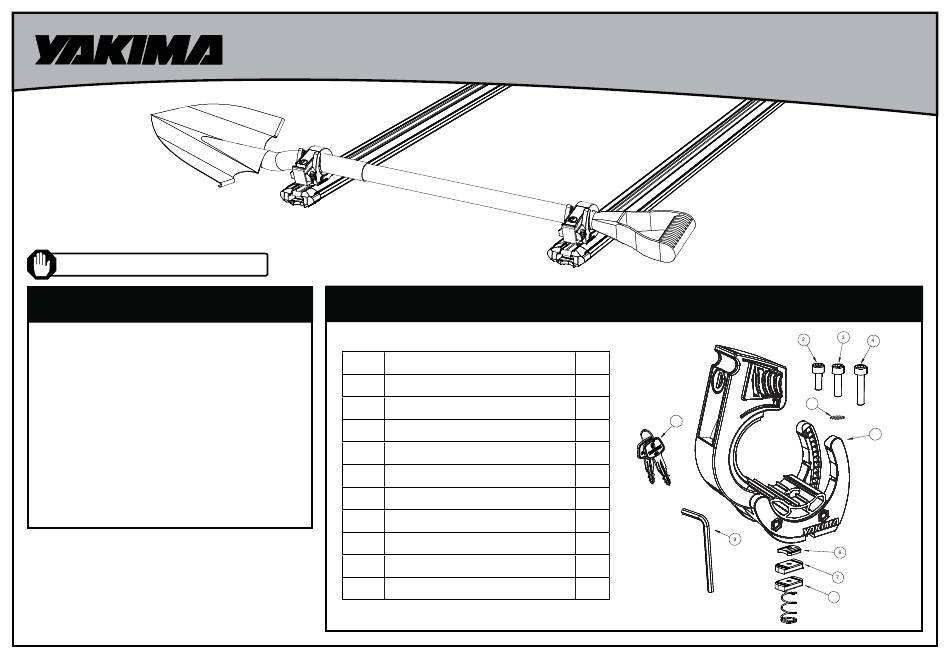

CROSSBARS AND SHOVEL SOLD SEPARATELY

FIRST TIME INSTALLATION

•
Please read instructions carefully before
•
Check the contents of kit. Contact your YAKIMA
dealer if any parts appear missing or damaged.
•
Clean your roof rack/platform prior to fi tting the
YAKIMA AceO'Spades Shovel Holder Kit.
•
Place these instructions in the vehicle's glove
box after installation is complete.
28-13-335-Rev4
ITEM COMPONENT
1.
Shovel Holder Assembly
2.
16mm Socket Head Capscrew
3.
20mm Socket Head Capscrew
4.
25mm Socket Head Capscrew
5.
Star Washer
6.
Slot Nut
7.
Tee Nut
8.
Spring Nut
9.
Allen Key
10.
YAKIMA Key Set
SHOVEL HOLDER

KIT CONTENTS

QTY
x2
x2
10
x2
x2
x2
x2
x2
x2
x1
x2
AceO'Spades
MAX LOAD RATING: 4KG
5
1
1/4
8
1/4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AceO’Spades and is the answer not in the manual?

Questions and answers

Related Manuals for Yakima AceO’Spades

Summary of Contents for Yakima AceO’Spades

  • Page 1 Please read instructions carefully before installation. ITEM COMPONENT Shovel Holder Assembly • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. 16mm Socket Head Capscrew 20mm Socket Head Capscrew • Clean your roof rack/platform prior to fi tting the 25mm Socket Head Capscrew YAKIMA AceO’Spades Shovel Holder Kit.
  • Page 2 The Allen Key can be used to assist Nut movement within the channel. 16mm NOTE - LOCKN’LOAD Platform pictured INSERT MOUNTING HARDWARE 25mm YAKIMA SHOWDOWN Install the Loosen then saddles into slide the inboard the slot, raise saddles all the...
  • Page 3 INSERT CAPSCREWS INTO SHOVEL HOLDERS Assemble 1 x Star Washer onto each Capscrew. Insert Capscrew assemblies through hole in the base of each Shovel Holder as shown. POSITION AND SECURE SHOVEL HOLDERS Line up Capscrews in the base of each Shovel Holder into the nuts in Platform/Bar channel.
  • Page 4 USAGE INSERT TOOL SECURE TOOL Insert tool or paddle down into Holders. Secure tool within the Shovel Holder by closing the top claw down over tool handle and pushing it down as far Ensure any blades are orientated towards the rear of the vehicle and facing up as it can go.
