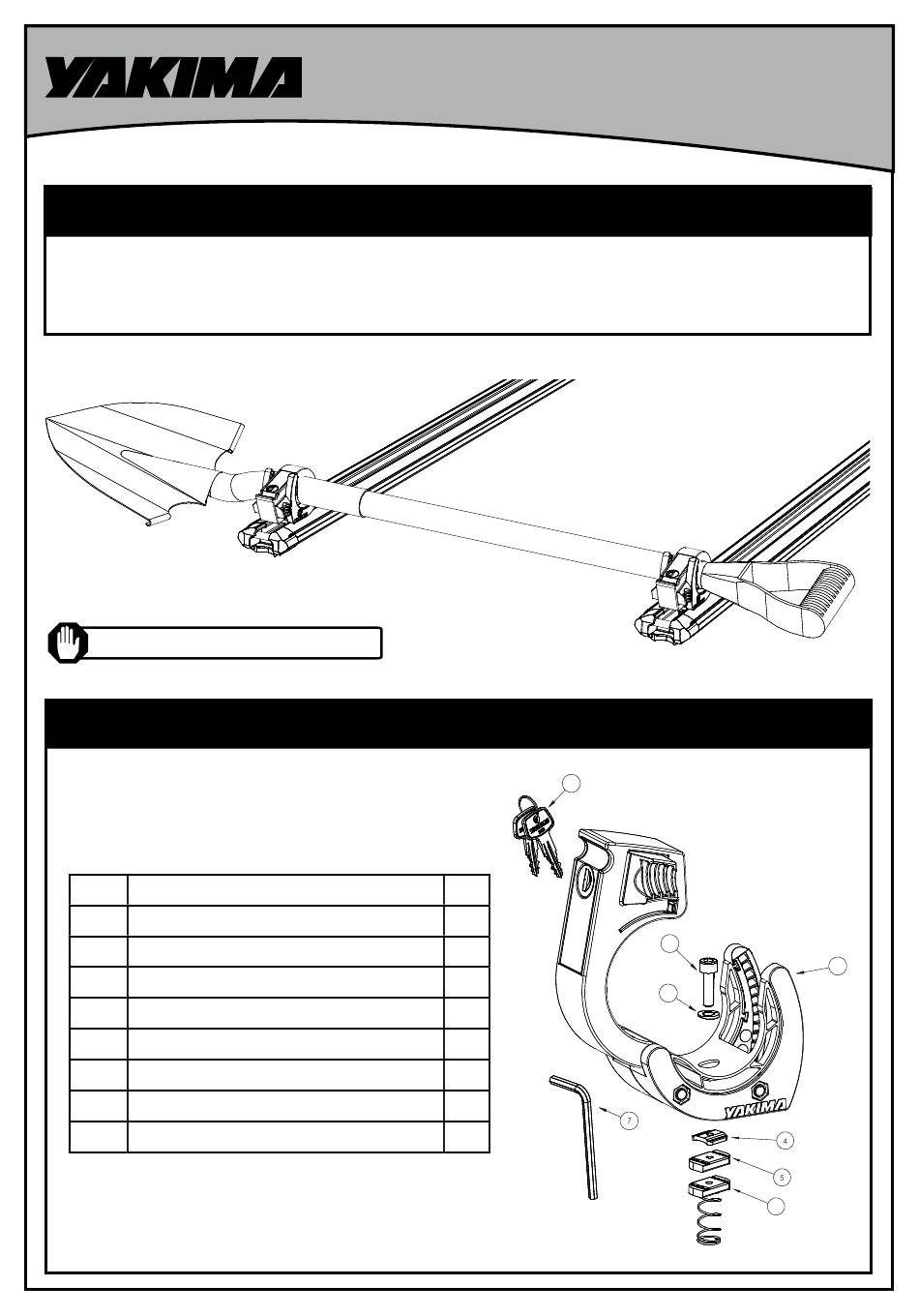

Please read instructions carefully before installation.
•
Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
•
Clean your roof rack/platform prior to fitting the YAKIMA AceO'Spades Shovel Holder Kit.
•
Place these instructions in the vehicle's glove box after installation is complete.
CROSSBARS AND SHOVEL SOLD SEPARATELY
ITEM COMPONENT
1.
Shovel Holder Assembly
2.
Socket Head Capscrew
3.
Spring Washer
4.
Slot Nut
5.
Tee Nut
6.
Spring Nut
7.
Allen Key
8.
YAKIMA Key Set
28-13-335-Rev1
®
FIRST TIME INSTALLATION
KIT CONTENTS
QTY
x2
x2
x2
x2
x2
x2
x1
x2
MAX LOAD RATING: 4KG
AceO'Spades
SHOVEL HOLDER
8
2
3
1
6
1/4
Advertisement
Related Manuals for Yakima AceO'Spades
Summary of Contents for Yakima AceO'Spades
- Page 1 FIRST TIME INSTALLATION • Please read instructions carefully before installation. • Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged. • Clean your roof rack/platform prior to fitting the YAKIMA AceO’Spades Shovel Holder Kit. •...
- Page 2 INSTALLATION SELECT CORRECT MOUNTING HARDWARE Select the correct mounting hardware option as shown. LOCKN’LOAD Platform and Whispbar S-Wing (including international T-slot crossbars) use M6 Slot Nuts. LOCKN’LOAD Bars (including Whispbar HD, Tradesman and other heavy duty crossbars) use M6 Spring Nuts. INSERT MOUNTING HARDWARE INSERT MOUNTING HARDWARE - PLATFORM...
- Page 3 Insert tool down into Shovel Holders. Ensure any blades are orientated towards the rear of the vehicle and facing up or away from you. The YAKIMA AceO’Spades Shovel Holder can accommodate long handled tools with a 30-55mm diameter including axes, rakes, brooms and oars to a maximum weight of 4kg.
- Page 4 SECURE TOOL Secure tool within the Shovel Holder by closing the top claw down over tool handle and pushing it down as far as it can go. The Rubber pad within the lower claw should be fully depressed to ensure a firm hold. If desired, lock Shovel Holders with Keys provided.
