Summary of Contents for Runva 11 XP

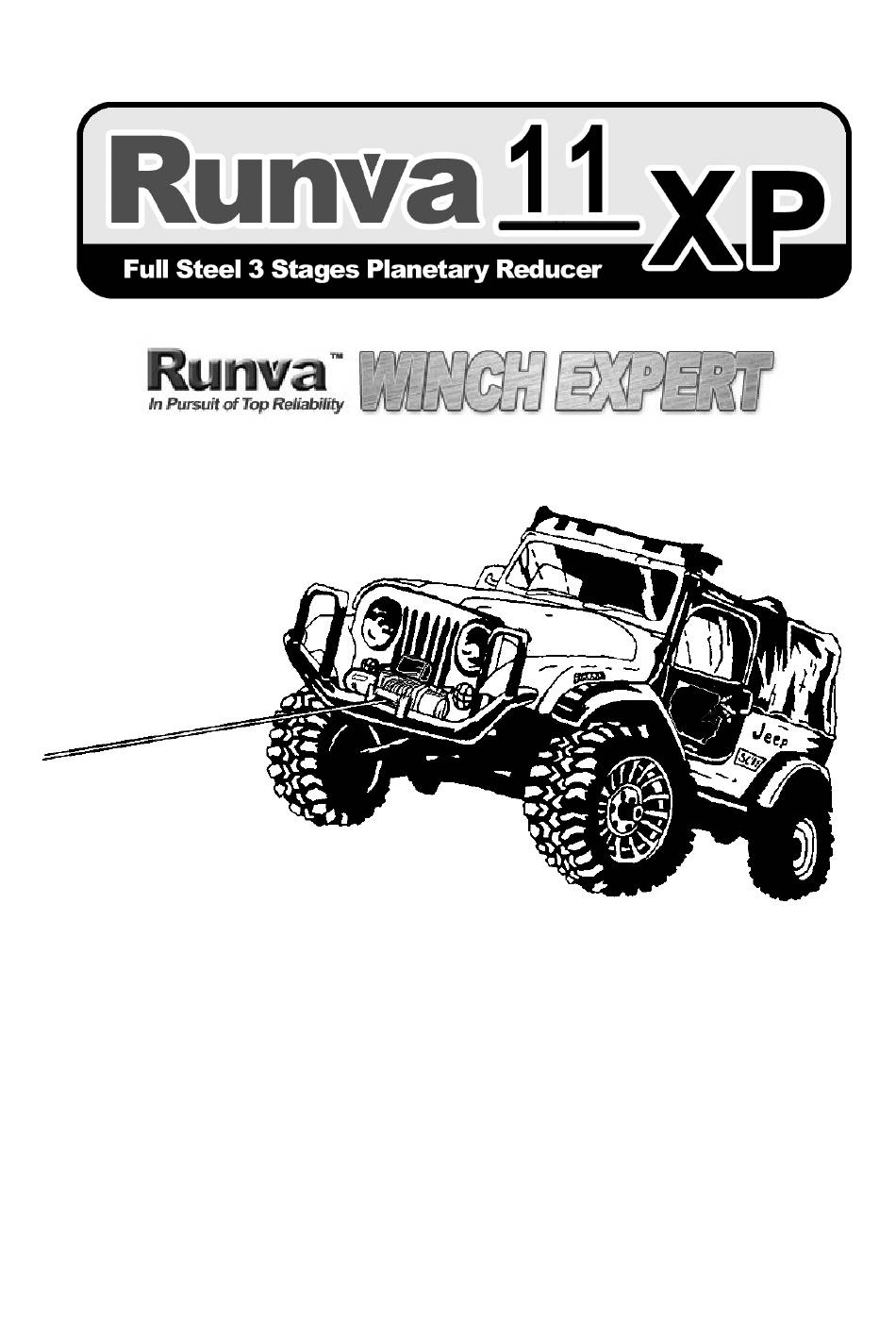

- Page 1 Warning! Read the Book Before Installation & Operation...
-
Page 2: Table Of Contents
CONTENTS WARNING! SAFETY PRECAUTIONS ............ 1 TROUBLESHOOTING ................6 WINCH ASSEMBLY DRAWING ............. 7 WINCH PARTS NUMBERS ..............8 SPECIFICATION ..................9 Wiring Instruction (Factory Installed) -
Page 3: Contents Warning! Safety Precautions
Warning (Keep This Paper) About Using/Replacing The Steel Cable For The Winch Spray Lube / Grease on Winch Cable Regularly Start each pull with a minimum of 5 wraps around the drum 3. Use the bottom 2 layer for max efficiency Cut The Cable To The Length You Will Need (Otherwise Not Efficiency) ... -
Page 8: Troubleshooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION -Switch Assembly not -Insert switch assembly all the way into the connected properly connector. -Loose battery cable -Tighten nuts on all cable connections. connections Motor does not -Replace switch assembly. -Defective switch turn on -Check for voltage at armature port with Switch assembly pressed. -
Page 9: Winch Assembly Drawing
WINCH ASSEMBLY DRAWING Runva 11XP... -
Page 10: Winch Parts Numbers
WINCH PARTS NUMBERS RUNVA 11XP Part # Description Remark X1100001 Terminal Protect X1100100-S Motor Assembly X1100002 Cap Screw M10 x 35 X1100003 Lock Washer Φ10 X1100004 Think Flat Washer Φ10 X1100005 Hex Nut M10 X1100200 Break / Shaft Assembly X1100006 Bushing—Drum... -
Page 11: Specification
SPECIFICATION Rated line pull 110000 lbs (4990 kgs) Motor: series wound 12V:Input: 4.9kW /6.5hp Gear reduction ratio 230:1 Cable (Dia.× L) Ø3/8"×85 ' (Ø9.2mm×26m) Drum size (Dia.× L) Ø2.48 "×8.8 " (Ø63mm×223 mm) Mounting bolt pattern 10 "×4.5 " (254mm×114.3 mm) 4-M10 Overall dimensions 21.3"×6.3"×10.7"...
