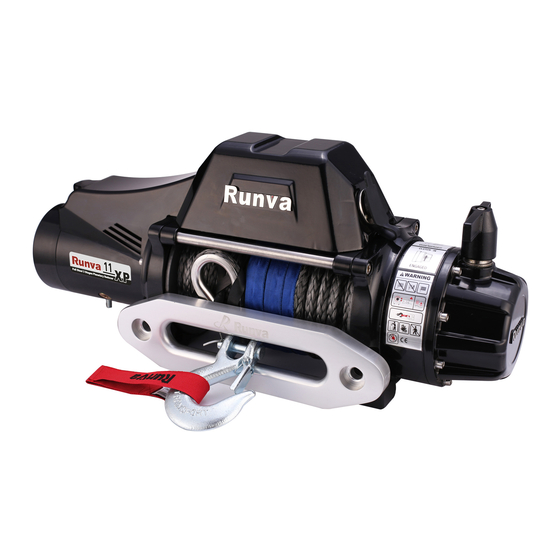

- Page 1 ELECTRICAL WINCH EWB9500 EWB11000 EWB12500 Runva and Laubjerg Vinsch AB Assembly & Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..................1 GETTING TO KNOW YOUR WINCH ............1 SAFETY PRECAUTIONS ............... 3 GENERAL TIPS FOR SAFE OPERATION..........4 WINCHING TECHNIQUES A-Z .............. 5 WINCH ASSEMBLY AND MOUNTING ..........7 MOUNTING DRAWING ................9 WINCH ACCESSORIES YOU WILL NEED ..........9 RIGGING TECHNIQUES ................ -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of a high quality winch. We design and build winches to strict specifications and with proper use and maintenance should bring you years of satisfying service. WARNING - Read, study and follow all instructions before operating this device. - Page 4 2. Motor: Your motor is powered by a 12/24 volt battery and provides power to the gear mechanism which turns the drum and winds the wire rope; 3. Winch Drum: The winch drum is the cylinder on which the wire rope is stored. It can feed or wind the rope depending on the remote winch switch.
-
Page 5: Safety Precautions
wire rope. We recommend you to use double line and snatch block for pulling over 70% of the rated line pull. SAFETY PRECAUTIONS WARNING WARNING – Do not exceed rated capacity shown in this table. WARNING – Intermittent use only. Allow winch to cool between uses. WARNING –... -
Page 6: General Tips For Safe Operation
cable to slide through your hands. Do not let your hands get within 12 in. of the winch while spooling. Turn off the winch and repeat the procedure until a few feet of cable is left. Disconnect the remote control and finish spooling by rotating the drum by hand with the clutch disengaged. -
Page 7: Winching Techniques A-Z
• The vehicle engine should be kept running during operation of the winch to minimize battery drain and maximize power and speed of the winch. If the winch is used for a considerable amount of time with the engine off, the battery may be drained and too weak to restart the engine. - Page 8 e. Pull out the wire rope to your desired anchor point using the hand saver hook. f. Secure the clevis hook to the anchor point: Sling, chain or snatch block. Do not attach the hook back onto the wire rope. g.
-
Page 9: Winch Assembly And Mounting
is tight. w. Keep your hands clear of the winch drum and fairlead as the wire rope is being drawn in. x. Secure the hook and hook strap. y. Disconnect the remote control and store in a clean, dry place. z. - Page 10 CAUTION – Batteries contain gases which are flammable and explosive. Wear eye protection during installation and remove all jewelry. Do not lean over battery while making connections. 6. Assemble the clevis hook to the cable. Take off the pin from the clevis hook, connect the clevis hook to the cable and mount the pin back to the clevis Hook.
-
Page 11: Mounting Drawing
MOUNTING DRAWING The mounting drawing U type F type WINCH ACCESSORIES YOU WILL NEED NOT INCLUDED WITH YOUR WINCH Gloves – For handling the wire rope and hook strap. Anchor Strap/Chain – Tree saver anchor straps are made of high quality nylon with high tensile strengths up to 15000lbs. -
Page 12: Winch Working Demonstration
CAUTION Do not winch from an acute angle as the wire rope will pile up on one side of the drum causing damage to wire rope and the winch. Fig 3.2 Fig 3.2 Short pulls from an angle can be used to straighten the vehicle. Long pulls should be done with the wire rope at a 90°... -
Page 13: Replacing The Wire Rope
4. Insert the switch assembly connector onto the control box. 5. Test-run winch in two directions, each direction for one or two seconds. 6. While standing aside of the tow path, hold and operate the switch assembly supplied by your choice. To reverse directions. Wait until the motor stops before reversing directions. -
Page 14: Trouble Shooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION -Switch Assembly not -Insert switch assembly all the way into the connected properly connector. -Loose battery cable -Tighten nuts on all cable connections. connections Motor does not -Replace switch assembly. -Defective switch turn on -Check for voltage at armature port with Switch assembly pressed. -
Page 15: Winch Assembly Drawing（Ewb9500U
WINCH ASSEMBLY DRAWING（EWB9500U/F）... -
Page 16: Winch Parts List（Ewb9500U
WINCH PARTS LIST（EWB9500U/F） Part # Description Remark Lock Washer Φ6 B0950001 B0950002 Screw M6x 20 B0950100 Motor Assembly B0950003 Ring Seals B0950004 Ring Seals B0950005 Motor Bracket Think Flat Washer Φ10 B0950006 Lock Washer Φ10 B0950007 B0950008 Cap Screw M10 x 35 B0950009 Hex Nut M10 B0950010... -
Page 17: Specification（Ewb9500U
SPECIFICATION（EWB9500U/F） Rated line pull 9500 lbs (4309 kgs) 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp Motor: series wound 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp Gear reduction ratio 228:1 Cable (Dia.× L) Ø3/8"×85 ' (Ø9.2mm×26m) Drum size (Dia.× L) Ø2.48 "×8.5 "... -
Page 18: Winch Assembly Drawing（Ewb11000U
WINCH ASSEMBLY DRAWING（EWB11000U/F）... -
Page 19: Winch Parts List（Ewb11000U
WINCH PARTS LIST（EWB11000U/F） Part # Description Remark Lock Washer Φ6 B1100001 B1100002 Screw M6x 20 B1100100 Motor Assembly B1100003 Ring Seals B1100004 Ring Seals B1100005 Motor Bracket Think Flat Washer Φ10 B1100006 Lock Washer Φ10 B1100007 B1100008 Cap Screw M10 x 35 B1100009 Hex Nut M10 B1100010... -
Page 20: Specification（Ewb11000U
SPECIFICATION（EWB11000U/F） Rated line pull 11000 lbs (4990 kgs) 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp Motor: series wound 24V:Input: 4.1kW / 5.5hp; Output: 3.0kW / 4.0hp Gear reduction ratio 228:1 Cable (Dia.× L) Ø3/8"×85 ' (Ø9.2mm×26m) Drum size (Dia.× L) Ø2.48 "×8.5 "... -
Page 21: Winch Assembly Drawing（Ewb12500U
WINCH ASSEMBLY DRAWING（EWB12500U/F）... -
Page 22: Winch Parts List（Ewb12500U
WINCH PARTS LIST（EWB12500U/F） Part # Description Remark Lock Washer Φ6 B1250001 B1250002 Screw M6x 20 B1250100 Motor Assembly B1250003 Ring Seals B1250004 Ring Seals B1250005 Motor Bracket Think Flat Washer Φ10 B1250006 Lock Washer Φ10 B1250007 B1250008 Cap Screw M10 x 35 B1250009 Hex Nut M10 B1250010... -
Page 23: Specification（Ewb12500U
SPECIFICATION（EWB12500U/F） Rated line pull 12500 lbs (5670 kgs) 12V:Input: 5.9kW / 7.9hp; Output: 2.4kW / 3.2hp Motor: series wound 24V:Input: 4.8kW / 6.4hp; Output: 3.1kW / 4.2hp Gear reduction ratio 228:1 Cable (Dia.× L) Ø13/32"×83.7 ' (Ø10.2mm×25.5m) Drum size (Dia.× L) Ø2.48 "×8.5 "...
