Summary of Contents for Runva 9.5 XS

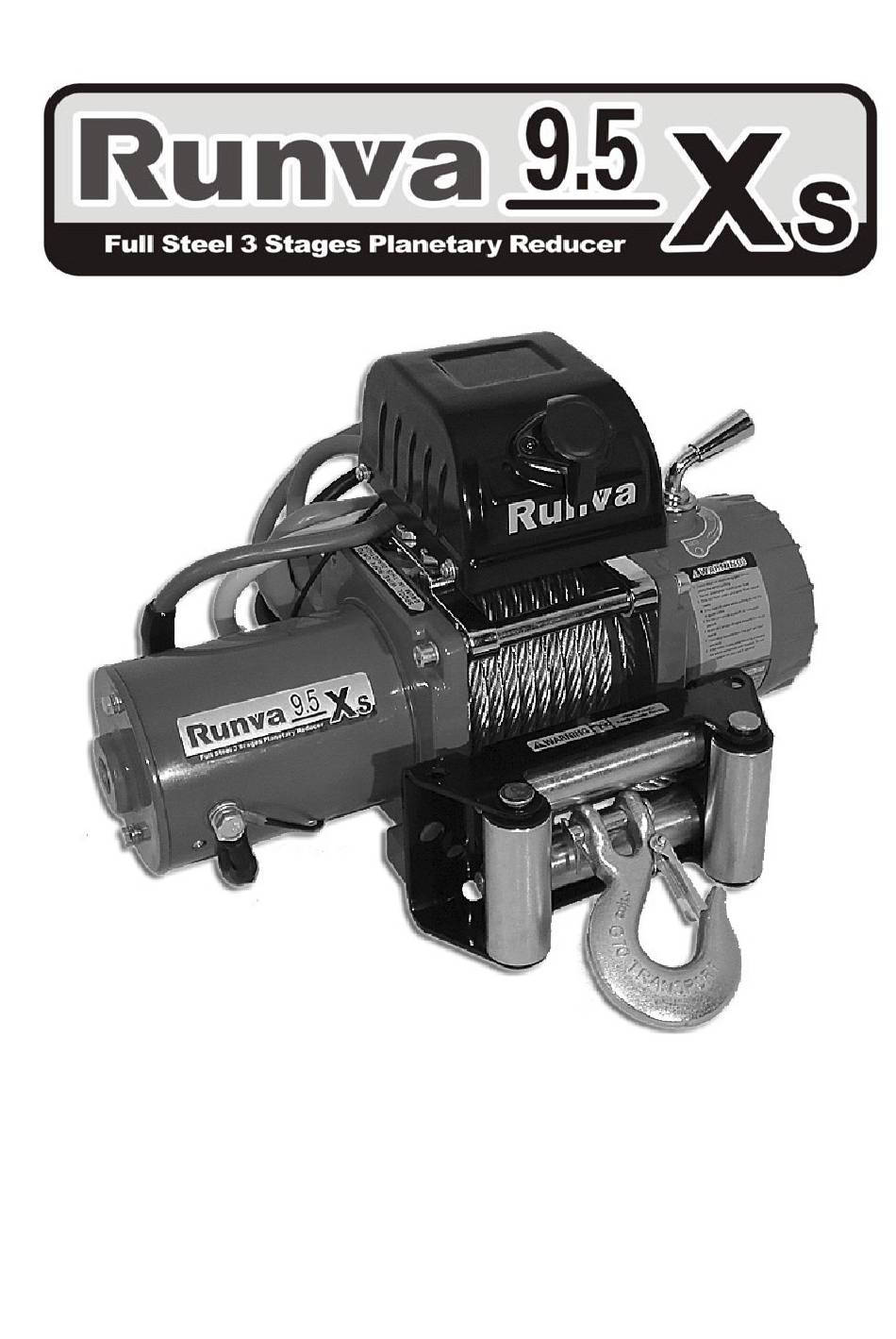

- Page 1 Warning! Read the Book Before Installation & Operation...
-
Page 2: Table Of Contents
CONTENTS PACKING LIST (COLOR MAYBE DIFFERENT) ........1 WARNING! SAFETY PRECAUTIONS ............ 2 TROUBLESHOOTING ................6 WINCH ASSEMBLY DRAWING ............. 7 WINCH PARTS NUMBERS ..............8 SPECIFICATION ..................9 Wiring Instruction... -
Page 3: Packing List (Color Maybe Different)
Packing list (Color Maybe Different, All In One Box) Warning! 1. Spray Lube / Grease on Winch Cable Regularly 2. Start each pull with a minimum of 5 wraps around the drum. 3. Use the bottom 2 layer for max efficiency. -
Page 8: Troubleshooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION -Switch Assembly not -Insert switch assembly all the way into the connected properly connector. -Loose battery cable -Tighten nuts on all cable connections. connections Motor does not -Replace switch assembly. -Defective switch turn on -Check for voltage at armature port with Switch assembly pressed. -
Page 9: Winch Assembly Drawing
WINCH ASSEMBLY DRAWING 9.5Xs... -
Page 10: Winch Parts Numbers
WINCH PARTS NUMBERS 9.5Xs Part # Description Remark X800001 Terminal Protect X800100-SG Motor Assembly X800002 Cap Screw M10 x 35 X800003 Lock Washer Φ10 X800004 Think Flat Washer Φ10 X800005 Hex Nut M10 X800200 Break / Shaft Assembly X800006 Bushing—Drum X800007-SG Tie Bar X800008... -
Page 11: Specification
SPECIFICATION Rated line pull 9500 lbs (4309 kgs) 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp Motor: series wound 24V:Input: 6.5kW / 8.1hp; Output: 2.8 kW / 3.8hp Gear reduction ratio 230:1 Ø5/16"×49.9 ' (Ø8.1mm×15.2m) Cable (Dia.× L) Ø2.48 "×4.7 " (Ø63mm×120mm) Drum size (Dia.×...
