Summary of Contents for Runva EWP2500

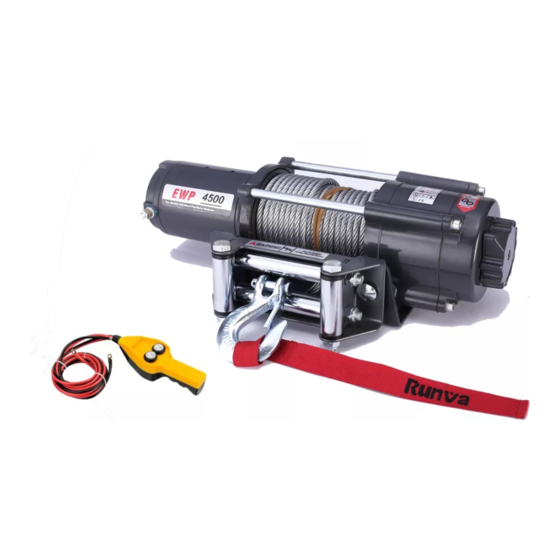

- Page 1 ELECTRIC WINCH EWP2500 EWP3500 EWP4500 Assembly & Operating Instructions...
-
Page 2: Table Of Contents
REPLACING THE WIRE ROPE ............1 0 MAINTENANCE ..................1 1 TROUBLE SHOOTING ................. 1 1 WINCH ASSEMBLY DRAWING EWP2500/EWP3500 ......1 2 WINCH PARTS LIST EWP2500/EWP3500 ........... 1 3 WINCH ASSEMBLY DRAWING EWP4500 .......... 1 4 WINCH PARTS LIST EWP4500 ............1 5 SPECIFICATION（EWP2500）... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of a high quality winch. We design and build winches to strict specifications and with proper use and maintenance should bring you years of satisfying service. WARNING - Read, study and follow all instructions before operating this device. - Page 4 2. Motor: Your motor is powered by a volt battery and provides power to the gear mechanism which turns the drum and winds the wire rope; 3. Winch Drum: The winch drum is the cylinder on which the wire rope is stored. It can feed or wind the rope depending on the remote winch switch.
-
Page 5: Safety Precautions
14. Snatch Block: If your winch is supplied with a snatch block that can double the pulling power of the winch, or change the pulling direction without damaging the wire rope. We recommend you to use double line and snatch block for pulling over 70% of the rated line pull. -
Page 6: General Tips For Safe Operation
pushing the remote button to draw in the cable. Walk toward the winch not allowing the cable to slide through your hands. Do not let your hands get within 12 ″ of the winch while re-spooling. Turn off the winch and repeat the procedure until a few feet of cable is left. -
Page 7: Winching Techniques A-Z
on the wire rope by as much as 50%. When doubling the line back to the vehicle, attach to the frame or other load bearing part. • The vehicle engine should be kept running during operation of the winch to minimize battery drain and maximize power and speed of the winch. - Page 8 c. Disengage the clutch to allow free-spooling and to save energy. d. Attach the hand saver hook to the clevis hook. e. Pull out the wire rope to your desired anchor point using the hand saver hook. f. Secure the clevis hook to the anchor point: Sling, chain or snatch block. Do not attach the hook back onto the wire rope.
-
Page 9: Winch Assembly And Mounting
v. Rewind the wire rope. Make sure that any wire already on the drum has spooled tightly and neatly. If not, draw out the wire and re-spool from the point where the rope is tight. w. Keep your hands clear of the winch drum and fairlead as the wire rope is being drawn in. -
Page 10: Mounting Drawing
7. Check for proper drum rotation. Pull and turn the clutch knob to the “CLUTCH OUT” position. Pull out some cable from the drum, and then turn the clutch knob to the “CLUTCH IN” position to engage the gears. Press the cable out button on the power switch. -
Page 11: Rigging Techniques
Anchor Strap/Chain – Tree saver anchor straps are made of high quality nylon with high tensile strengths from 5,000lbs to 10,000lbs. Heavy Blanket – place on the cable to absorb energy should the wire rope break. RIGGING TECHNIQUES Self-Recovery Locate a suitable anchor such as a strong tree trunk or boulder. Always use a sling as an anchor point. -
Page 12: Winch Working Demonstration
WINCH WORKING DEMONSTRATION 1. Disengage the clutch by turning the clutch to the “CLUTCH OUT” position. 2. Grab the cable assembly (Part# P0250400/P0450800) and pull the cable to the desired length, then attach to item being pulled. Caution: Always leave at least five turns of cable on the drum; Review winch safety warnings and precautions on page 2、3 before continuing. -
Page 13: Maintenance
6. Retract Cable Assembly onto drum, first five wraps being careful not to allow kinking, then winch cable must be wound onto the drum under a load of at least 10% rated line pull. WARNING - Only replace the wire rope with the identical replacement part recommended by the manufacturer. -
Page 14: Winch Assembly Drawing Ewp2500/Ewp3500
WINCH ASSEMBLY DRAWING EWP2500/EWP3500... -
Page 15: Winch Parts List Ewp2500/Ewp3500
WINCH PARTS LIST （EWP2500/EWP3500） Part # Description Remark P0250100-D Used in D and A type winch Motor Assembly（Used in EWP2500） P0250100-U Used in U type winch P0350100-D Used in D and A type winch Motor Assembly（Used in EWP3500） P0350100-U Used in U type winch... -
Page 16: Winch Assembly Drawing Ewp4500
WINCH ASSEMBLY DRAWING EWP4500... -
Page 17: Winch Parts List Ewp4500
WINCH PARTS LIST EWP4500 Part # Description Remark P0450001 Terminal Protector P0450100-D Used in D and A type winch Motor Assembly P0450100-U Used in U type winch P0450002 Screw M4 x16 Locking Washer Φ4 P0450003 P0450004 Stand Bar P0450005 CouplingⅠ P0450006 Spring P0450007... -
Page 18: Specification（Ewp2500
SPECIFICATION（EWP2500） Rated line pull 2500 lbs (1134 kgs) 12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/ 1.1hp Motor: permanent magnet 24V:Input: 2.4 kW / 3.2hp; Output: 0.9 kW / 1.2hp Gear reduction ratio 170:1 Cable (Dia.× L) Ø3/16"×45.9' (Ø 4.8mm×14.0m) Drum size (Dia.× L) Ø1.46"×3.15"... - Page 19 SPECIFICATION（EWP3500） Rated line pull 3500 lbs (1588 kgs) 12V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp Motor: permanent magnet 24V:Input: 2.9 kW / 3.9hp; Output: 1.2KW / 1.6hp Gear reduction ratio 170:1 Cable (Dia.× L) Ø 7/32"×42.0' (Ø 5.4mm×12.8m) Drum size (Dia.×...
-
Page 20: Specification（Ewp4500
SPECIFICATION（EWP4500） Rated line pull 4500 lbs (2041 kgs) 12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp Motor: permanent magnet 24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp Gear reduction ratio 166:1 Cable (Dia.× L) Ø 15/64"×47.6' (Ø 6mm×14.5m) Drum size (Dia.× L) Ø...
