RGB Panel Hookup Guide
Make bright, colorful displays using the 32x16, 32x32,
and 32x64 RGB LED matrix panels. This hookup guide
shows how to hook up these panels and control them
with an Arduino.

Hardware Overview

Teensy Footprint
The SmartLED shield makes it easy to connect to RGB LED matrix panels. As opposed to wiring to 16 pins on the
RGB LED matrix panel, you simply sandwich the shield between a Teensy and the IDC connector! The top of the
board is where you would insert the Teensy populated with straight headers. The bottom of the shield includes
female headers to make a secure connection.

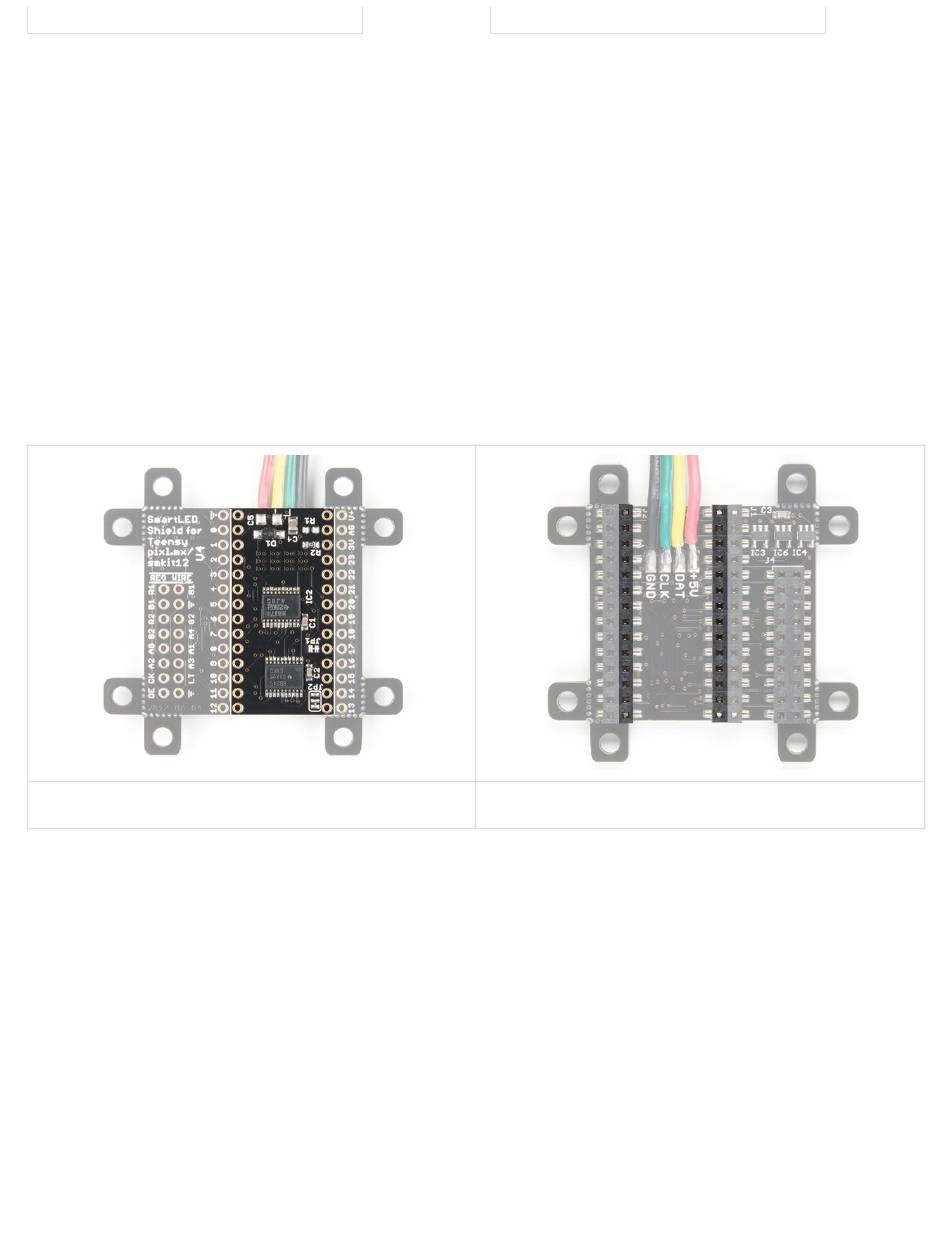

Teensy Footprint (Top View)
Adjacent to the Teensy footprint are additional pins that are broken out for easy access for prototyping or soldering
wires directly to the shield.
Getting Started with the Teensy
Basic intro to the Teensy line of products, with
soldering and programming suggestions.
Teensy Footprint (Bottom View)
