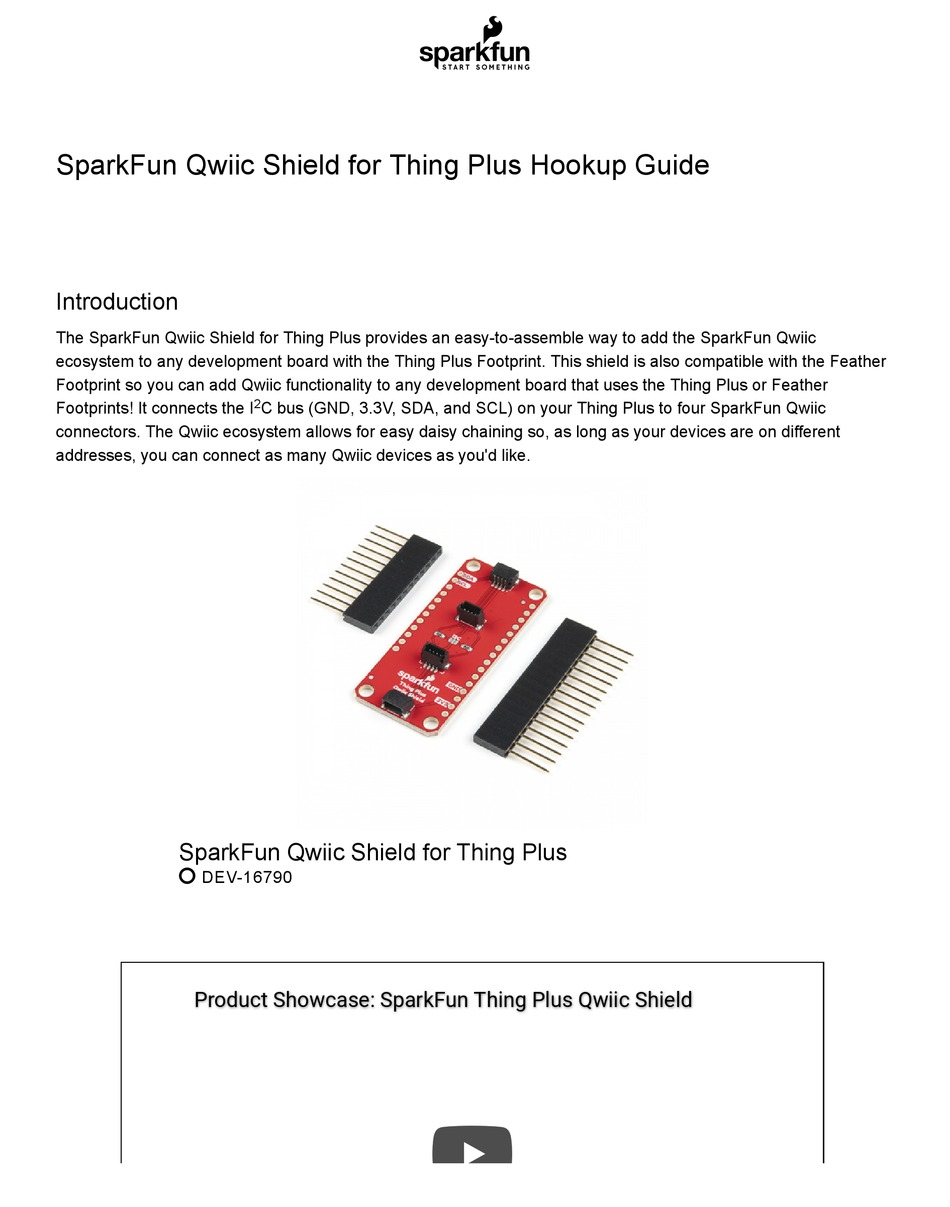

SparkFun Qwiic Shield for Thing Plus Hookup Guide
Introduction
The SparkFun Qwiic Shield for Thing Plus provides an easy-to-assemble way to add the SparkFun Qwiic
ecosystem to any development board with the Thing Plus Footprint. This shield is also compatible with the Feather
Footprint so you can add Qwiic functionality to any development board that uses the Thing Plus or Feather
Footprints! It connects the I C bus (GND, 3.3V, SDA, and SCL) on your Thing Plus to four SparkFun Qwiic
connectors. The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different
addresses, you can connect as many Qwiic devices as you'd like.

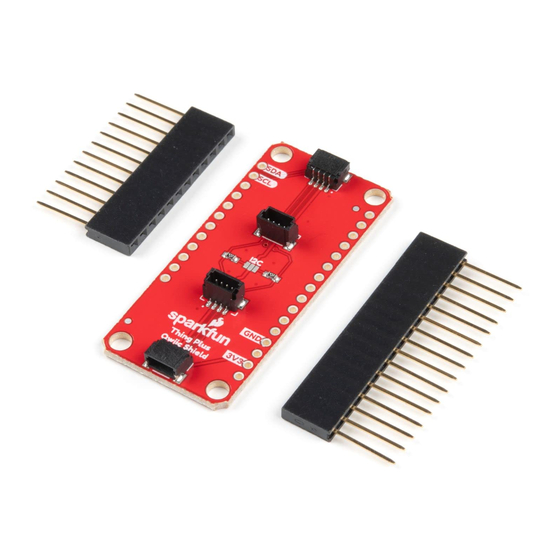

SparkFun Qwiic Shield for Thing Plus
DEV-16790
Product Showcase: SparkFun Thing Plus Qwiic Shield
Product Showcase: SparkFun Thing Plus Qwiic Shield
2
Advertisement
Related Manuals for sparkfun Qwiic Shield for Thing Plus
Summary of Contents for sparkfun Qwiic Shield for Thing Plus
- Page 1 Footprint so you can add Qwiic functionality to any development board that uses the Thing Plus or Feather Footprints! It connects the I C bus (GND, 3.3V, SDA, and SCL) on your Thing Plus to four SparkFun Qwiic connectors. The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.
- Page 2 To follow along with this tutorial, you will need an Arduino development board with the Thing Plus footprint. This includes the all variants of the SparkFun Thing Plus boards and many other Thing Plus-compatible boards! Here are a few of the compatible boards:...
- Page 3 PRT-15187 Now you probably would not want the Qwiic Shield for Thing Plus if you didn't have any Qwiic products to use with it, right? Well, if you don't have any Qwiic products, the following might not be a bad place to start: SparkFun GPS Breakout - NEO-M9N, U.FL...
- Page 4 SparkFun Qwiic Motor Driver SparkFun Proximity Sensor Breakout - 20cm, VCNL4040 (Qwiic) ROB-15451 SEN-15177 You will need some of our Qwiic cables to connect your devices to the shield. Below are a few options: Qwiic Cable - 100mm Qwiic Cable - 200mm ...
-
Page 5: Suggested Reading
Qwiic Cable - Breadboard Jumper (4-pin) SparkFun Qwiic Adapter PRT-14425 DEV-14495 Qwiic Cable - Female Jumper (4-pin) CAB-14988 Required Tools You will need a soldering iron, solder, and general soldering accessories to solder the header pins to the Qwiic... -
Page 6: Hardware Overview
Hardware Overview Qwiic Connectors The Qwiic Shield for Thing Plus has four Qwiic connectors on it. The two on the edges are the standard horizontal connectors and the two in the middle are vertical connectors. - Page 7 Essentially all SparkFun I C breakouts come with pull up resistors on them so if you are using a Qwiic I C device or another SparkFun I C device, you can most likely leave it open.
-
Page 8: Hardware Assembly
Hardware Assembly All you need to get started using the Qwiic Shield for Thing Plus is to solder the included stackable headers or whichever headers you choose to the shield and, if necessary, to your Thing Plus (or compatible board). If you have never worked with an Arduino Shield before or need some tips, our Arduino Shields Tutorial provides detailed instructions on how to assemble and use them. - Page 9 Arduino Shields Tutorial Now that you have your Qwiic Shield ready to go, it's time to check out some Qwiic-enabled products. Below are a few to get started. SparkFun IR Array Breakout - 110 Degree FOV, SparkFun Qwiic Cable Kit MLX90640 (Qwiic) ...
- Page 10 SparkFun AS3935 Lightning Detector Hookup M8Q) Hookup Guide Guide (v20) The SparkFun ZOE-M8Q and SAM-M8Q are two Are you worried about the looming clouds in the similarly powerful GPS units but with different project distance, how far away is that storm exactly? Add applications.
