2.0 CONFIGURATION
The two relays on the circuit board can be individually configured as AUX1 or AUX2. Also the actuation of each relay can
be configured to be momentary or latched. See Figure 2.0.1 for relay configuration DIP switch settings.
1.
Remove lid from interface box.
2.
Locate DIP switches on board and select configuration.
3.
Replace lid. Verify rubber seal is clean and undamaged. Verify that no wires are caught between lid and box.
TASK FORCE TIPS, Inc.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2006

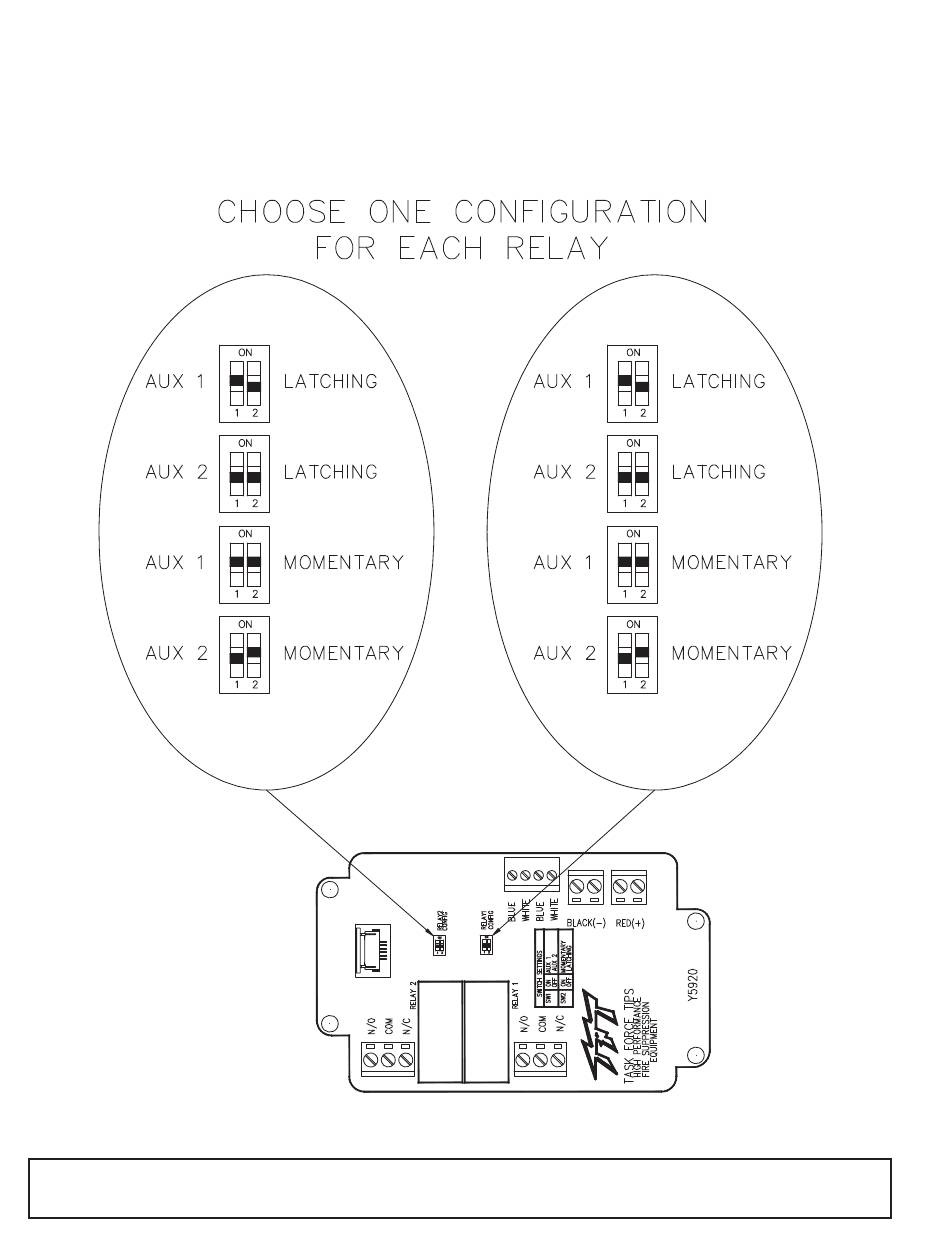

Figure 2.0.1
Relay Configuration
2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIY-ADD1 April 26, 2006 Rev00
