Task Force Tips Tornado Instructions For Installation, Safe Operation And Maintenance page 12

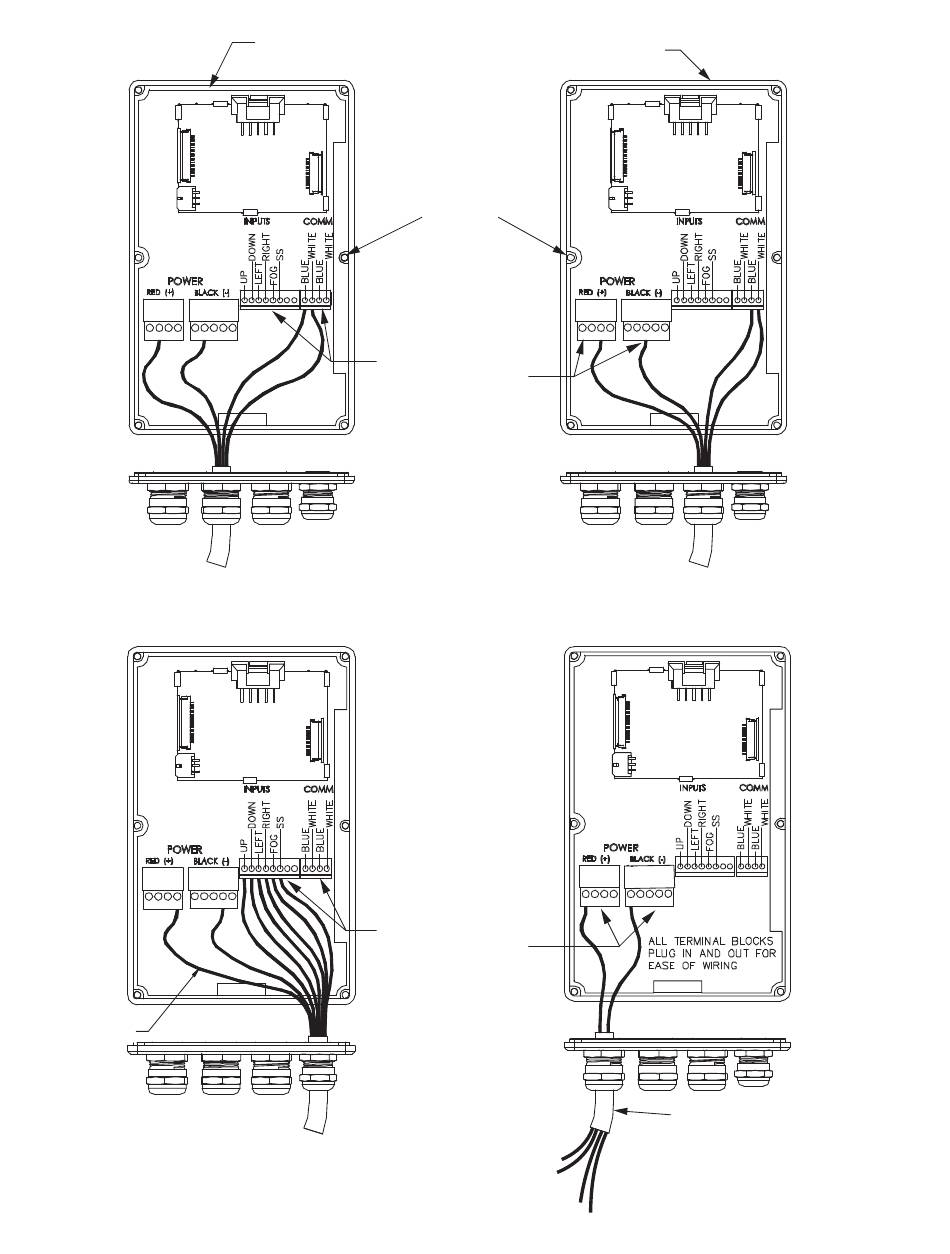

Fig 5.1.2B
From/To Monitor Or Operator Station Connections
WIRELESS
STATION ONLY
WIRELESS OPERATOR STATION.
JOYSTICK OR INSTALLER SUPPLIED SWITCHES.
SEE SECTION 5.1.2 FOR TABLE DEPICTING
WIRELESS RECEIVER COLOR CODE.
Fig 5.1.2D
Wireless Operator Station Connections
VERIFY RUBBER SEAL IS CLEAN AND UNDAMAGED.
VERIFY THAT NO WIRES ARE CAUGHT BETWEEN LID AND BOX.
USE SUPPLIED FLAT HEAD
SCREWS WITH O-RING SEALS.
TIGHTEN SCREWS SECURELY.
(6) PLACES.
THESE TERMINAL BLOCKS
CAN BE UNPLUGGED
FROM THE BOARD FOR
EASIER WIRE CONNECTING.
THESE TERMINAL BLOCKS
CAN BE UNPLUGGED
FROM THE BOARD FOR
EASIER WIRE CONNECTING.
From/To Tether, Optional Operator Station,
Toggle Switch Operation Station, or Communication Interface Box
BLUE AND WHITE
NOT USED
RED AND BLACK
TO POWER DISTRIBUTION CENTER
Main Power Connections
12
Fig 5.1.2C
10 FT. (3M) MAXIMUM LENGTH
Fig 5.1.2E
