Melink Intelli-Hood Controls Reference Manual page 32

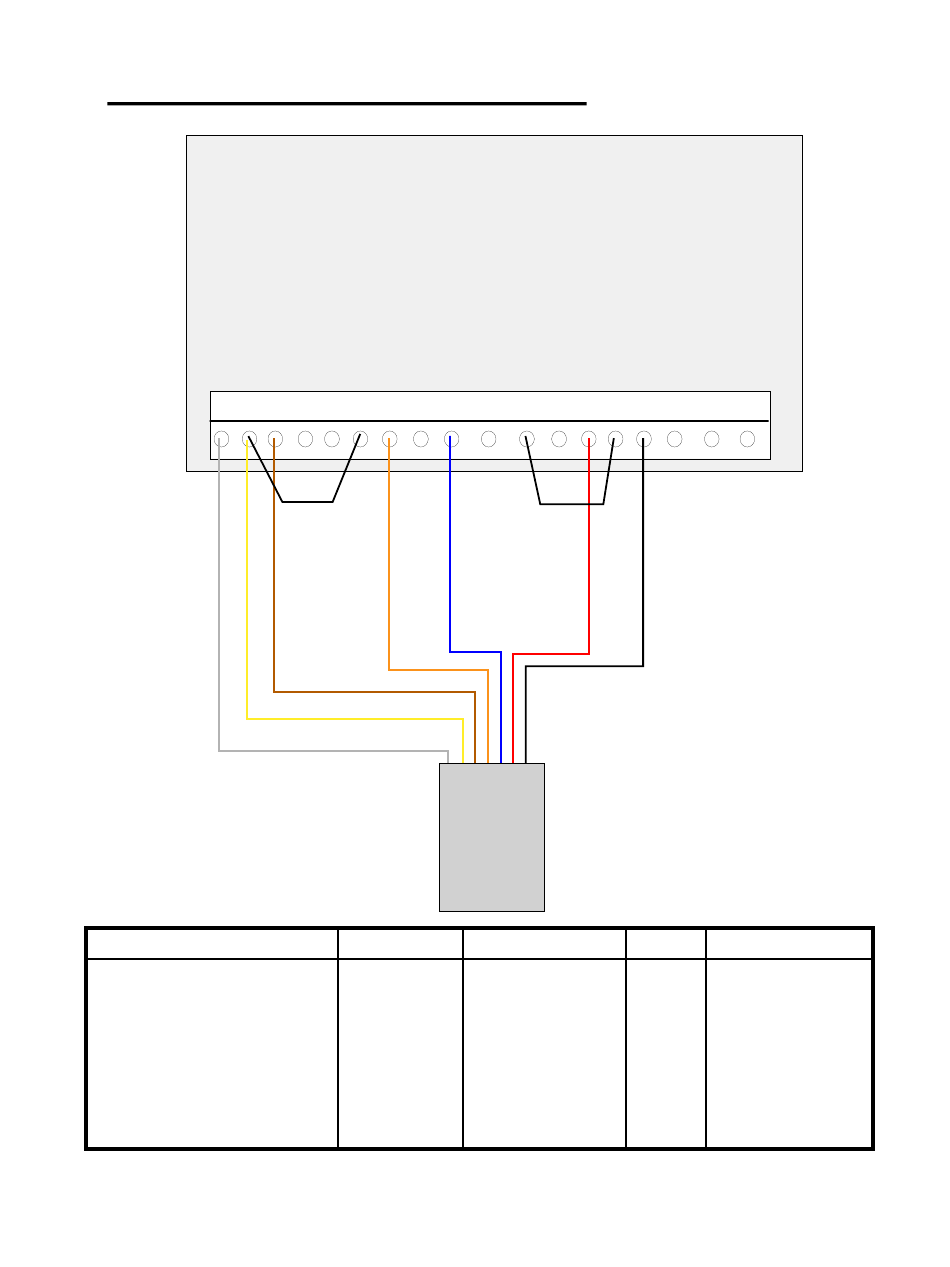

AC Tech Terminal Connections
1 2
FUNCTION
Speed Reference to VFD
Frequency Meter from VFD
Start/Stop Command
Full Speed Bypass Command
Reference Signal Common
Start/Stop Bypass Common
Speed Reference to VFD
Cable Shielding Drain
AC Tech
5 6 11 12 2 14 13A 13B 13C 15 25 2 30 31 TXA TXB
SIGNAL
4-20 ma
0-10 vdc
Dry
Dry
---
---
0-10 vdc
---
Terminal PIN # RECPTACLE
25
30
1
13A
2
2
5
-
3-4
1 Red
2 Black
3 White
4 Blue
5 Yellow
6 Orange
7 Brown
8 Green
