Melink Intelli-Hood Controls Reference Manual page 31

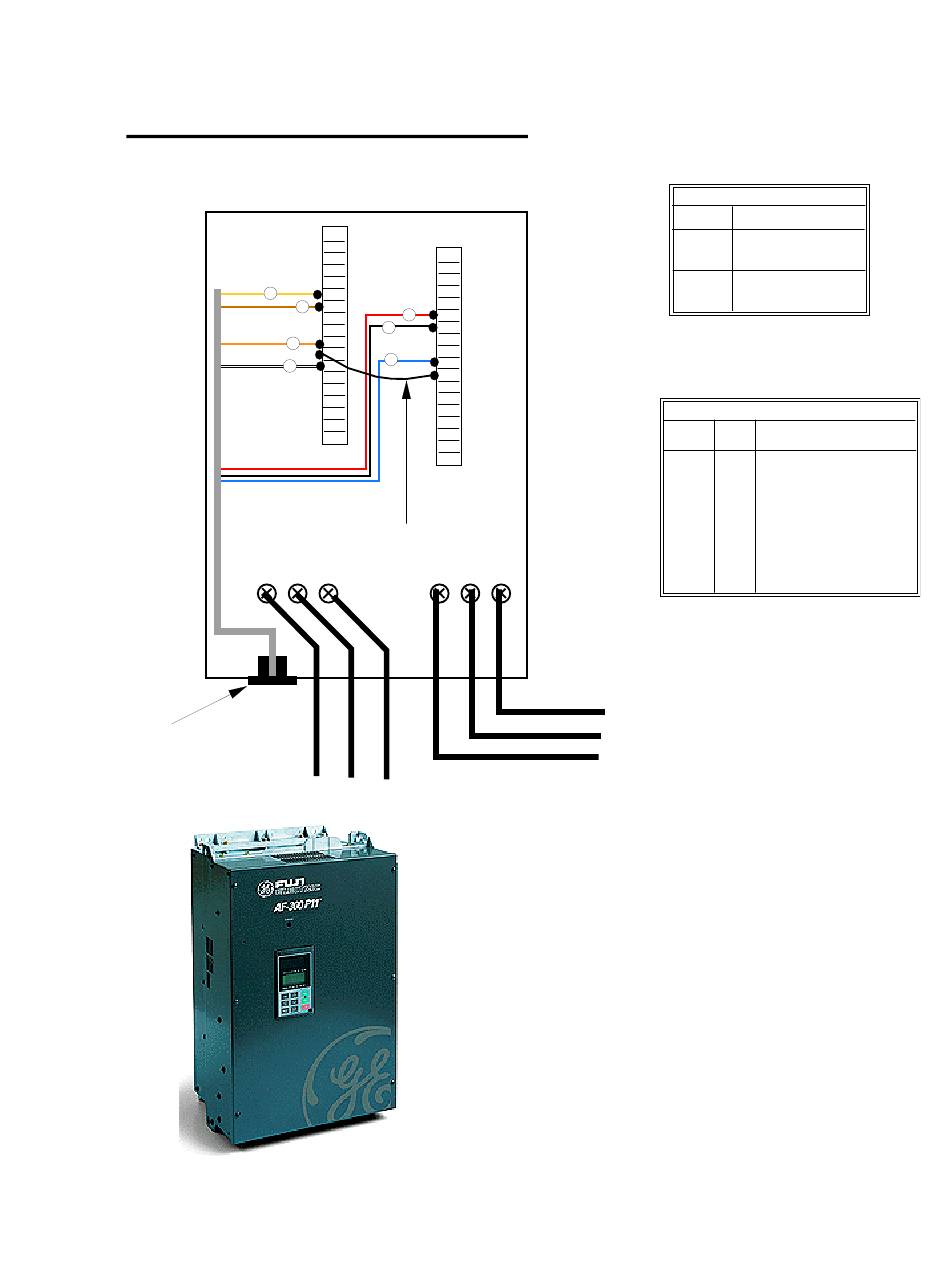

P11 Terminal Connections
LOW VOLTAGE
Power In
30C
30B
30A
Y5C
Y5A
Y4
CMY
Y2
Y3
Y 11
Y1
12
N
C1
R
13
FMA
B
V2
FMP
CM
O
PLC
CM
L
X1
FWD
W
X2
REV
X3
P24
X4
P24
X5
DX
X6
DX
X7
SD1
X8
X9
Remove Jumper to connect external trip
L1 L2 L3
U V W
Power Out
to Fan
3-3
HIGH VOLTAGE LEGEND
TERMINAL FUNCTION
L1
3Phase
L2
Input from breaker panel
L3
U
3Phase
V
Output to fan motor
W
LOW VOLTAGE CABLE LEGEND
WIRE
VFD
FUNCTION
COLOR
TERM
White FWD Run command
Orange CM Run common
Blue X1 Bypass command
Red C1 4-20mA speed referance
Yellow 11 Speed referance common
Black FMA 0-10V meter output
Brown 12 0-10V speed referance
Green GND Cable shield ground
