DEMO MANUAL
DC2181A-A/B
assemBly test proceDure
PS2
3.6V BIPOLAR SUPPLY
1A
PS1
5V POWER SUPPLY
1A
Note: All connections from equipment should be Kelvin connected directly to the
board pins which they are connected on this diagram and any input or output leads
should be twisted pair.
4
–
3.6 VM1
+
AM1
+ –
A

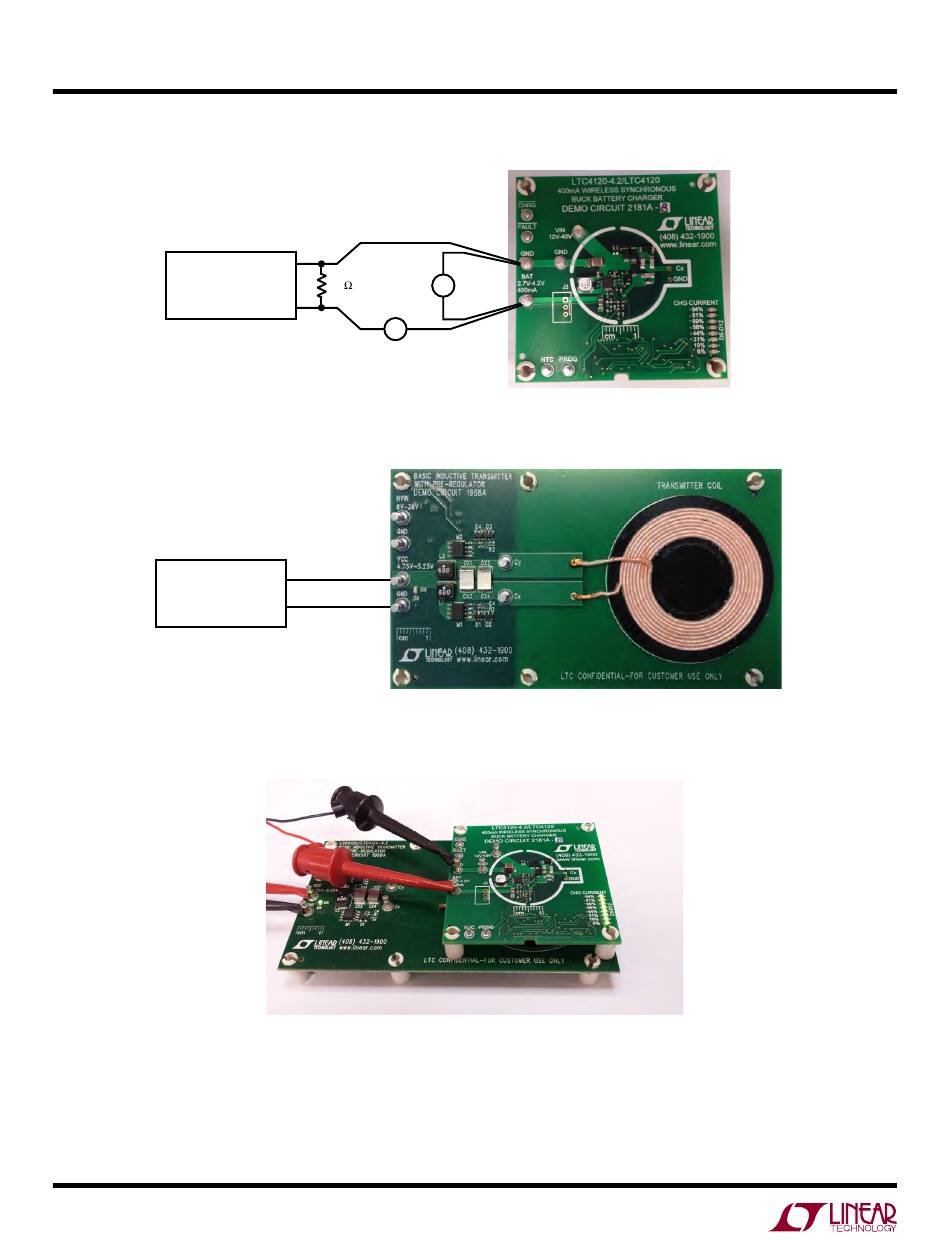

Figure 6a. DC2181A-A/B Wireless Power Demo Board Connection
+
–
Figure 6b. DC1968A Wireless Power Basic Transmitter Connection
Figure 6c. DC2181A-A/B Wireless Power Demo Board Mounted on
DC1968A Wireless Power Basic Transmitter
–
V
+
dc2181afa
