DESCRIPTION
Demonstration circuit 2133A features a simple battery
charger circuit using the
lithic linear charger. The DC2133 has an input voltage
range from 2.7V to 60V and is capable of supplying up
to 250mA charge current. The charge voltage is jumper-
selectable to 4.2V or 8.4V. Charge current is adjustable
via the PROG pin and initially programmed for 99mA. In
shutdown or when unpowered, LTC4079 consumes only
10nA from the battery.
DC2133A is initially configured to enable charging from
application of V
above the LTC4079 UVLO threshold.
IN
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Default Charging Voltage
Default Charging Current
PROG Pin Voltage
Input Regulation Voltage
Default Charge Timer
LTC
4079
high-voltage mono-
®
Specifications are at T
CONDITIONS
V
= 4.2
BAT
R
= 3.01k
PROG
R
= 3.01k, I
PROG
EN = REG (JP1)
C
= 0.068μF
TMR
100
240mAh Li-Ion
90
V
= 5V
IN
R
= 3.01k
PROG
80
C
= 0.068µF
TMR
70
60
50
V
40
BAT
30
20
10
0
0
1
Figure 1. Typical Battery Charge Cycle

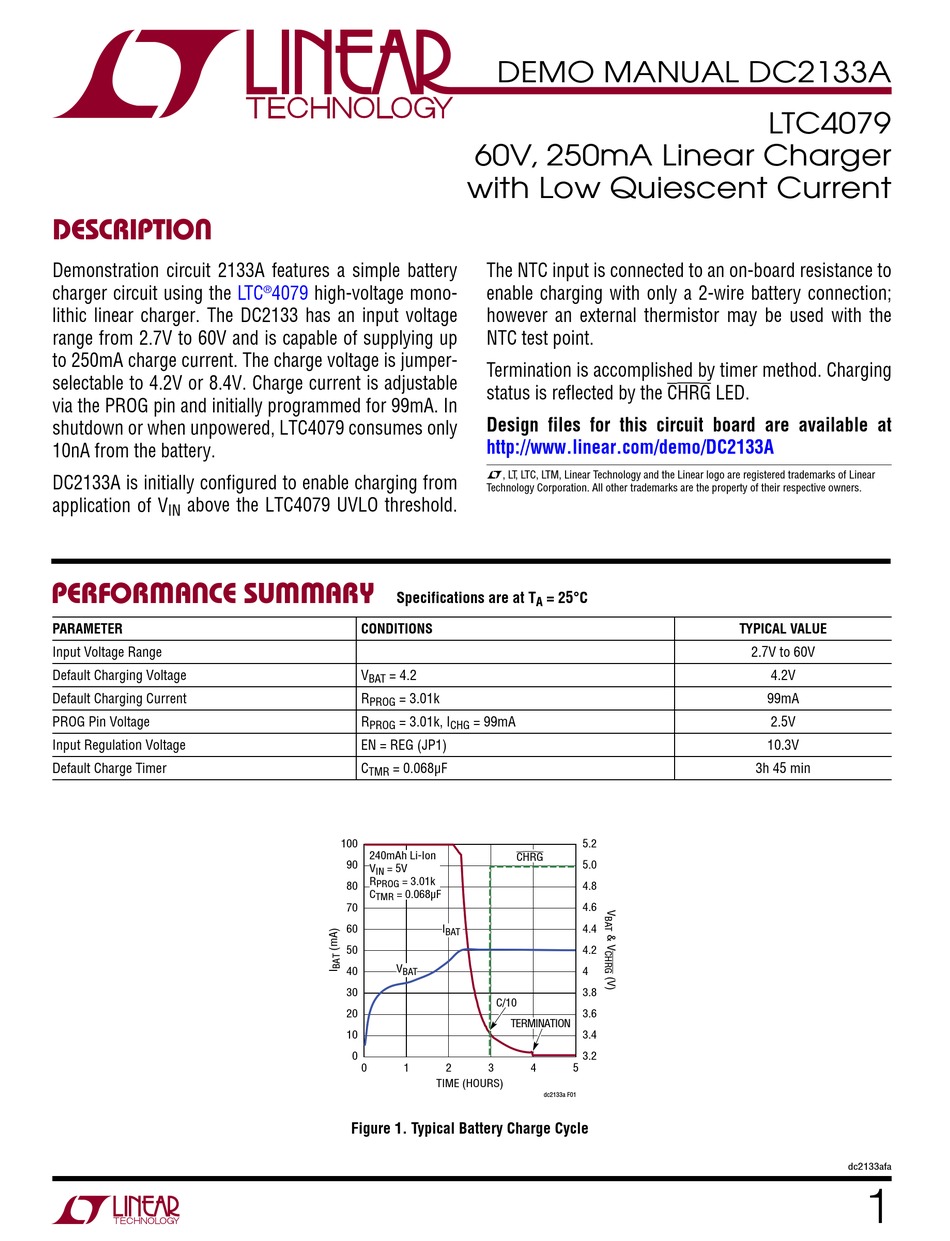

DEMO MANUAL DC2133A
60V, 250mA Linear Charger
with Low Quiescent Current
The NTC input is connected to an on-board resistance to
enable charging with only a 2-wire battery connection;
however an external thermistor may be used with the
NTC test point.
Termination is accomplished by timer method. Charging
status is reflected by the CHRG LED.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2133A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
= 25°C
A
= 99mA
CHG
5.2
CHRG
5.0
4.8
4.6
I
4.4
BAT
4.2
4
3.8
C/10
3.6
TERMINATION
3.4
3.2
2
3
4
5
TIME (HOURS)
dc2133a F01
LTC4079
TYPICAL VALUE
2.7V to 60V
4.2V
99mA
2.5V
10.3V
3h 45 min
dc2133afa
1
