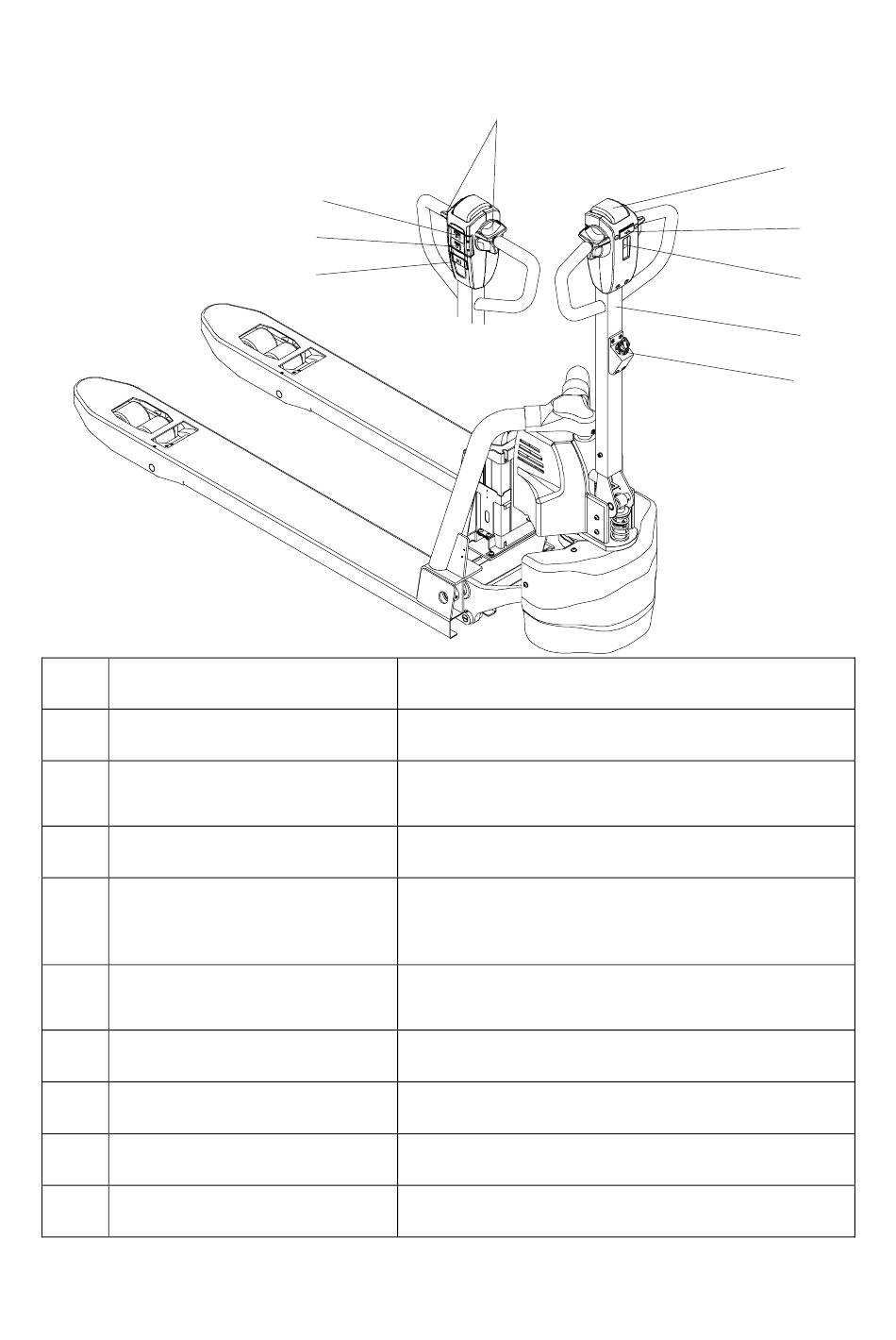

2.4 Display and control

Item Designation
2 Control lever
3 Key switch
12 Display instrument
13 Crawl button
14 Collision safety switch
15 Travel switch
16 Lift button
17 Lower button
18 Horn button
16
17
18
Used for steering and braking the truck.
Switches the control current ON and OFF.
Removing the key prevents the truck from being
switched on by unauthorized personnel.
Hourmeter.
Battery charge status.
Pressing the crawl button reduces the travel speed
and acceleration. If the control lever is set to the
brake zone (B1), you can press this button to
override braking; the truck will travel at slow speed.
Truck moves away from operator.
Protect the operator from extrusion damage under
emergent circumstances.
Controls travel direction and speed.
Raises the load device. When the battery is
consumed about 80%, lifting function will be locked.
Lowers the load device.
Give out sound warning signal.
7
15
Function
14
13
12
2
3
