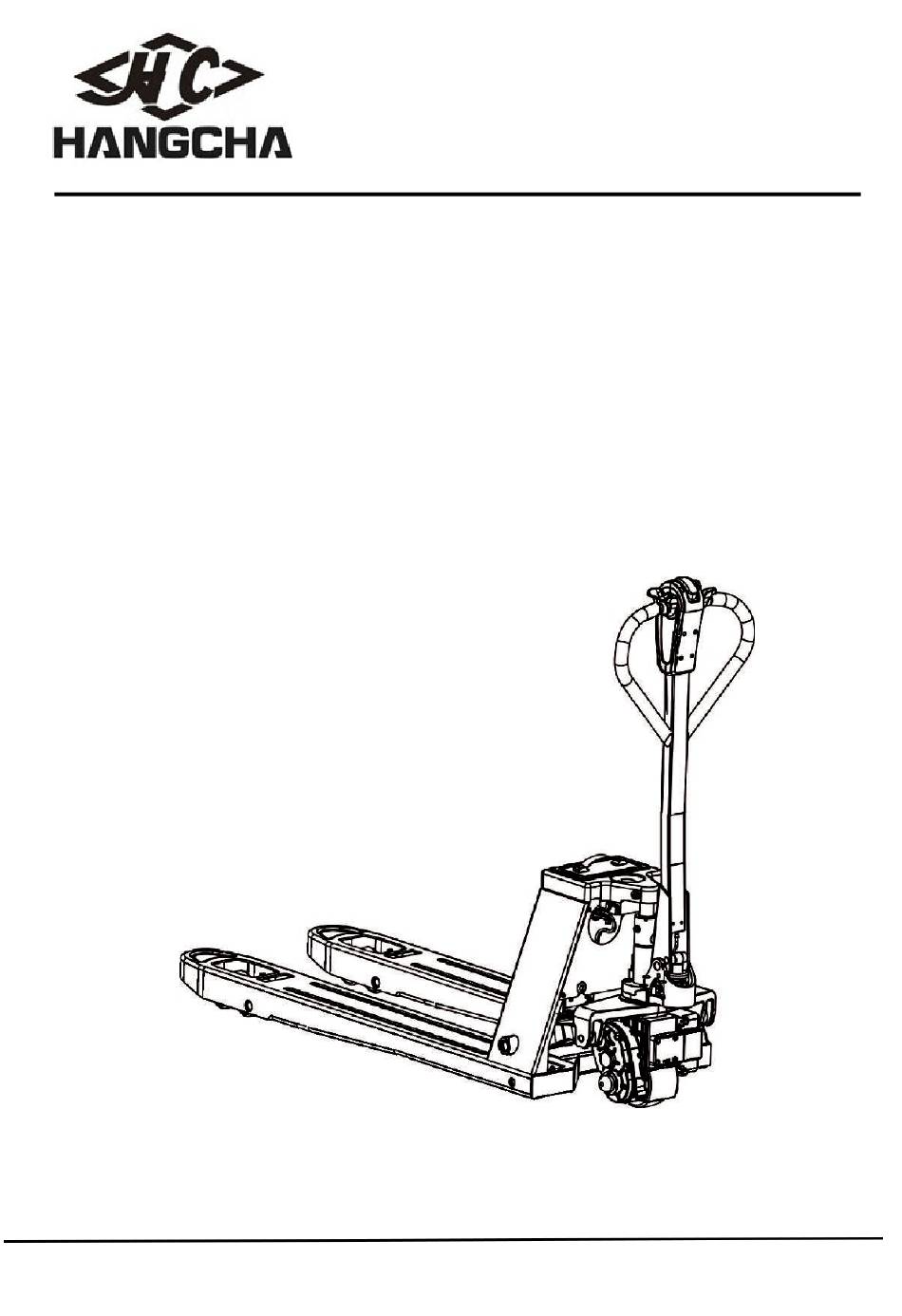

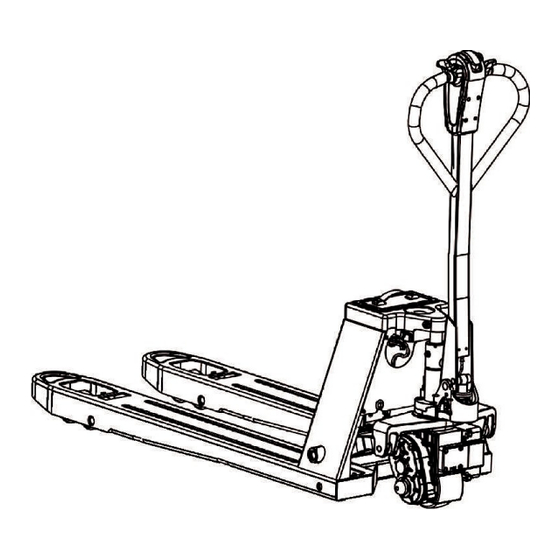

- Page 1 CBD15-WS Electric Pallet Truck Operation Manual & Part List Warning: Read and follow all the instructions before operation confirm all the security components are not damaged.
-
Page 2: Table Of Contents
Content 1. Foreword ..............................2. Application .............................. 3. Parameters .............................. 4. Operation Guide ..........................4.1 Operation Pre-Check ........................ 4.2 Operation ............................5. Battery & Charger Use and Maintenance ................5.1 Charger ............................5.2 Battery Charging ........................5.3 Button function description .................... -
Page 3: Foreword
2. Application Full electric pallet truck CBD15-WS, with powered traveling & lifting / lowering, to move pallets or goods for short-distance, is widely applied in workshops, warehouse, dock, station and depot. It is an ideal tool to improve efficiency and reduce labor intensity. -
Page 4: Operation Guide
Model CBD15-WS Capacity kg/lb 1500 Load center mm/in Standard overall fork width mm/in 550/685 Fork length mm/in 1150/1220 Characteristics Overall length mm/in 1552/1622 Overall height (with tiller) mm/in 1300 Rear body width mm/in 550/685 Minimum turning radius mm/in 1353/1426 km/h laden Max. -
Page 5: Operation
4.2 Operation ① The truck can only be allowed to use on hard ground. Do not work on oily ground to avoid slipping. ② Turn on the switch, make sure the battery is full, then start to operate. ③ Do not use the truck when battery is low. Low voltage use will damage battery. Charge and discharge the battery on a regular basis when truck is unused for long time ( over one month). -
Page 6: Drive Wheel Disassembly Introductions
Forward & backward knob Horn Emergency reverse button Fork Lifting & Lowering Battery indicator 5.4 Drive Wheel Disassembly Introductions 1. Let the drive wheel #10 suspend. 2. Dismantle controller cover (#7) by removing 3 bolts #8. 3. Loosen controller (#5) by removing 2 bolts #6. Avoid force on wires. 4. -
Page 7: Replace The Vent Screw Before Putting The Truck Into Work
5.5 Replace the Vent screw before put the truck into work. Replace the Vent screw before putting truck into work. In order to avoid oil leak during transportation, the vent screw on the hydraulic oil filler is replaced by a solid screw. Before putting truck into use, this solid screw must be replaced by the vent screw, to avoid the cylinder being vacuum during lifting or lowering. -
Page 8: Maintenance
7. Transport and Storage This CBD15-WS electric pallet truck must be placed in a horizontal position during transport and storage to prevent oil spillage. During storage, it should be kept clean to avoid moisture and harsh climate. The ambient temperature must not exceed 40℃... - Page 9 Check battery wire Power switched on, Loose wire connection, bad switch connection, but power contact, results in current fasten screw on all indicator light off interruption connection joints, keep switch contact smooth Unstable lifting and Get rid of the air in the cylinder lowering rate Air inside cylinder by fully lifting and lowering...
- Page 10 Troubleshooting When controller detects failure, the truck stops working. LCD gives fault identification codes. The LCD uses two-digit code. Two short flashing and one long interval means 11,two short flashing, one short flashing and one long interval means 21, etc. Error Code Error Possible Cause...
- Page 11 CBD15-WS Parts Manual Electric Pallet Truck Read and observe all warnings on this Warning unit before operating it. DO NOT operate this equipment unless Warning all factory installed guards and shields are properly secured in place.
- Page 12 PARTS ORDERING INSTRUCTIONS HOW TO ORDER When ordering the parts, please supply part number, parts name, quantity, model and serial number of your machine. Supplying this information will assure prompt, efficient handling of your order. Since your dealer carries many parts in stock and maintains up-to-date pries on all parts, he will be able to process your order immediately.
- Page 13 Index ITEM# DESCRIPTION PAGE 12-13 Fig.1 Handle assembly Fig.2 Control box assy 14-15 16-17 Fig.3 Driving system 18-19 Fig.4 Drive unit assembly 20-21 Fig. 5 Hydraulic unit assy 22-23 Fig.6 Cylinder assembly 24-25 Fig.7 Frame Fig.8 Double loading wheel assy 26-27 Fig.9 Sing le loading wheel assy...
- Page 17 10301012 Accelerator assembly...
- Page 18 Driving system 18 19 20...
- Page 19 Driving system Axle 30202012 socket Cables cover unit assembly Driving wheel cover...
- Page 20 Fig.5 Drive unit assembly 12 9 13 10 9 11 15 9...
- Page 21 Drive unit assembly 31102005 One-stage transmission gear 21104002 Oil seal Locating Drive unit assembly...
- Page 23 unit assy Oil pipe Cables Lifting limitation switch...
- Page 25 body...
- Page 26 17 16...
- Page 27 Cushion block Washer Washer Emergency switch cover Screw Cables...
- Page 29 21402001 Tandem mounting plate 20501001...
- Page 33 10301028 Charger 48V/2A(100-240V) 10301029 Charger 48V/5A(100-240V) 10302002 Plug(European Standard) 10302003 Plug(Australian Standard) 10302001 Plug(American Standard) 10302004 Plug(British Standard)
