Saab R5 SOLID Installation Short Instruction page 4

R5 SOLID Installation Short Instruction
R5 Signal Cable DSUB-OPEN, 7000 118-078,B
26-pin High Density D-Sub, female. Out/Tx = Data from transponder.
Pin Signal Name Type
1 ECDIS Out B 422-TxB(+)
2 ECDIS Out A 422-TxA(-)
3 Sensor1 In B 422-RxB(+)
4 Sensor1 In A 422-RxA(-)
5 Sensor2 In B 422-RxB(+)
6 Sensor2 In A 422-RxA(-)
7 Long Range In B 422-RxB(+)
8 Long Range In A 422-RxA(-)
9 Long Range GND 422-GND
10 ECDIS GND 422-GND
11 ECDIS In B 422-RxB(+)
12 ECDIS In A 422-RxA(-)
13 Sensor1 GND 422-GND
14 Sensor2 GND 422-GND
15 Sensor3 In B 422-RxB(+)
16 Sensor3 In A 422-RxA(-)
17 Long Range In B 422-Tx
18 Long Range In A 422-Tx
19 Alarm Relay GND ALR GND
20 Alarm Relay Out ALR Out
21 GND -
Do not connect
22 TX test pin
-
23 Sensor3 GND 422-GND
24 Alarm Relay VCC ALR VCC
25 CAN (+) Bus
26 CAN (-) Bus
Default bps Colour
38400 White
38400 Brown
4800 Green
4800 Yellow
4800 Grey
4800 Pink
9600 Blue
9600 Red
- Black
- Violet
38400 Grey / Pink
38400 Red / Blue
- White / Green
- Brown / Green
4800 White / Yellow
4800 Yellow / Brown
9600 White / Grey
9600 Grey / Brown
- White / Pink
- Pink / Brown
- White / Blue
Brown / Blue
- White / Red
- Brown / Red
- N/A
- N/A
R5 Power Cable, 7000 118-077, A
4-pin male circular ConXall, female. 5A
Fuse.
Pin Signal Name Colour
1 24VDC positive Red
2 GND Black
3* External Switch (R) Brown
4* External Switch (F) Orange
*See complete manual on
Documentation CD for details on
external switch installation.
Pilot Plug
GPS
24 VDC
External fuse
External
Switch
RS-232
(ECDIS/ECS/
GNSS)
ECDIS Long
ARPA Range

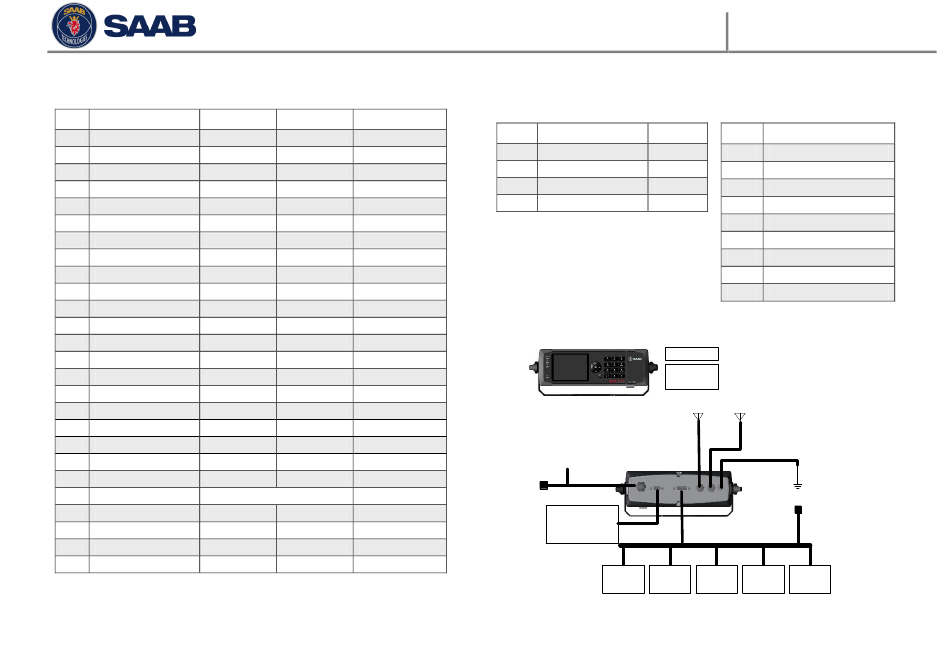

System overview
7000 118-201 A3
Transponder 232 pinout
Tx = from transponder.
Default 38400 bps.
Pin Signal Name
1 Not Connected
2 AIS Data Tx
3 AIS Data Rx
4 Not Connected
5 GND
6 Not Connected
7 Not Connected
8 Not Connected
9 Not Connected
Use a standard DE9F to DE9M
Serial Cable.
USB
VHF
GND
Alarm
Relay
Sensor Sensor Sensor
1 2 3
RS-422 Ports
