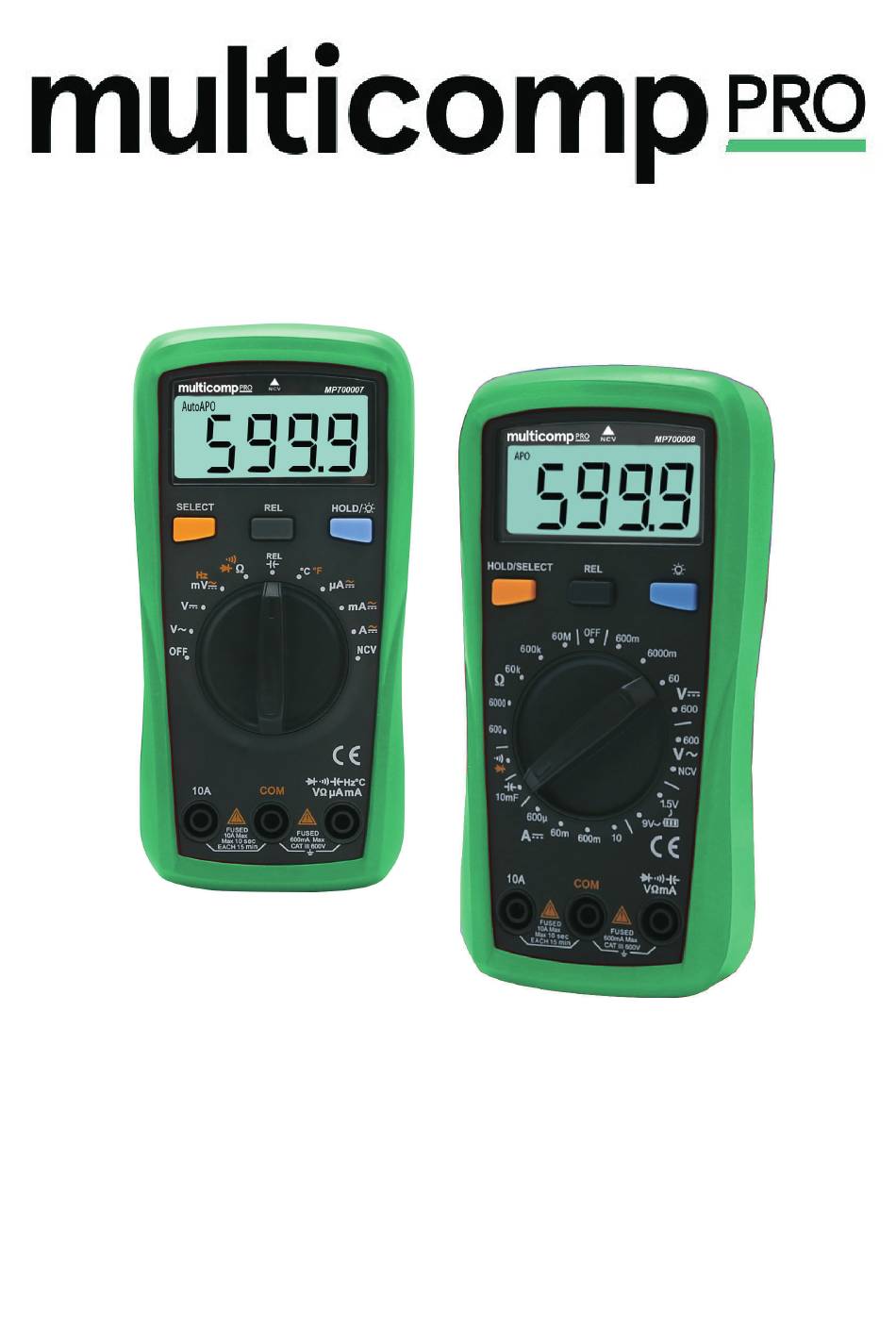

- Page 1 Digital Multimeter Model: MP730007 and MP730008...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. This instrument is designed and manufactured in compliance with: G84793, lEC61010-1, CAT III 600V, Pollution Degree 2 and Double Insulation standards. • Check the test leads, probes and case insulation before using. If you find any breakage or abnormality, or you consider the device is broken, stop using the device immediately.

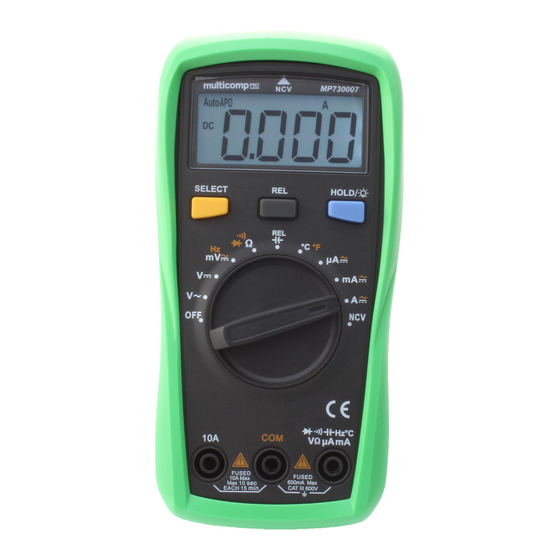

- Page 3 WHAT’S INCLUDED • Digital multimeter • User manual • Set of test leads • K-type temperature probe (72-10390 only) FUNCTIONS LCD Display FUNCTION button RANGE selector 10A input terminal COM Input terminals VΩmA input terminal OPERATION Measuring AC or DC Voltage •...
- Page 4 Measuring AC Current (MP730007 only) Insert the black test lead into COM terminal. If the current under test ≤ 200mA, insert the red test lead into VΩmA terminal. If the current is higher, insert the red test lead into the 10A terminal.
- Page 5 The LCD displays the battery status. Notes: • Do not input over 60V DC or 30V AC. Measuring Temperature (MP730007 only) • Switch the range selector to temperature position. • After “OL” is displayed insert the K-type thermocouple to the device terminals VΩmA and COM and and place the test probes on the object under measurement.
- Page 6 Measurement result = reading of resistor - reading of shorted test leads • Overload protection: 600Vrms DIODE TEST Range Resolution Remarks MP730007 Open circuit voltage: 4V, test current: about 1.5mA. 0.001V MP730008 Open circuit voltage: 2.1V, test current: about 1mA. Silicon PN junction voltage: 0.5 - 0.8V.
- Page 7 9.999µF 0.001µF ±(4%+5) 99.99µF 0.01µF ±(4%+5) 999.9µF 0.1µF ±(4%+5) 9.999mF 0.001mF ±10% Note: Overload protection, 600V-PTC. • Test capacitance <200nF, adapt REL mode. TEMPERATURE (MP730007 ONLY) Range Resolution Accuracy ±4 ºC ºC ºC TEMP >40 ~500 ±(1.0%+4) ºC ºC ºC ºC...
- Page 8 AC CURRENT (MP730007 only) Range Resolution Accuracy 600.0µA 0.1µA 6000µA 1µA ±(1.2%+3) 60.00mA 0.01mA 600.0mA 0.1mA 0.001A ±(1.5%+5) 10.00A 0.01A Note: Overload protection, 600Vrms. • Display: true RMS. • Accuracy guarantee range: 5-100% of the range, shorted circuit allows least significant digit <2.
