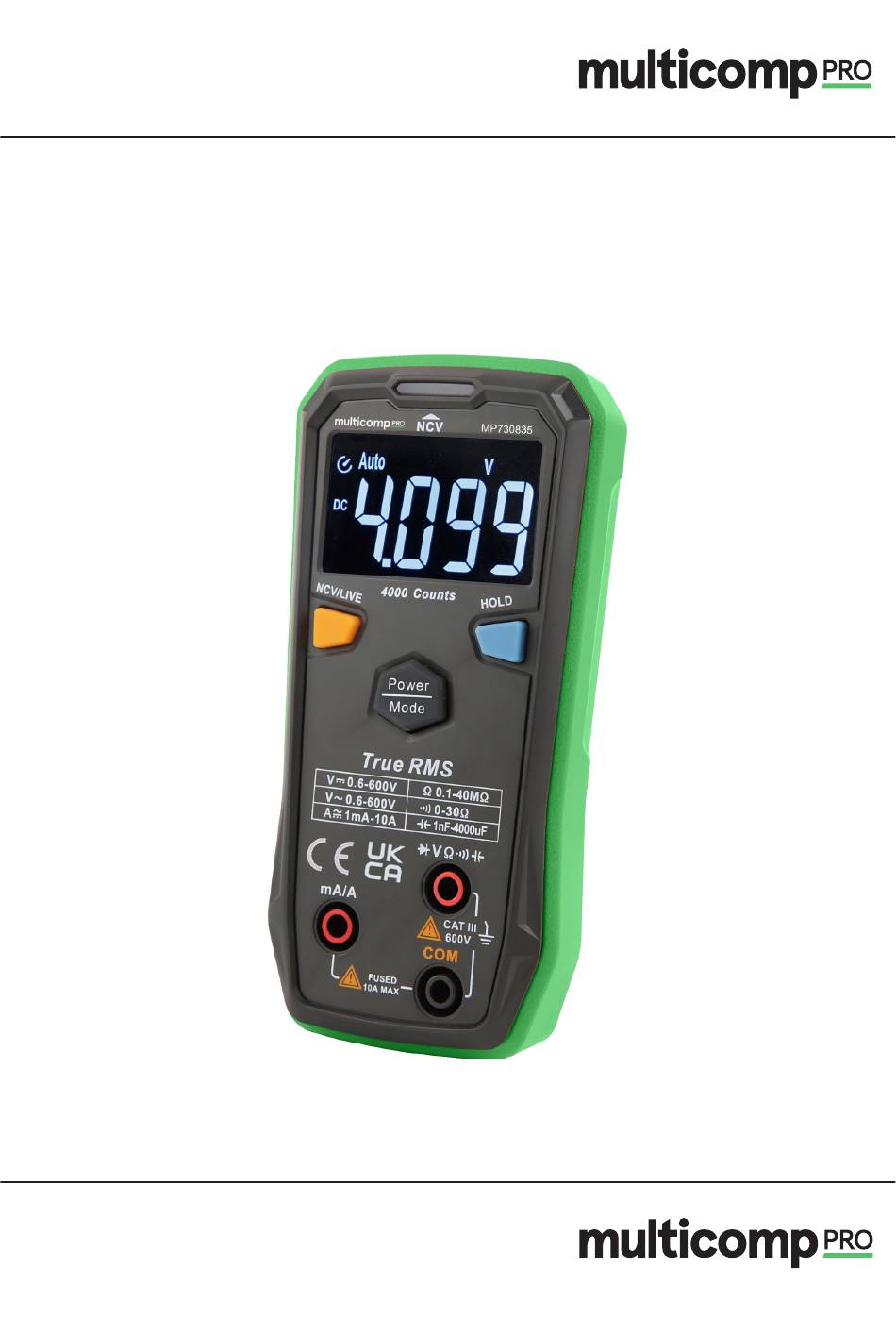

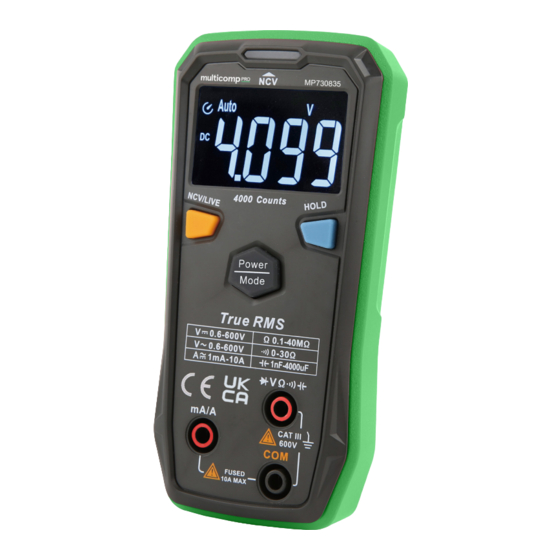

- Page 1 Smart Digital Multimeter User Manual Part Number: MP730835 Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <1> 24/08/21 V1.0...
- Page 2 1. Overview MP730835 is a smart digital multimeter, it can automatically identify the function and range to improve the operation efficiency. EBTN screen enables user to get a clear reading even working in dark environments. This product conforms to CE safety standard, which ensures users’...
- Page 3 5. Electric symbols Symbol Description Direct current Alternating current Both direct and alternating current Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION Caution, possibility of electric shock Warning or Caution Application around and removal from UNINSULATED HAZARDOUS LIVE conductors is permitted Comply with European Union standards It is applicable to test and measure circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation.
- Page 4 9 Measurement instruction 1. AC/DC voltage 1) Plug the red probe into “VΩ” socket, plug the black probe into “COM” socket. 2) Select AC/DC voltage measurement scale or intelligent range scale, connect the probe to the power source. 3) The screen displays the measurement result. Attention: •...
- Page 5 Attention: • If the capacitance is short-circuit or the capacitance value exceed the maximum range, LCD will display “OL”. • For capacitance over 4001-µF, it need some times to stabilize the reading for accuracy. • To ensure measurement accuracy,the capacitance power shall be fully discharged. High-voltage capacitance may damage the meter.
- Page 6 8. Live wire (Figure 3) 1) Switch function range to LIVE scale. 2) Plug the red probe Into “VΩ” socket, unplug the black probe from the socket (suspended),use the red probe to touch the socket or exposed wire to distinguish live wire and neutral wire. 3) If neutral wire or uncharged object is detected, “- - - -”...
- Page 7 (3) AC current Range Resolution Accuracy Overload protection 999.9mA 0.1mA ± (1.2%+3) Fused 9.999A 0.001A • The identified minimum current is about 2mA. • Virtual value of sine wave, AC frequency response is 40Hz to 400Hz. • Accuracy scope: 5% to 100% range (manual mode). •...
- Page 8 (8) Capacitance Range Resolution Accuracy Overload protection 4.000nF 0.001nF ±(4.0%+10) 40.00nF 0.01nF 400.0nF 0.1nF 4.000uF 0.001uF 600Vrms ± (4.0%+5) 40.00uF 0.01uF 400.0uF 0.1uF 4000uF 1µF ± (10%) Note: On open-circuit state, there may be remnant readings (not greater than 10 digits) for the capacitance measurement scale, that is, the measurement reading value minus this value.
- Page 9 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
