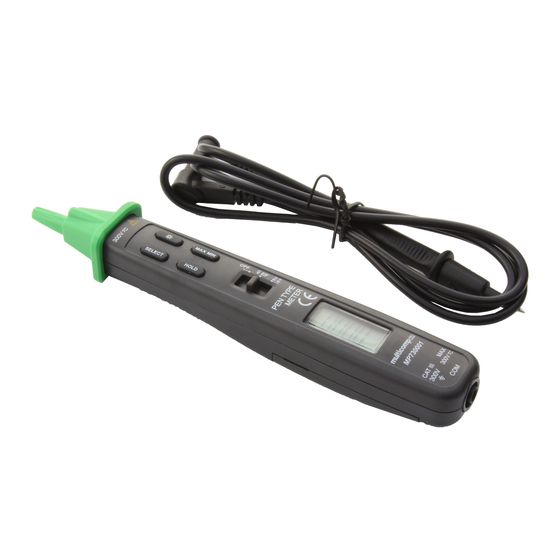

Pen Type Multimeter
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and
retain for future reference.
•
This instrument is designed and manufactured in compliance
with: lEC61010-1, CAT III 300V Pollution Degree 2 and
Double Insulation standards.
•
Check the test leads, probes and case insulation before
using. If you find any breakage or abnormality, or you
consider the device is broken, stop using the device
immediately.
•
When using the test probes, keep your fingers behind the
finger protection ring.
•
Replace damaged test leads with identical type and
electrical specifications before using the Meter.
•
Do not use or store the Meter in an environment of high
temperature, humidity, explosives, flammable materials and
strong magnetic fields.
•
Do not use the meter with the back cover open.
•
Select appropriate test range for measurements.
•
Ensure all inputs are less than the range selected otherwise
it may cause electrical shock or meter damage.
•
Do not change the range selector position during voltage
measurements.
•
Disconnect circuit power and discharge all high voltage
capacitors before testing resistance, diodes or continuity.
•
Do not apply a voltage over 300V between input terminal
and ground.
•
Take caution when working voltages are above 60V DC or
30V AC rms.
•
Do not connect the meter to voltage signals when the range
selector is on resistance, diode or continuity range.
•
When a measurement has been completed, disconnect the
testing probes from the circuit under test.
•
Replace the batteries as soon as the low battery indicator
appears on the display.
•
Remove dead batteries from the meter or if it is not going to
be used for a long time.
•
Never mix old and new batteries together, or different types
of batteries.
•
Never dispose of batteries in a fire, or attempt to recharge
ordinary batteries.
•
Before replacing the battery, turn off the meter and
disconnect all the test probes.
•
To prolong battery life turn off the meter after use.
SYMBOL GUIDE
Double Insulated
WHAT'S INCLUDED
•
Digital pen meter with battery
•
1 pair of test leads
•
Operating instructions
FUNCTIONS
Model: MP730001
Low Battery
AC Current
AC or DC
9.
10. Maximum reading
11. Capacitance
12. Diode test
13. Continuity buzzer
14. mv/V: Volts
15. Ohm.(resistance) k:kilohm; M:Megaohm.
Minimum reading
1
Ground
DC Current
Continuity
Diode
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for multicomp pro MP730001
Summary of Contents for multicomp pro MP730001

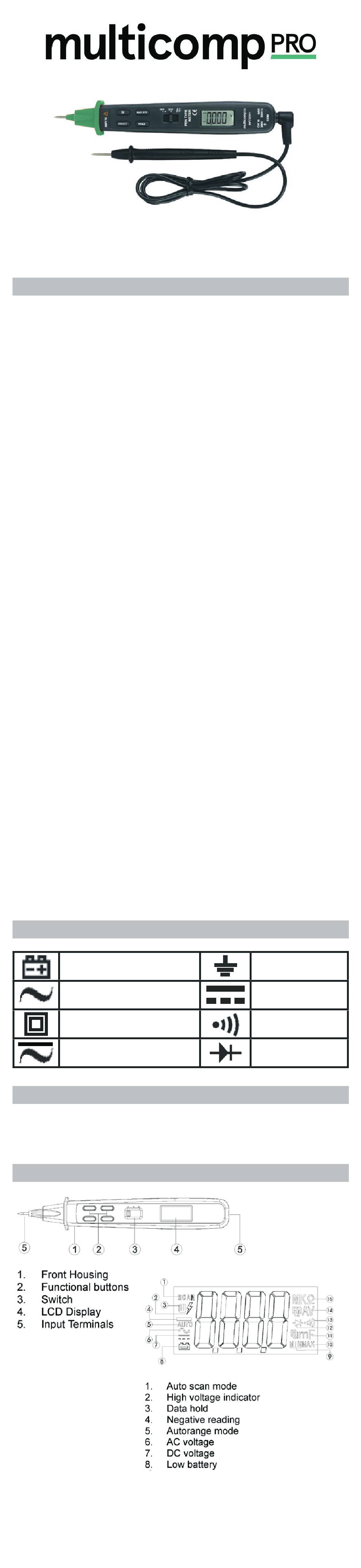

- Page 1 Pen Type Multimeter Model: MP730001 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • This instrument is designed and manufactured in compliance with: lEC61010-1, CAT III 300V Pollution Degree 2 and Double Insulation standards.
- Page 2 OPERATION • Press SELECT to switch between resistance, AC/DC voltage, continuity buzzer and diode measurement modes. Press and hold to exit “sleep” mode. • Press HOLD to enter and exit hold mode (except under auto scan mode). • Press and hold the HOLD button, the meter displays automatically holds the value currently displayed for approximately 6 secs.
- Page 3 RESISTANCE MEASUREMENT • Press SELECT to select Ω measurement mode. • Connect the test leads with the object being measured. • The measured value shows on the display. • When resistance measurement has been completed, disconnect the testing leads from the circuit under test, and remove the testing leads from the input terminals of the Meter.
- Page 4 CLEANING • Clean the meter with a clean, soft cloth. • Do not use any chemicals, abrasives or solvents that could damage the meter. • Clean the terminals using a cotton swab with mild detergent or contact cleaner, as dirt or moisture in the terminals can affect readings.
