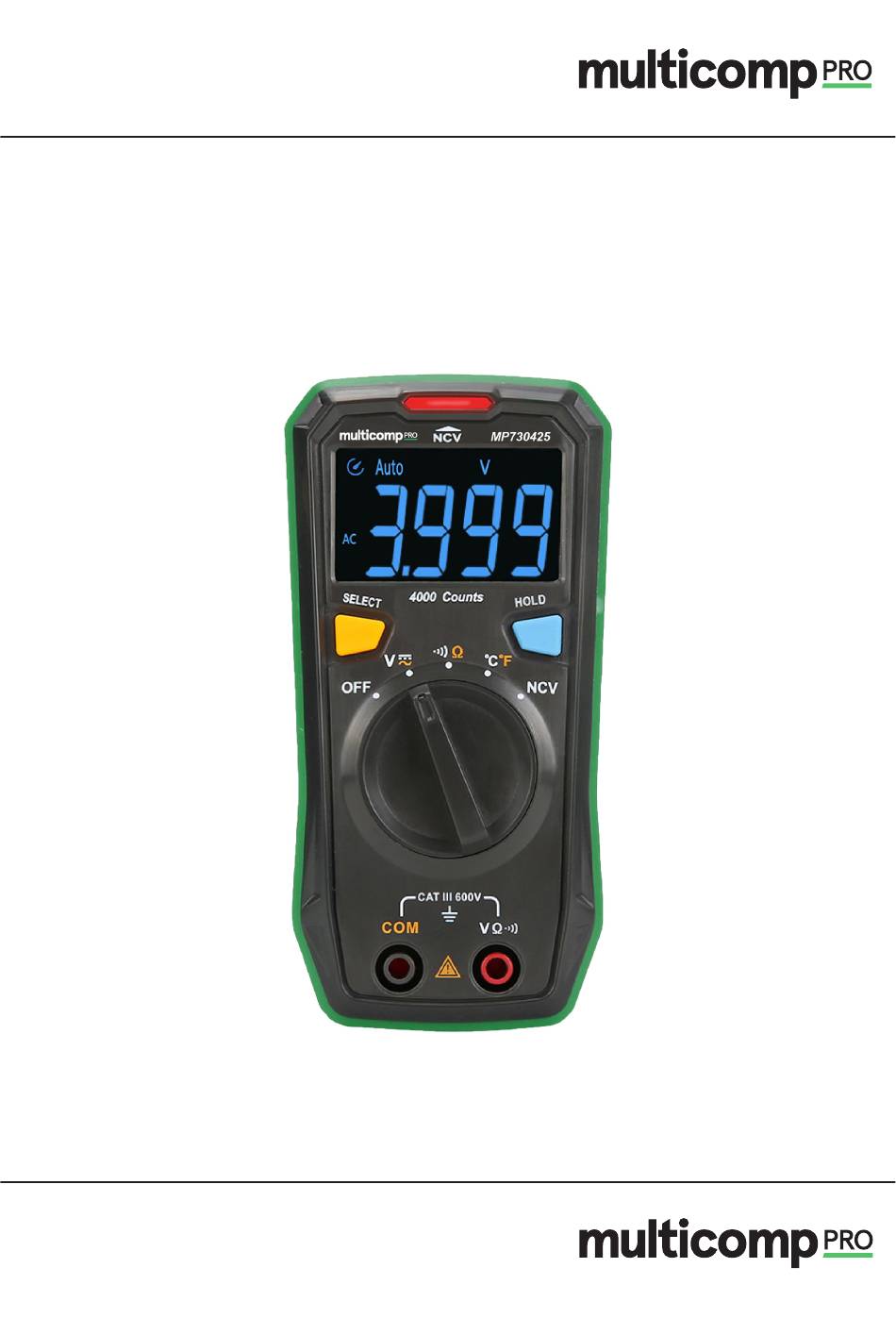

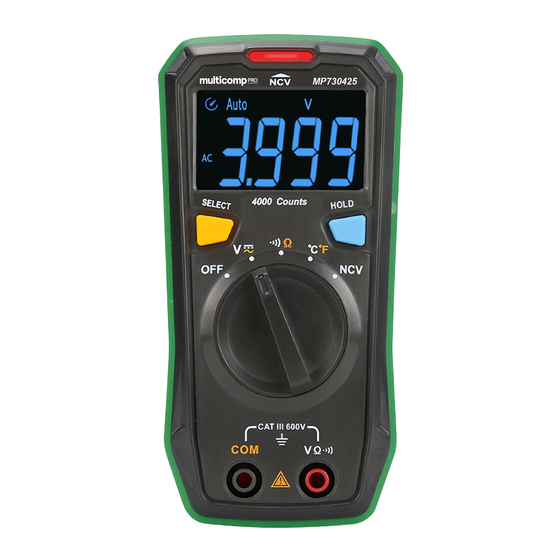

- Page 1 Residential Multimeter User Manual Part Number: MP730425 Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <1> 23/04/20 V1.0...
- Page 2 Preface Thank you for purchasing the new MP730425 residential multimeter. In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instructions. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
- Page 3 Low battery Earth(ground) TERMINAL Caution Comply with European Union standards Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION Conforms to UL STD. 61010-1, 61010-2-030, 61010-2-033, Certified to CSA STD. C22.2 NO. 61010-1, 61010-2-030, 61010-2-033 It is applicable to test and measuring circuits connected to the distribution part of the building’s CAT III low-Voltage MAINS installation.
- Page 4 4.2 Resistance Measurement (Picture 1) 1) Tum the range switch to the resistance measurement position; 2) Insert the red test lead into the “V Ω °C” jack, black into the “COM” jack, and make the probes in contact with both ends of the measured resistance (parallel connection to the resistance);...
- Page 5 4.5 Non-contact AC Electric Field Sensing (Picture 3) 1) To sense whether there is AC voltage or electromagnetic field, please tum the range switch to the NCV position; 2) Bring the front end of the meter close to the measured object to start sensing. The intensity of the electric field sensing is indicated by the LED indicator and the segment “-”...
- Page 6 Max. Measured Overload Input Function Range Resolution Accuracy Bandwidth Value Protection Impedance 400.0Ω 0.1Ω ±(1%+2) 4.000kΩ 0.001kΩ 40.00kΩ 0.01kΩ ±(0.8%+2) Resistance 21MΩ 600Vrms 400.0kΩ 0.1kΩ 4.000MΩ 0.001MΩ ±(1.2%+3) 20.00MΩ 0.01MΩ ±(1.2%+3) -40°C ~ 40°C 1°C ±4°C Centigrade 350°C 40°C ~ 300°C 1°C ±(1%+5) 600Vrms...
- Page 7 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
